CPS SCA60KTL-DO/US-480 Specifications
| Model | CPS SCA60KTL-DO/US-480 |
| Rated Output Power | 60 kW |
| Max Efficiency | 98.8% (CEC: 98.5%) |
| MPPT Channels | 3 independent MPPTs |
| Max PV Input Power | 90 kW (33 kW per MPPT) |
| Max Input Voltage | 1000V DC |
| MPPT Voltage Range | 540-850V DC |
| Max Input Current | 163.2A (54.4A per MPPT) |
| DC Inputs | 15 inputs (5 per MPPT) |
| Output Voltage | 480V AC 3-Phase |
| Max AC Apparent Power | 60/66 kVA (selectable) |
| Max Output Current | 72.2A (60kVA) / 79.4A (66kVA) |
| Operating Temperature | -22°F to 140°F |
| Ingress Protection | NEMA Type 4X |
| Warranty | 10 Years (15/20 year extensions available) |
Complete solar systems engineered for membrane or torch down roofs, standing metal seam, corrugated steel, concrete, flashed or non-flashed composition, tile, metal, and virtually any sloping roof application. Available at competitive wholesale pricing.

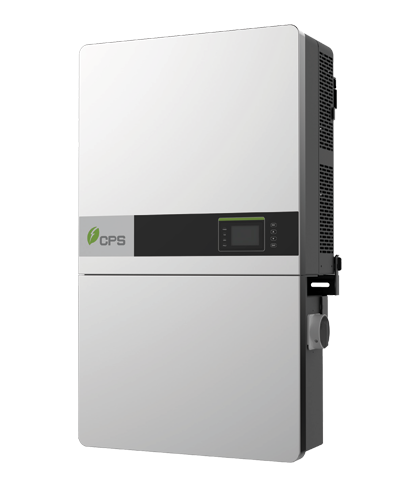

Chint CPS SCA60KTL-DO/US-480 60kW 3-Phase String Inverter
SKU CPS-SCA60KTL-60KW-480V-INVERTER
Chint CPS SCA60KTL-DO/US-480 60kW 3-Phase String Inverter
The Chint Power Systems CPS SCA60KTL-DO/US-480 delivers 60kW of three-phase power output with 98.8% peak efficiency and 98.5% CEC efficiency, engineered for large-scale North American commercial ground mount, rooftop, and carport installations. This transformerless string inverter features three independent MPPT channels with 90kW maximum PV input capacity, 1000VDC maximum input voltage, and 480VAC three-phase output designed for high-capacity commercial applications.
Includes standard wire-box design with PVRSS certification capability, UL-1699B compliant arc-fault circuit protection, and comprehensive Smart-Grid compliance with IEEE 1547-2018 and Rule 21 certification. The inverter supports versatile installation configurations with NEMA 4X outdoor rating, features 15 DC inputs across three MPPTs for maximum design flexibility, and offers optional CPS FlexOM Gateway for enterprise-level monitoring and remote diagnostics with optimized MPPT voltage range for high-power applications.
CPS SCA60KTL-DO/US-480 Inverter Features
- High-Capacity MPPT Design: Three independent MPPT channels with 33kW capacity each and optimized 540-850VDC range for large-scale commercial installations
- Peak Efficiency Performance: 98.8% peak efficiency with transformerless topology minimizes energy losses and maximizes commercial system ROI
- Substantial Oversizing Capability: 90kW DC input capacity enables 150% oversizing ratio for optimal energy production in varying weather conditions
- High-Power Configuration: 60kVA or 66kVA apparent power settings provide flexibility for high-capacity commercial electrical system requirements
- Advanced Grid Integration: IEEE 1547-2018 and Rule 21 certification with comprehensive grid support functions for utility compliance
CPS SCA60KTL-DO/US-480 Certifications
The CPS SCA60KTL-DO/US-480 meets stringent North American safety and performance standards for commercial solar installations.
Certifications and standards:
- UL 1741-SA/SB Ed. 3, UL 1699B, UL 1998, CSA-C22.2 NO.107.1-01, IEEE 1547-2018, FCC Part 15
Selectable grid standards:
- IEEE 1547a-2014, IEEE 1547-2018, CA Rule 21, ISO-NE, HECO
Smart-grid features:
- Volt-RideThru, Freq-RideThru, Ramp-Rate, Specified-PF, Volt-VAR, Freq-Watt, Volt-Watt
CPS SCA60KTL-DO/US-480 60kW 3-Phase Inverter Technical Review
The Chint Power Systems CPS SCA60KTL-DO/US-480 combines exceptional power density with optimized MPPT performance for large-scale installations. The three-MPPT architecture with 90kW DC input capacity and 540-850VDC operating range is specifically tuned for high-power commercial applications, providing optimal efficiency across a wide range of operating conditions. The selectable 60kVA/66kVA apparent power configuration enables maximum utilization in high-capacity electrical systems.
This inverter features an optimized MPPT voltage range that accommodates longer string configurations essential for large-scale installations, comprehensive safety integration with PVRSS-ready standard wire-box design, and NEMA 4X protection for extreme outdoor environments. The 150% DC oversizing capability ensures maximum energy capture potential while maintaining optimal system economics. Advanced grid support functions with IEEE 1547-2018 compliance ensure compatibility with the most stringent utility interconnection requirements, making this inverter ideal for utility-scale and large commercial solar installations requiring maximum performance and reliability.
