DEYE BOS-G40 ESS Specifications
| Cell Chemistry | LiFePO₄ |
| Total / Usable Energy | 40.96 kWh / 36.86 kWh |
| Nominal System Voltage | 409.6 V DC |
| Operating Voltage Range | 332.8 – 467.2 V DC |
| Module Specs (× 8) | 5.12 kWh • 51.2 V • 100 Ah |
| Charge / Discharge Current | 50 A recommended • 100 A nominal • 125 A peak (2 min @ 25 °C) |
| Cycle Life | ≥ 6 000 (90 % DoD, 25 °C, 0.5 C) |
| Operating Temp | Charge 0 – 55 °C • Discharge –20 – 55 °C |
| Ingress Rating | IP20 (indoor rack) |
| Dimensions (W×D×H) | 530 × 602 × 2 187 mm |
| Weight (approx.) | ≈ 1036.17 lbs |
| Certifications | UL 1973 • UL 9540A • CE • IEC 62619 • VDE 2510-50 • UN 38.3 |
Commercial Solar Carport Systems
From EV charging stations to expansive parking structures, our commercial solar carports offer innovative solutions that combine functionality with sustainable energy production. We pride ourselves on providing one of the lowest cost installed solar carport systems in the industry, backed by factory engineering and design support.
DEYE C&I BOS-G40 40kWh IP20 Indoor HV Battery Rack
SKU DEYE-BOS-G40-HV-INDOOR
DEYE BOS-G40 Small-Scale C&I ESS

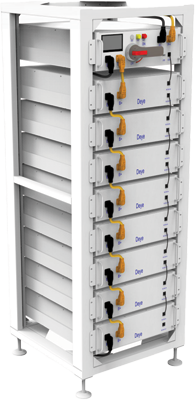

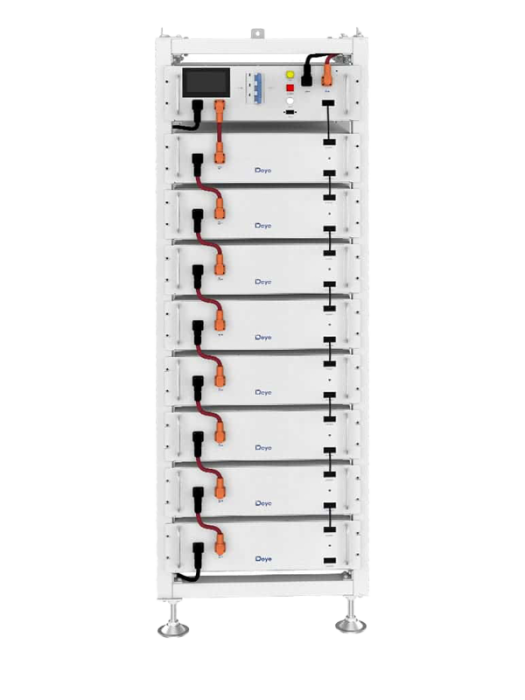

The BOS-G40 is an 8-module LiFePO₄ battery rack that supplies 40.96 kWh at a nominal 409.6 V DC. Its 333 – 468 V operating range is inside the DC window of Sol-Ark 30 kW (208 V) and Sol-Ark 60 kW (480 V) three-phase hybrids, so the rack lands on those inverters without external transformation.
A dedicated HV control box (100 A) handles isolation and pre-charge; CAN 2.0 / RS-485 deliver cell-level telemetry to site EMS platforms.
DEYE BOS-G40 Energy Storage System Features
- Certified LiFePO₄ safety: UL 9540A-tested pack with multi-level BMS protection.
- 8-drawer 19″ rack: compact footprint; front service—no rear clearance needed.
- 409 V nominal bus: matches Sol-Ark 30 k/60 k DC input for direct coupling.
- HV box & comms: 100 A breaker, pre-charge, CAN 2.0 / RS-485 diagnostics.
- −20 °C to 55 °C operation: maintains output across warehouse and telecom-hut climates.
DEYE BOS-G Series Warranty & Lifecycle
The DEYE Bos-G Series comes with a 10-year warranty and is rated for ≥ 6 000 cycles at 90 % DoD (25 °C), delivering a decade of day-in/day-out service without capacity anxiety. LiFePO4 chemistry and a –20 °C – 55 °C operating window keep performance steady in server rooms, warehouses, or desert enclosures alike.
Deye BOS-G40 Energy Storage System Review

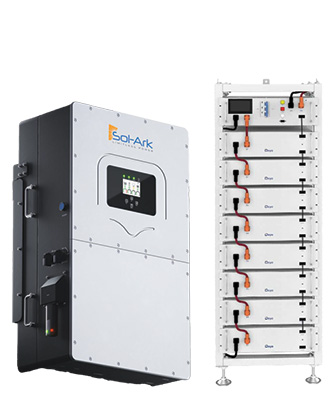

The BOS-G40 supplies just over 36 kWh of usable energy—enough to trim utility peaks, back up critical circuits, or support a small bank of EV chargers without taking up much floor space. Its eight LiFePO₄ modules come in a single 19-inch rack, so installation is straightforward and fast. Built-in monitoring keeps every cell balanced and reports temperature, voltage, and current in real time, while the sealed steel enclosure protects the battery from dust and everyday knocks. Backed by a 10-year warranty and a 6,000-cycle life rating, the BOS-G40 offers dependable, long-term storage for commercial facilities that need a practical mid-size battery solution.
DEYE BOS-G40 Assembly Guide
