DEYE BOS-G60 ESS Specifications
| Cell Chemistry | LiFePO₄ |
| Total / Usable Energy | 61.44 kWh / 55.29 kWh |
| Nominal System Voltage | 614.4 V DC |
| Operating Voltage Range | 499 – 700 V DC |
| Module Specs (× 12) | 5.12 kWh • 51.2 V • 100 Ah |
| Charge / Discharge Current | 50 A recommended • 100 A nominal • 125 A peak (2 min @ 25 °C) |
| Cycle Life | ≥ 6 000 (90 % DoD, 25 °C, 0.5 C) |
| Operating Temp | Charge 0 – 55 °C • Discharge –20 – 55 °C |
| Enclosure Type | IP20 (indoor rack) |
| Dimensions (W×D×H) | 530 × 602 × 2 187 mm |
| Weight (full rack) | ≈ 1240 lbs |
| Certifications | UL 1973 • UL 9540A • UN 38.3 • CE • IEC 62619 • VDE 2510-50 |
Commercial Solar Carport Systems
From EV charging stations to expansive parking structures, our commercial solar carports offer innovative solutions that combine functionality with sustainable energy production. We pride ourselves on providing one of the lowest cost installed solar carport systems in the industry, backed by factory engineering and design support.
DEYE C&I BOS-G60 60kWh IP20 Indoor HV Battery Rack
SKU DEYE-BOS-G60-HV-INDOOR
DEYE BOS-G60 Small-Scale C&I ESS

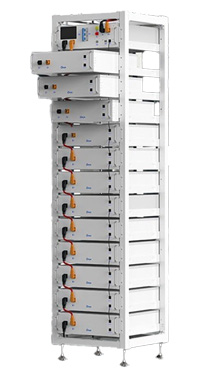

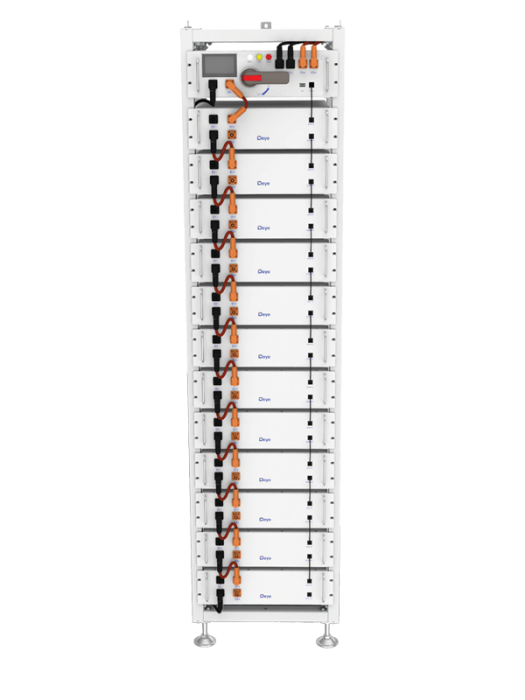

The BOS-G60 is DEYE’s largest high-voltage rack in the BOS-G family, packing 61.44 kWh of LiFePO₄ storage into a standard 19-inch enclosure. Twelve 5.12 kWh drawers wire themselves in series to deliver a nominal 614 V DC, making the cabinet a direct match for most 208 / 480 V three-phase hybrid inverters.
A dedicated HV control box (100 A) and CAN 2.0 / RS-485 interface provide system-level protection, monitoring, and straightforward integration into commercial and light-industrial power architectures.
DEYE BOS-G60 Energy Storage System Features
- LiFePO₄ safety: thermally stable cells plus multi-layer BMS protection meet UL 9540A.
- Modular 19-inch rack: twelve hot-swappable 5 kWh drawers for easy service and future upgrades.
- High-voltage output: 614 V nominal (499-700 V range) pairs directly with most 208/480 V hybrid inverters.
- Smart BMS & HV box: real-time balancing, 120–750 Vdc bus, CAN 2.0 / RS-485 communications.
- Wide-climate operation: delivers full-spec discharge down to –20 °C; derates gracefully above 45 °C.
DEYE BOS-G Series Warranty & Lifecycle
The DEYE Bos-G Series comes with a 10-year warranty and is rated for ≥ 6 000 cycles at 90 % DoD (25 °C), delivering a decade of day-in/day-out service without capacity anxiety. LiFePO4 chemistry and a –20 °C – 55 °C operating window keep performance steady in server rooms, warehouses, or desert enclosures alike.
Deye BOS-G60 Energy Storage System Review

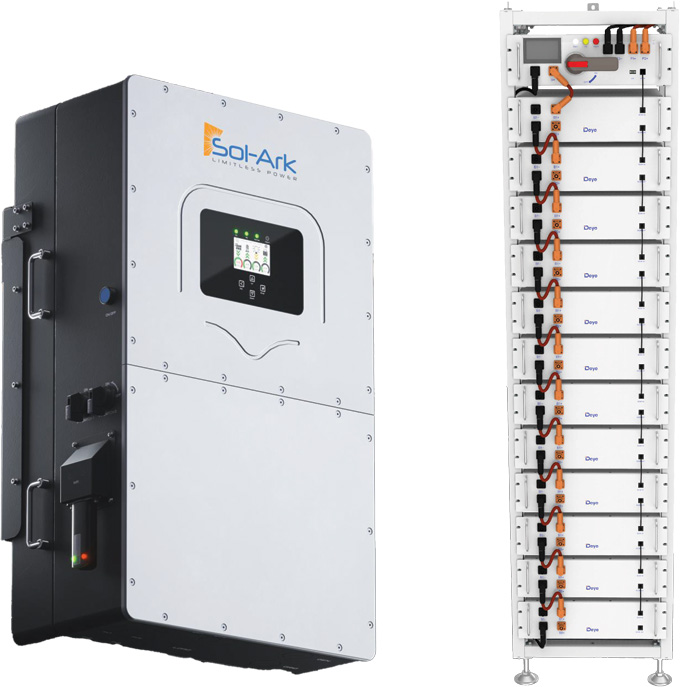

The BOS-G60 brings utility-scale voltage into a single indoor rack. Twelve LiFePO₄ modules provide 55 kWh of usable energy with less than 3 % self-discharge in six months, so standby capacity stays ready. CAN/RS-485 ports report every cell’s status, and the HV box’s 100 A breaker keeps wiring simple. With UL 9540A and IEC 62619 already on the label, the cabinet clears most plan reviews without additional fire enclosures. For sites needing a compact 60 kWh block—data closets, retail demand-charge projects, or light-industrial backup—the BOS-G60 offers high voltage, long life, and fast installation in one certified package.
DEYE BOS-G60 Series Installation Guide
Different solar panels, PV mounts, storage, & inverter systems available at low wholesale prices
Contact Us Today for sales, quantity discounts and expert reviews for the DEYE BOS-G60 ESS For Commercial Storage
