DEYE GE-FH60 ESS Specifications
| Battery Chemistry | LiFePO₄ |
| Nominal Output Power / UPS Power | 60000 W |
| Energy Configuration | 61.4 kWh |
| AC Output Frequency and Voltage | 50 / 60Hz; 3L / N / PE 277 / 480Vac |
| AC Output Rated Current | 72.3 A |
| Max. charging / discharging efficiency | 89% |
| Installation Style | Floor Mounted |
| Cycle Life (@ 25 °C, 0.5 C) | ≥ 6,000 cycles (EOL 70 %) |
| Operating Temperature | -30 - 60 (>45°C derating) |
| Enclosure Rating | IP55 (indoor/covered-outdoor) |
| Dimensions (W×D×H) | 735 x 1050 x 2250 mm |
| Weight | ~2094.4 lbs |
| Certifications | FCC, UL1973, UL9540A, UN38.3 |
Commercial Solar Carport Systems
From EV charging stations to expansive parking structures, our commercial solar carports offer innovative solutions that combine functionality with sustainable energy production. We pride ourselves on providing one of the lowest cost installed solar carport systems in the industry, backed by factory engineering and design support.

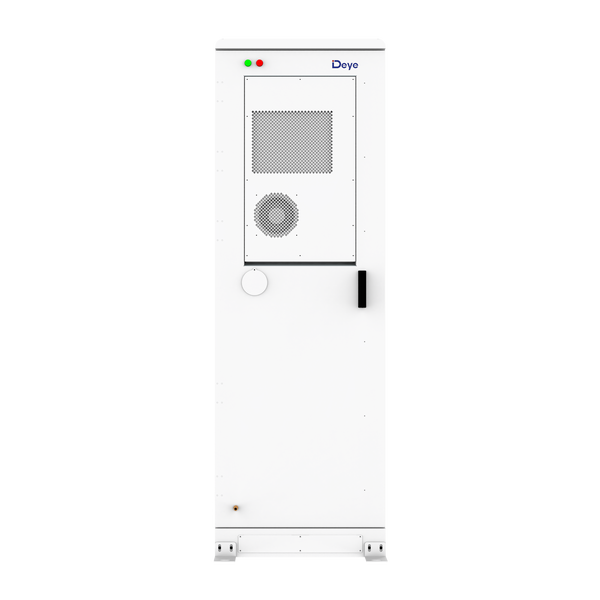

DEYE C&I GE-FH60 60kWh IP55 Outdoor rated HV Battery Rack
SKU DEYE-GE-FH60-HV-OUTDOOR
DEYE GE-FH60 Small-Scale C&I ESS

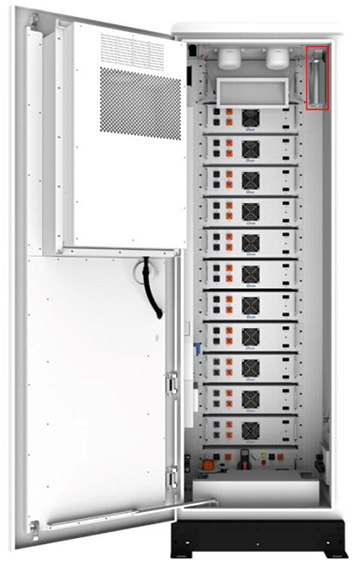

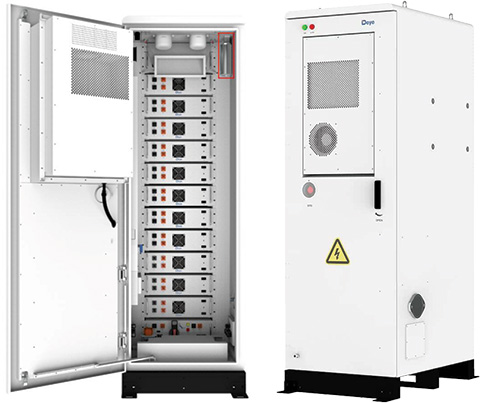

The DEYE GE-FH60 is a 12-module LiFePO₄ cabinet that delivers 61.44 kWh at a nominal 614 V DC. Engineered for small-scale commercial and industrial storage, it combines an integrated EMS/Inverter/BMS stack, IP55 steel enclosure, and multi-sensor fire-protection package.
Designed for 24 / 7 operation, the GE-FH60 runs from -30 °C to +60 °C and ships with combustible-gas, smoke, and temperature sensors plus aerosol fire suppression. The cabinet interfaces directly with Sol-Ark 30k and 60k three-phase hybrid inverters, and supports black-start and off-grid modes.
DEYE GE-FH60 ESS Rack Features
- Total-protection architecture: gas, smoke & temperature sensors trigger active exhaust and aerosol fire suppression.
- Long-life LiFePO₄ cells: ≥6 000 cycles at 90 % DoD ensure decade-long service.
- Integrated EMS / inverter / BMS: provides black-start, off-grid, and power-redundancy functions out of the box.
- Scalable design: parallel up to six cabinets per string; multiple strings to 3.6 MWh.
- Wide-climate reliability: rated –30 °C to 55 °C in an IP55 enclosure for indoor or sheltered-outdoor sites.
Future Proof Capacity with the DEYE GE-FL60

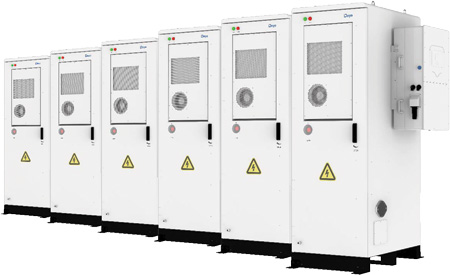

Start with a single 61 kWh / 30 kW cabinet, add up to six in the same DC string for 360 kWh and 60 kW, then AC-parallel as many as ten strings to reach 3.6 MWh and 300 kW (600 kW if you choose the 60 kW inverter option). Each new cabinet is auto-discovered by the built-in EMS, so you can scale storage and power in plug-and-play blocks without redesigning the system or adding external controllers.
Deye GE-FH60 ESS Review
The GE-FH60 delivers 55 kWh of usable energy in a single IP55 cabinet, covering peak-shaving, back-up, or PV-self-consumption tasks where higher bus voltage is required. The built-in control stack eliminates external combiner gear, and UL 9540A certification simplifies permitting. Expansion is linear: add cabinets, set addresses, and the EMS balances the new capacity making GE-FH60 a straightforward, code-ready solution for C&I storage projects. Continuous gas, smoke, and temperature sensors tie into an active exhaust fan and an on-board aerosol fire-suppression cartridge, so safety boxes get ticked without a separate vault. The inverter, EMS, and dual-bus BMS are housed in the same frame, giving the system black-start and true off-grid capability straight from the factory.
DEYE GE-FH60 and GE-FL60 Unpacking and Installation Video
Different solar panels, PV mounts, storage, & inverter systems available at low wholesale prices
Contact Us Today for sales, quantity discounts and expert reviews for the DEYE GE-FH60 ESS For Commercial Storage
