FranklinkWH aGate X Specifications

Model Number	AGT-R1V2-US
Nominal AC Voltage	120/208V, 120/240V, 60 Hz
Grid Input OCPD	200A Max
aPower OCPD	100A Max
Solar Input OCPD	80A Max
Backup Load OCPD	200A Max
Busbar Rating	280A
Maximum Supply Fault Current	22 kA
Dimensions (H × W × D)	31.5 in × 21.7 in × 6.3 in
Weight	38.6 lb (17.5 kg)
Enclosure Type	NEMA Type 3R
Operating Temperature	-4°F to 122°F (-20°C to 50°C)
Warranty	12-year limited

Residential Roof Mount Kit Prices

Complete roof mounted solar systems engineered for durability and ease of installation. Our premium kits include IronRidge XR rail systems, compatible with all our solar panels and available for all roof types, with special options for tile, flat, and metal roofs at competitive wholesale pricing.

View Latest Roof Mount System Prices

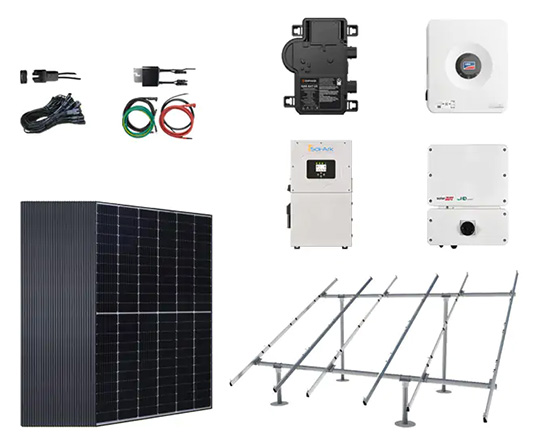

Residential Ground Mount Kit Prices

Premium ground-mounted solar systems featuring IronRidge racking systems and high-efficiency panels from REC and QCells. Complete kits include inverter options from Enphase, SMA, Sol-Ark, and SolarEdge at competitive wholesale pricing, perfect for DIY installations or professional contractors.

View Latest Ground Mount System Prices

FranklinWH aGate Intelligent Energy Management System

Name: FranklinWH aGate Intelligent Energy Management System
SKU: FRANKLINWH-AGATE-EMS-ACC

SKU FRANKLINWH-AGATE-EMS-ACC

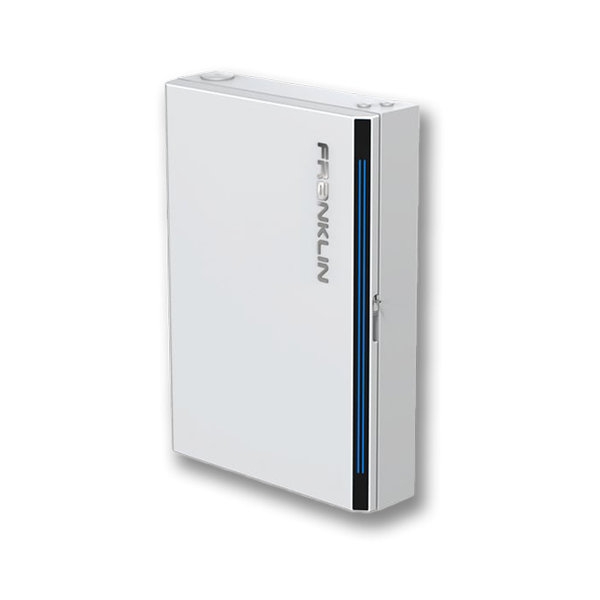

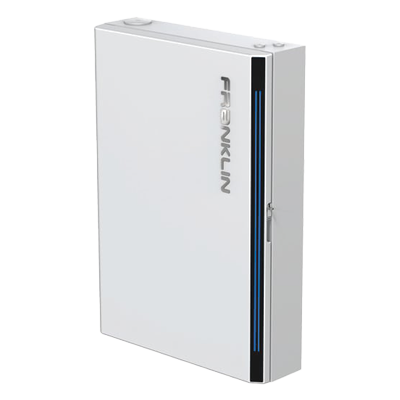

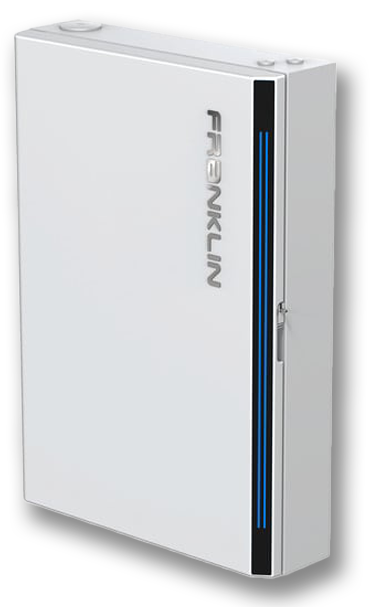

The aGate X Energy Management Center

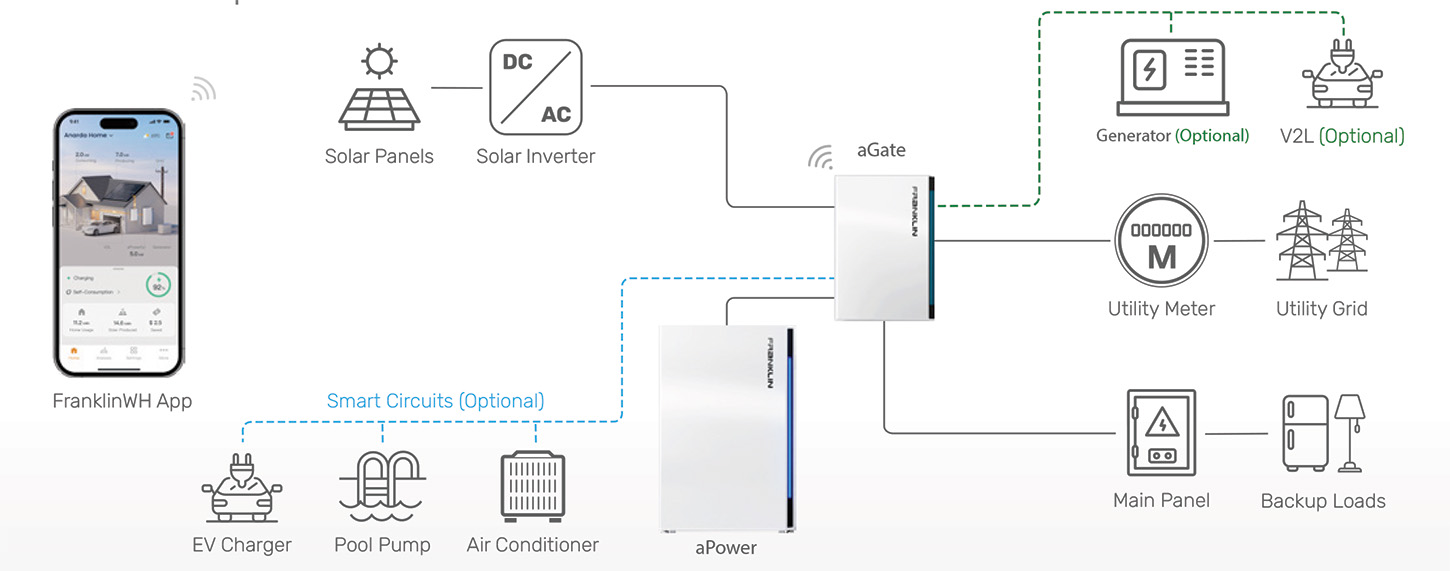

The aGate serves as the intelligent control center for your entire home energy ecosystem, expertly interconnecting and managing solar, grid, batteries, and standby generators to optimize electricity usage. This sophisticated energy management system seamlessly transitions between power sources during outages, ensuring critical appliances remain operational without interruption, while its smart algorithms maximize daily energy efficiency and cost savings during normal operation.

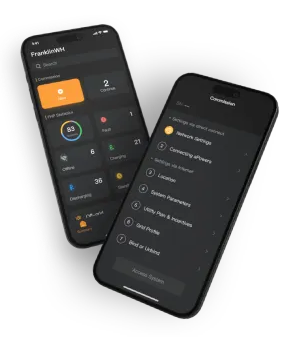

Featuring a robust 280A busbar that eliminates the need for expensive main panel upgrades in most homes, the aGate offers flexible installation options at the service entrance, connected to the main load center, or as a load center itself. With optional Smart Circuits and Generator Modules, the system can independently control specific high-demand appliances and integrate backup generators, providing comprehensive control over your home's energy flows through the intuitive FranklinWH mobile app.

FranklinWH aGate X Features

Intelligent Power Management: Expertly coordinates multiple energy sources including solar, battery, grid, and generator, automatically optimizing for energy independence or cost savings based on your preferences and utility rate structures.
Seamless Backup Transition: Switches from grid to backup power in milliseconds during outages, ensuring sensitive electronics and critical appliances experience no disruption while maintaining full home comfort.
Universal Inverter Compatibility: Integrates seamlessly with existing solar systems from all major manufacturers, making retrofit installations straightforward without requiring complete system overhauls.
Smart Load Management: Optional Smart Circuits Module enables individual control over specific high-power appliances, allowing automatic or manual scheduling during off-peak hours for maximum utility savings.
Expanded Power Sources: Supports both standby and portable generators for extended backup during prolonged outages, with optional V2L (Vehicle-to-Load) capability to utilize your EV as an additional power source.

System Scalability and Applications

The aGate controller is designed to scale with your changing energy needs, supporting up to 15 aPower battery units for a total capacity of 225 kWh, while its modular design accommodates additional solar capacity through the aPbox. This flexibility makes the system ideal for various applications, from standard residential installations to larger homes with substantial power demands, small businesses requiring uninterrupted power, or properties in areas with frequent grid instability.

Attachments Details

aGate X Intelligent Energy Management Controller Review

The aGate represents the central intelligence of the complete FranklinWH ecosystem, working in perfect harmony with the aPower 2 battery and optional aPbox for solar expansion. We've received excellent feedback from customers regarding the system's seamless backup transitions and the convenience of the mobile app for monitoring and control. For homeowners serious about energy management and seeking a future-proof solution that grows with their needs, the aGate's comprehensive functionality and 12-year warranty make it a top recommendation for discerning solar-plus-storage installations.

The aGate X's intuitive energy management capabilities consistently impress, particularly its ability to intelligently balance multiple power sources while prioritizing battery storage during peak rate periods. The 280A busbar capacity is especially valuable, as it eliminates the need for expensive main panel upgrades that are often required with competing systems.
