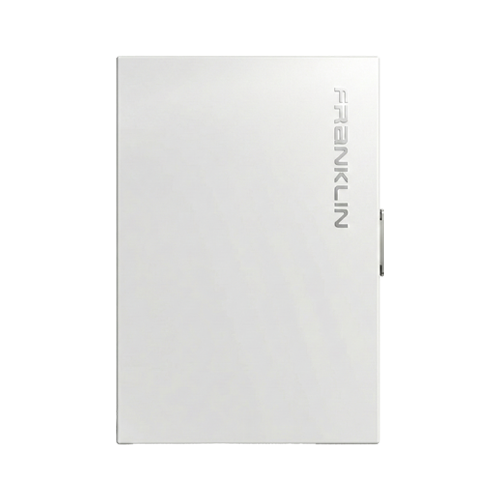

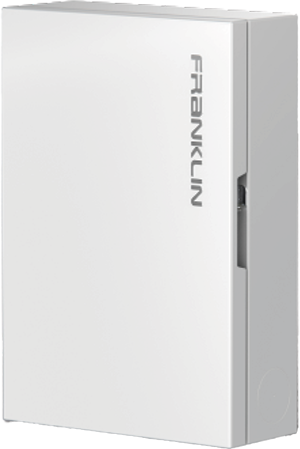

FranklinWH aHub System Expansion Module

The FranklinWH aHub is a professional-grade system expansion module engineered for flexible integration of multiple energy sources and distributed solar arrays. Supporting up to three AC-coupled photovoltaic arrays with 24 kW total capacity, the aHub excels in Net Energy Metering applications and solar retrofit installations where existing arrays require integration with new energy storage systems. The configurable circuit architecture accommodates four 240V or eight 120V Smart Circuits with programmable scheduling and remote control capabilities.

The aHub provides unified control of solar, generator, and vehicle-to-load (V2L) sources through the FranklinWH App. The expansion module supports solar connections up to 330 feet away from the main system, overcoming roof space limitations and enabling ground-mount or detached structure installations.

FranklinWH aHub Expansion Unit Features

• Maximum Solar Integration: Three independent AC-coupled PV inputs support up to 24 kW total capacity with automatic overproduction protection for optimal renewable energy utilization

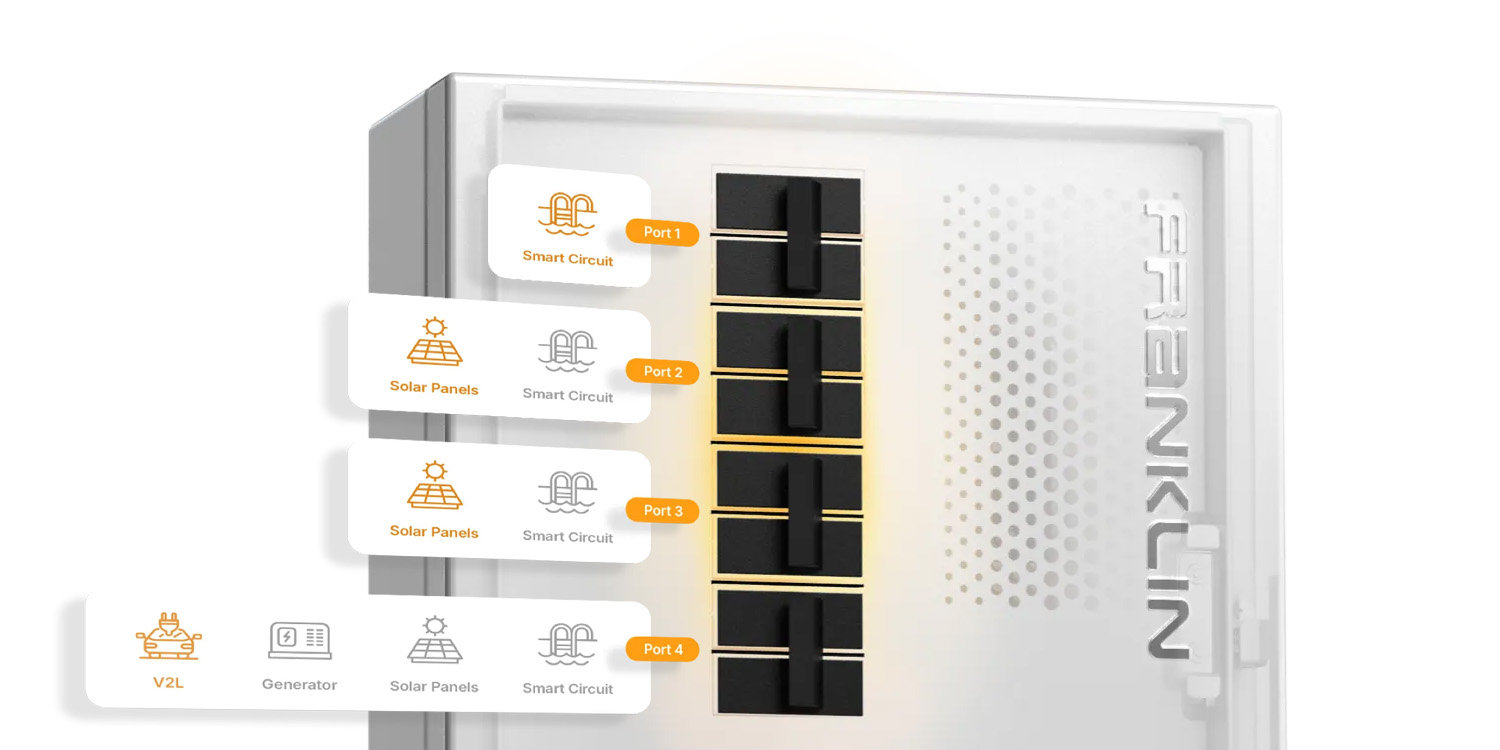

• Intelligent Load Management: Four 240V Smart Circuits (configurable as eight 120V) enable scheduled and real-time prioritization of essential loads during extended outages
• Multi-Source Backup Resilience: Integrated support for standby/portable generators and V2L-capable electric vehicles provides diverse backup power options beyond solar and battery
• Unified System Control: Centralized energy management through FranklinWH App eliminates multiple platforms, enabling remote control, real-time monitoring, and dynamic optimization
• Retrofit-Friendly Architecture: Seamless integration with existing solar installations and FranklinWH systems simplifies upgrades without replacing functional equipment

FranklinWH aHub Certifications

• UL 1741 - Inverters, Converters, Controllers and Interconnection System Equipment for Use With Distributed Energy Resources
• UL 1741 PCS - Power Conversion System certification for distributed energy resources

• UL 3141 - Multifunction Residential Circuit Protective Devices certification
• CSA C22.2 No. 107.1-16 - General Use Power Supplies for Canadian market compliance
• California Proposition 65 - Consumer health disclosure compliance
• RoHS Directive 2011/EU - Restriction of Hazardous Substances environmental compliance
• FCC Part 15 Class B - Electromagnetic interference limits for residential equipment
