FranklinWH aPower S 15kWh Hybrid Home Battery System

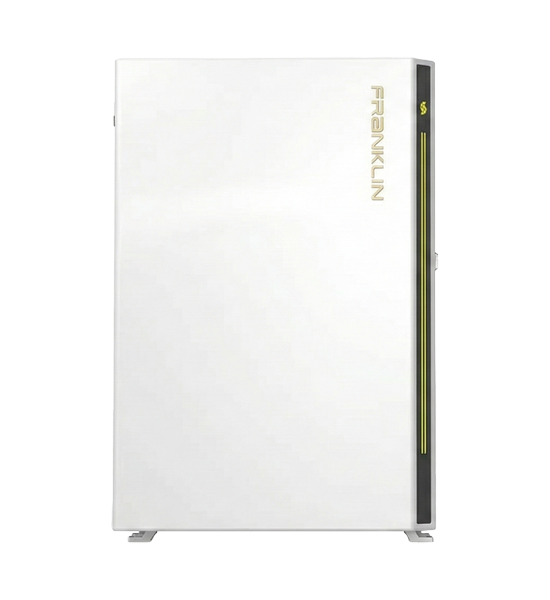

The FranklinWH aPower S Lithium Battery

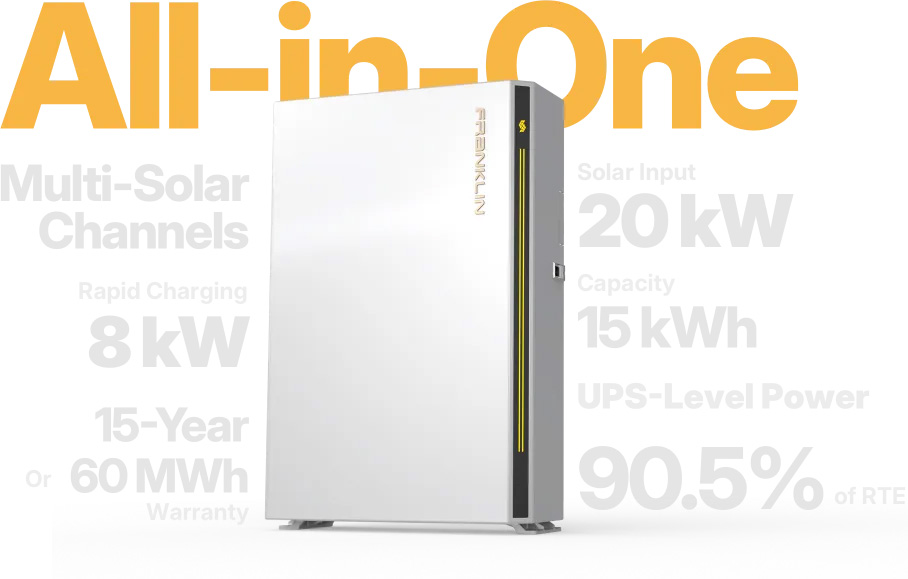

The FranklinWH aPower S is a hybrid battery energy storage system integrating 15 kWh of usable lithium iron phosphate capacity with a built-in 11.5 kW inverter and four independent MPPT charge controllers. This all-in-one architecture supports direct solar connection with up to 20 kW DC input capacity while maintaining 90.5% round-trip efficiency for grid-to-load applications. The system delivers 11.5 kW continuous output with 15 kW peak capability, suitable for whole-home backup in residential installations.

TThe aPower S features front wiring access for simplified installation and IP67-rated enclosure for outdoor deployment. Four built-in MPPTs with 15A capacity each accommodate multiple solar array orientations and complex roof layouts without external combiners. The system operates from -4°F to 131°F with integrated thermal management including heating blankets for cold-climate reliability.

FranklinWH aPower S Features

• Direct Solar Integration: Four independent MPPT charge controllers with 20 kW total capacity eliminate external charge controller equipment.
• High Power Density: 11.5 kW continuous output with 15 kW surge capability from single 15 kWh unit provides whole-home backup including HVAC systems, well pumps, and major appliances.
• Flexible System Scaling: AC-coupled parallel connection supports up to 15 units (225 kWh total) per aGate controller with incremental capacity expansion as energy requirements grow without system reconfiguration
• Simplified Installation: Front wiring access and all-in-one integrated design reduce installation complexity and labor time compared to separate battery and inverter component systems
• Revenue-Grade Monitoring: Built-in AC metering with ±0.5% accuracy (ANSI C12.20) provides precise energy tracking for time-of-use optimization and utility interconnection requirements

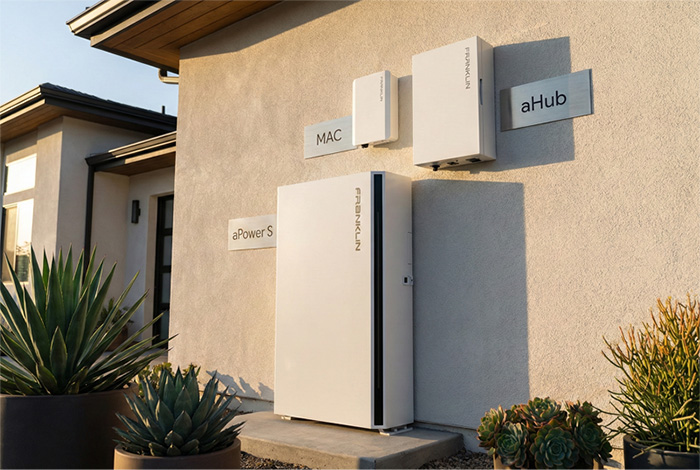

FranklinWH Meter Adapter Controller (MAC)

The FranklinWH Meter Adapter Controller (MAC) enables simple system interconnection by directly connecting to the meter socket adapter (MSA) and the electrical meter, avoiding panel overhauls and reducing installation time & costs.

• Integrates directly with electrical meter to bypass panel rewiring requirements
• Predictive load management to forecast upcoming energy needs
• Regulates voltage and frequency levels to protect sensitive appliances & electric vehicle charging equipment
• Delivers seamless, instant power transfer during blackouts, without any interruption or flicker.
• 15-year warranty coverage
