HD Hyundai NF(BK) Series TOPCon 435W

Model Number HiN-T435NF(BK)
Power Output 435W
Module Efficiency 22.28%
Maximum Load Capacity 5,400 Pa front and rear
Operating Temperature Range -40°C to +85°C
Dimensions 67.8 x 44.6 x 1.2 inches
Weight 50.01 lbs
Frame Material Anodized aluminum alloy
Product Warranty 25 Years
Performance Warranty 30 Years with 87.4% output guaranteed
Cell Type N-Type TOPCon, 108 half-cut bifacial cells
Glass Type 2.0mm semi-tempered solar glass with anti-reflective coating
Residential Solar Carport Structures - Now Available at Solar Electric Supply

Complete Residential Carports & Pergolas

Check out our selection of top quality Solar Pergolas, Pavilions, & solar carports, endless customization options available!

HD Hyundai HiN-T435NF(BK) N-Type TOPCon 435W Solar Module

SKU HD-HYUNDAI-NF-BK-SERIES-435W-TOPC-RESIDENTIAL
Hyundai Logo

HD Hyundai NF(BK) Series 435W Module

The HD Hyundai HiN-T435NF(BK) solar module delivers a base power output of 435W with 22.28% efficiency, with potential for additional power generation through its bifacial technology. Under optimal conditions, the module can achieve up to 482W. This N-Type TOPCon module features an all-black design that integrates well with residential rooftops. The module combines modern aesthetics with proven performance and comprehensive warranties, offering homeowners a reliable solution for solar energy production.

HD Hyundai HiN-T435NF(BK) Module Benefits

  • Superior Performance - Leveraging advanced N-Type TOPCon technology to achieve 22.28% efficiency, maximizing power generation on limited roof spaces.
  • Exceptional Durability - Engineered with dual-glass construction and rigorous testing to withstand extreme weather conditions, including 5,400 Pa snow and wind loads.
  • Industry-Leading Warranty - Backed by a comprehensive 25-year product warranty and 30-year performance guarantee, ensuring long-term peace of mind.
  • Premium Aesthetics - Full-black design with sophisticated anti-reflective coating creates a sleek, modern appearance that enhances your home's visual appeal.
  • Enhanced Reliability - Features advanced bifacial cell technology and superior temperature coefficient for consistent performance in real-world conditions.

HD Hyundai N-Type TOPCon Technology

Hyundai N-Type TOPCon Cell Chart

The HD Hyundai NF(BK) Series modules utilize N-Type TOPCon (Tunnel Oxide Passivated Contact) cell technology. This advanced cell structure features a tunnel oxide passivation layer and metal grid on both sides of the n-type c-Si wafer. TOPCon technology offers improved efficiency over traditional PERC cells, achieving 22.53% module efficiency.

HD Hyundai Logo

HD Hyundai NF(BK) Series 435W Solar Module Review

The HiN-T435NF(BK) modules demonstrate strong technical capabilities backed by extensive certification testing. These modules have passed rigorous environmental testing including salt mist corrosion (IEC 61701), ammonia resistance (IEC 62716), and sand/dust exposure (IEC 60068-2-68) certifications. The dual-glass construction with 2.0mm semi-tempered glass on both sides provides enhanced durability compared to traditional backsheet designs. Temperature performance testing shows a -0.30%/K coefficient, which helps maintain efficiency in warm climates. The modules include genuine Stäubli MC4 connectors and a 3-part junction box with IP68 rating for reliable long-term operation. Load testing confirms structural integrity up to 5,400 Pa for both front and rear loading scenarios, suitable for areas with heavy snow or high wind conditions. The linear power guarantee of 87.4% after 30 years is supported by comprehensive PID (Potential Induced Degradation) testing under IEC 62804 standards.

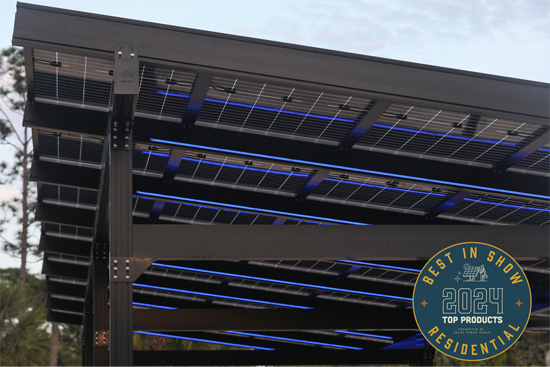

Hyundai NF(BK) Series Modules are Compatible with Our Customizable Residential Solar Carports & Pergolas

QCells q.tron 430W blk Solar Module

Complete Residential Solar Carports & Pergola Systems Under One Roof

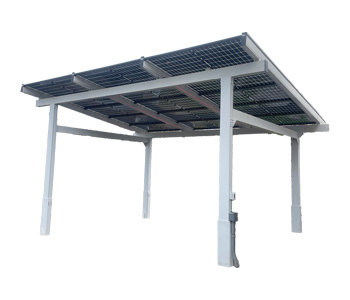

Aluminum Carports

Aluminum Carports

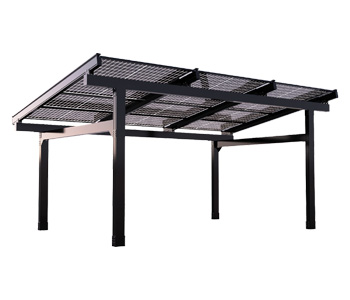

Pergola Structures

Solar Pergolas & Pavilions

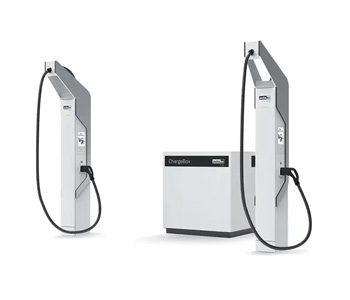

EV Charging Stations
