Kyocera solar panel specifications
Kyocera Model Number KD145 SX-UFU
STC Rating 145.0 Watts
PTC Rating N/A
Open Circuit Voltage (Voc) 22.3 Volts
Short Circuit Current (Isc) 8.78 Amps
Frame Color Black
Power Tolerance +10/-0%
Area 10.77 ft²
Weight 27.6 lbs.
Length 59.06 in.
Width 26.3 in.
Height 1.81 in.

Class 1 Division 2 Hazardous Location Gas Wellhead

Class 1 Division 2 Solar Systems

Great for remote oil field monitoring applications or any application requiring that C1D2 certification. This Kyocera 12 volt nominal solar panel is also available in our complete line of packaged Class I Division 2 solar systems. Contact us for expert advice.

Kyocera KD145 SX-UFU Solar Panel



Kyocera KD145 SX-UFU Solar Panel - C1D2 Certified

• The black frame is anodized and UV stabilized
• Perfect for 12 volt battery charging
• Class 1 Division 2 Hazardous Location Certified
• Supported by major solar panel mount manufacturers
• Easily accessible grounding points on all four corners for fast installation
• Standard junction box

The KD145 SX-UFU solar panel is reliable

• Proven superior field performance
• Generous +10/-0% positive power tolerance
• Only module manufacturer to pass rigorous long-term testing performed by TÜV Rheinland

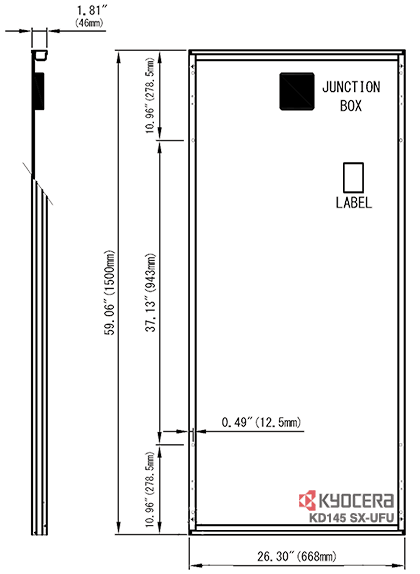

Kyocera KD145 SX-UFU Dimensions

Kyocera KD145 SX-UFU review

Kyocera KD 145 SX-UFU Series

Kyocera KD145 SX-UFU Solar Panel Qualifications and Certifications

UL1703 Certified and Registered, UL Fire Safety Class C
Applicable to hazardous location, Class I Div. II
NEC2008 Compliant, IEC 61215/61730, and ISO 14001
IEC61701 Ed.2 Severity 6 (Salt Mist Corrosion Test)


Contact us for wholesale pricing, solar module system design or reviews for the Kyocera KD 145 SX-UFU solar panel.
