MAPPS Class 1 Division 2 solar panels and enclosures

MAPPS™ Class 1 Div 2 Solar Panel Systems

Featuring Class 1 Division 2 Solar Panels & Enclosures
system with Class 1 Div 2 Solar Panels

Remote solar power applications using Class 1 Division 2 solar panels and enclosures:
Gas Well Head Monitoring, Pipeline Monitoring, SCADA RTU, Offshore Platforms, Hazardous Lighting, Tank Gauge, Tank Farm, Flare Stack Ignition Systems, Gas Detection, Wireless Data Security Systems, Remote Monitoring, Cathodic Protection and Flow Monitoring.

PROUDLY MADE IN THE USA

12 VDC Class 1 Div 2 Solar Panel Systems
Class 1 Div 2 solar panels 50W 99AHr system
50W 99AHr
12V
50W 198AHr 12V Class 1 Division 2 solar panel system
50W 198AHr
12V
90W C1D2 system
90W 99AHr
12V
Class I Division 2 enclosure 90W 198AHr system
90W 198AHr
12V
150W 198AHr 12V Class 1 Div 2 enclosure system
150W 198AHr
12V
Class I Division 2 enclosure system 150W 99AHr 12V
150W 396AHr
12V
300W 198AHr C1D2 solar panels system
300W 198AHr
12V
300W 4-battery 12V Class I Div 2 solar panels system
300W 396AHr
12V
24 VDC Class 1 Div 2 Solar Panel Systems
Class 1 Div 2 solar panels 80W
80W 99AHr
24V
C1D2 solar panels with 120 watt 2 battery system
120W 99AHr
24V
120W 198AHr 24V Class 1 Division 2 solar system
120W 198AHr
24V
190W 99AHr 24V system with Class 1 Div 2 solar panels
190W 99AHr
24V
C1D2 solar panel with 190W 99AHr battery system
190W 198AHr
24V
300W 99AHr 12V Class 1 Div solar panels system with 2 batteries
300W 99AHr
24V
300W system with 2 Class 1 Div 2 solar panels
300W 198AHr
24V
380W 24 VDC C1D2 solar system
380W 198AHr
24V
large 570W 24V Class I Div 2 solar panels system
570W 198AHr
24V

Conforms to:
ISA STD 12.12.01 & UL STD 508A

Intertek Certified to:
CSA STD C22.2 Nos. 213 & 14 Class 1 Division 2 Hazardous Locations

MAPPS

Modular Autonomous Photovoltaic Power Supply

Class 1 Div 2 Series for Hazardous Locations Group C & D Features and Review

Cathodic protection
Cathodic protection
wireless VSAT communitaction
Wireless VSAT communication
gas detection
Gas detection
oil pipeline
Oil pipeline
offshore oil drilling platform
Offshore drilling platform
tank farm monitoring
Tank farm monitoring
oil and gas wellhead
Oil or gas wellhead
flow monitoring
Flow monitoring

What does a Class I Div 2 certified system mean to you?

SES MAPPS Class 1 Div 2 System Documentation

View FileSES MAPPS Class 1 Div 2 System Brochure

View FileSES MAPPS Class 1 Div 2 Design & Pricing Guide

It means that the world's most trusted name in testing, Intertek, has independently certified these systems as safe for use in the highest level of hazardous locations like potentially explosive where there is the possible presence of flammable gases, vapors or liquids. This system line is the first solar power system in the world to meet Intertek's most rigorous hazardous location safety standard.

Using these systems insures - no matter what your location or application - that you can safely and reliably generate electricity to power your equipment anywhere the sun shines, even under the most hazardous conditions. These systems are the finest complete stand-alone solar electric systems designed for industrial, oil gas & mining and telecom applications that can be approved for Class I, DIV. 2 hazardous locations. This important feature allows a complete Class I Div II solar system to be placed directly adjacent to the pipeline or wellhead, saving installation time and materials.

Contact us toll-free at 877-297-0014 for a free sizing and quotation for your project.

MAPPS Remote Area Photovoltaic Systems for Class 1 Div 2 Hazardous Locations

Solar Electric Supply

SES has the experience you need for your project.

For two decades, the Solar Electric Supply team has been providing solar energy solutions to customers just like you, and using our talent and experience to provide a quality solution. We offer a full range of services – from a broad array of products to engineering and design/build capabilities. Our full document control ensures access to your diagrams and records, and our QA/QC procedures ensure a quality system is delivered.

Solar Electric Supply Provides

• Excellent Support
• Superior Integration
• Well recognized, High-quality Products
• Speed of Delivery
• Engineered to NEC, IEEE, and Industry Standards
• Troubleshooting Services

Easy Deployment

Most Class 1 Div 2 solar systems and components are stocked for quick delivery.

Enclosures are factory assembled with control panels pre-wired and tested for easy and quick field deployment. (Batteries may be field installable.)

Class 1 Div 2 solar panels

Typical Class 1 Div 2 System Applications

• Gas wellheads
• Gas pipelines
• Tank Farms
• Oil refineries
• Offshore oil platforms
• Air monitoring
• SCADA RTU
• Wireless Data
• Gas Detection
• Cathodic Protection

Typical Products Powered by MAPPS

• Control Microsystems
• Vinson Process
• Sierra Wireless
• Industrial Video & Control
• Rosemount
• Vinson Process
• Dialight
• Rockwell Automation
• Siemens
• Foxboro

easy C1D2 deployment

Only the best Class I Division 2 rated components are used in our MAPPS™ systems.

Class 1 Division 2 solar panel systemSystem with 3 Class 1 Div 2 solar panels

• High efficiency UL Listed, Class 1 Div 2 solar panels with 20+ year warranty
• Heavy-duty aluminum pole mounting structure with stainless steel hardware
• Solar array Class I Div 2 approved conduit wiring harness kit
• NEMA 3R durable powder-coated white aluminum battery control and component enclosure, lockable, includes sticker on inside door with specific Class 1 Div 2 enclosure certification
• Sealed gel cell, maintenance free, deep-cycle, non-spillable batteries, UL Recognized
• Advanced PWM Charge Control, Class I Div 2, with low voltage load protection and temperature compensated battery charging
• Extra room for your equipment - each system package has roughly 12 cu/in of extra space in the electronics compartment. There is plenty of room for you to add your own Class 1 Div 2 rated SCADA, radio, GPS, telemetry, VSAT, Wi-Fi or other electronic equipment.
• CSA Approved Class I, Div 2 hazardous location safety rating

Class 1 Div 2 Solar Panels

Class 1 Div 2 certification
UL 1703, Class I Div 2 Group ABCD, Class C Certification on SES Class 1 Div 2 solar panels

C1D2 PV Module Features

• Listed to UL1703 3rd Edition & ULC ORD-C1703-01 Standard for Safety by CSA Module Fire Performance Type 4 (for USA) or Class C fire rating (for Canada)
• Approved by CSA according to CAN/CSA C22.2 No. 213-17
• ISO 9001 factory certification ensures that our manufacturing facilities use proven manufacturing and quality control processes.
• Certified to UL1703 3rd Edition and ULC 1703-01
• Certified for UL 12.12.01-Ninth Edition for use in Class I, Division 2, Groups ABCD Hazardous (Classified)
• Junction box IP65 with 4 terminal screw connection block; accepts PG 13.5, M20 13mm (½”) conduit, or cable fittings accepting 6-12mm diameter cable. Terminals accept 2.5-10mm2 (8-14 AWG) wire

50W Class 1 Div 2 solar panel
SES 450J 50W 12V
80W C1D2 solar panel
SES 80J-B 80W 24V
90W Class 1 Division 2 solar panel
SES 490J 90W 12V
150W Class I Div 2 solar panel
SES 150J 150W 12V
190W Class I Division 2 solar panel
SES 4190J 190W 24V

The Best Class 1 Div 2 Enclosures in the Industry!

C1D2 enclosure
Class 1 Div 2 enclosure

SES MAPPS Class I Div 2 Enclosure Features

• Enclosures are finished with a reflective bright white polyester urethane powder coat for aesthetics and to minimize internal and external heat gain
• Standard enclosures are manufactured with .125” 5052-H32 aluminum. All die marks and welds are sanded smooth for safety. NEMA 3R UL 508 Certified Enclosures for Class 1 Division 2 hazardous locations, and UL Listed MAPPS systems
• 2-4” U Bolts or SS clamping hardware included for with pole mount enclosures for rapid pole attachment.
• Separate control/load NEMA 4X compartment is weather proof and dustproof featuring a sealed design with door gaskets
• NEMA 3R enclosures are provided with integrated filtered louvers located to promote convective air flow through the enclosure to reduce internal temperatures and remove gasses. Filters are located over the louvers to keep out dust and insects. The filters are removable for cleaning or replacement.
• Stainless steel continuous hinge for doors and lids.
• Two punched 1/2” electrical conduit holes for easy solar input and load output liquid tight conduit connections.

Learn more about SES MAPPS Class 1 Division 2 enclosures.

MAPPS Class I Division 2 Approved Solar Control Panels

SES MAPPS C1D2 Control Panel Features

• Certified to Class 1, Division 2, Groups A, B, C & D
• Control back plates are pre-assembled, tested and installed on standoffs inside the enclosure.
• Manufactured in a Certified ISO 9001 Facility
• Environmentally Optimized for High Reliability & Increased Battery Life
• Hazardous Locations - Class 1, Div. 2 Groups A-D
• CE, RoHS and REACH Compliant
• UL 1604/ANSI/ISA 12.12.01-2000 (USA) and CSA C22.2 No. 213-M1987 (Reaffirmed 2004) (CANADA) Listed
• UL 1741 (with terminal cover) Listed*
• FCC Title 47 (CFR), Part 15 Subpart B for Class B Device 100% solid state
• Fully encapsulated in epoxy potting
• Low Voltage Load Disconnect
• Green charging/Red LVD indicators
• Temperature compensation

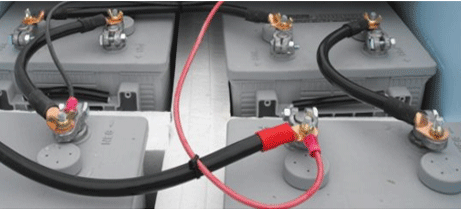

SES MAPPS Sealed Gel Cell Batteries

Solar Gel Battery Features

• Minimal maintenance, never needs water
• Long cycle life in solar applications
• UL Recognized ULR
• Shock absorbent thick wall polypropylene cases
• Classified as non-hazardous, non-restricted for surface transport safe for air transportation (IATA A-67) Non-spillable
• Recombination reaction (recombinant battery) prevents escape of hydrogen and oxygen gases normally lost in flooded lead-acid batteries

MAPPS Class 1 Div 2 Solar Panel System Price Sheet

12 Volt Systems

SES PART # DESCRIPTION LIST PRICE
MAPPS 50-99-12-C1D2 MAPPS 50 Watt Solar System, 12V 99 Amp-Hr Battery, D2 Enclosure, Intertek CID2 Rating $4,671.00
MAPPS 50-198-12-C1D2 MAPPS 50 Watt Solar System, 12V 198 Amp-Hr Battery, D2 Enclosure, Intertek CID2 Rating $5,228.00
MAPPS 90-99-12-C1D2 MAPPS 90 Watt Solar System, 12V 99 Amp-Hr Battery, D2 Enclosure, Intertek CID2 Rating $4,793.00
MAPPS 90-198-12-C1D2 MAPPS 90 Watt Solar System, 12V 198 Amp-Hr Battery, D2 Enclosure, Intertek CID2 Rating $5,350.00
MAPPS 150-198-12-C1D2 MAPPS 150 Watt Solar System, 12V 198 Amp-Hr Battery, D2 Enclosure, Intertek CID2 Rating $5,768.00
MAPPS 150-396-12-C1D2 MAPPS 150 Watt Solar System, 12V 396 Amp-Hr Battery, D4 Enclosure, Intertek CID2 Rating $7,419.00
MAPPS 300-198-12-C1D2 MAPPS 300 Watt Solar System, 12V 198 Amp-Hr Battery, D2 Enclosure, Intertek CID2 Rating $6,674.00
MAPPS 300-396-12-C1D2 MAPPS 300 Watt Solar System, 12V 396 Amp-Hr Battery, D4 Enclosure, Intertek CID2 Rating $8,325.00

24 Volt Systems

SES PART # DESCRIPTION LIST PRICE
MAPPS 80-99-24-C1D2 MAPPS 80 Watt Solar System, 24V 99 Amp-Hr Battery, D2 Enclosure, Intertek CID2 Rating $5,360.00
MAPPS 120-99-24-C1D2 MAPPS 120 Watt Solar System, 24V 99 Amp-Hr Battery, D2 Enclosure, Intertek CID2 Rating $5,554.00
MAPPS 120-198-24-C1D2 MAPPS 120 Watt Solar System, 24V 198 Amp-Hr Battery, D4 Enclosure, Intertek CID2 Rating $7,204.00
MAPPS 190-99-24-C1D2 MAPPS 190 Watt Solar System, 24V 99 Amp-Hr Battery, D2 Enclosure, Intertek CID2 Rating $5,866.00
MAPPS 190-198-24-C1D2 MAPPS 190 Watt Solar System, 24V 198 Amp-Hr Battery, D4 Enclosure, Intertek CID2 Rating $7,516.00
MAPPS 300-99-24-C1D2 MAPPS 300 Watt Solar System, 24V 99 Amp-Hr Battery, D2 Enclosure, Intertek CID2 Rating $6,562.00
MAPPS 300-198-24-C1D2 MAPPS 300 Watt Solar System, 24V 198 Amp-Hr Battery, D4 Enclosure, Intertek CID2 Rating $8,212.00
MAPPS 380-198-24-C1D2 MAPPS 380 Watt Solar System, 24V 198 Amp-Hr Battery, D4 Enclosure, Intertek CID2 Rating $8,540.00
MAPPS 570-198-24-C1D2 MAPPS 570 Watt Solar System, 24V 198 Amp-Hr Battery, D4 Enclosure, Intertek CID2 Rating $10,052.00



Contact us toll-free at 877-297-0014 for a free sizing and quotation for your project.
