Kyocera KD250GX-LFB2 Solar Panel

Availability: Call For Availability

Features

kyocera

The Kyocera KD250GX-LFB2 - Black Frame, Sleek Look
• The black frame is anodized and UV stabilized
• Supported by major mounting structure manufacturers
• Easily accessible grounding points on all four corners for fast installation
• Proven junction box technology with 12 AWG PV wire to work with transformerless grid-tie inverters
• Quality locking MC4 plug-in connectors to provide safe and quick connections

The KD250GX-LFB2 solar panel is reliable
• Proven superior field performance
• Tight power tolerance
• Only module manufacturer to pass rigorous long-term testing performed by TÜV Rheinland

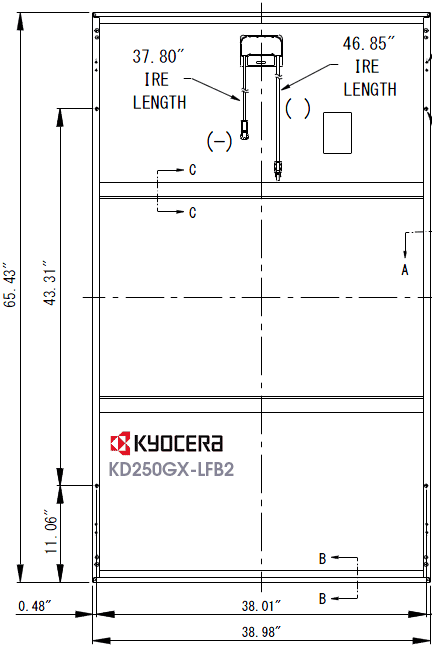

Kyocera KD250GX-LFB2 Dimensions

Kyocera KD250GX-LFB2 solar panel

Kyocera KD250GX-LFB2 Solar Panel

Double click on above image to view full picture

Zoom Out
Zoom In

Specifications

solar by kyocera
Kyocera Model Number KD250GX-LFB2
STC Rating 250.0 Watts
PTC Rating 223.7 Watts
Open Circuit Voltage (Voc) 36.9 Volts
Short Circuit Current (Isc) 9.09 Amps
Frame Color Black
Power Tolerance -3 / +5%
Area 17.7 ft²
Weight 44.1 lbs.
Length 65.43 in.
Width 38.98 in.
Height 1.8 in.

Manufacturer Specification Sheets

View FileKyocera KD250GX-LFB2 Specifications    Size: (303.5 KB)
View FileKyocera KD 200-60 F Series Install Guide    Size: (241.63 KB)

Details

Kyocera KD 200-60F Series

Kyocera KD250GX-LFB2 Solar Panel Qualifications and Certifications

UL Listing: QIGU.E173074
NEC 2008 Compliant, UL 1703, and ISO 14001
UL1703 Certified and Registered, UL Fire Safety Class C, CEC, FSEC.

solar module info

Record High Performance, Record Low Price
As a pioneer with over 35 years in solar module research Kyocera repeatedly achieves world record solar cell efficiencies. Kyocera proves to be a value leader in solar panel system technologies.

Complete systems with Kyocera KD250GX-LFB2 solar modules available!

Solar Electric Supply not only supplies Kyocera solar panels at a discount price, we also have wholesale commercial solar systems and discount residential solar systems.

Systems include grid-tie inverter, roof or ground mounting system, module interconnect cables, disconnects and breakers. We also have support by our friendly knowledgeable staff that is here to help with your Kyocera solar panel system questions.

Kyocera solar panel system

Contact us for discount pricing, solar module system design or reviews for the Kyocera KD250GX-LFB2 black frame solar panel.
