SES MAPPS Battery Box Enclosure
Model Number AL-PAD-4-8G8DN
Battery Compatibility

Supports 4 Group 8D batteries.

4x 8G8D
4x 8A8D
4x 8G4D

Mounting Method Pedestal base for pad mounting
Enclosure Construction NEMA 3R white powder-coated aluminum w/ stainless steel hinges and louvered vents
Dimensions 24"H, x 49.25"W x 29.25"D
Enclosure Weight 127 lbs.
Warranty 1 year limited warranty
Origin USA
Warranty 1 year limited warranty
List Price $2,624.00
Includes white powder coat

MAPPS AL-PAD-4-8G8DN Pad-Mounted NEMA 3R Battery Enclosure

remote solar battery box sun
battery enclosures for remote off-grid solar panel systems

MAPPS off-grid solar system battery enclosures logo
Solar System Battery Enclosures

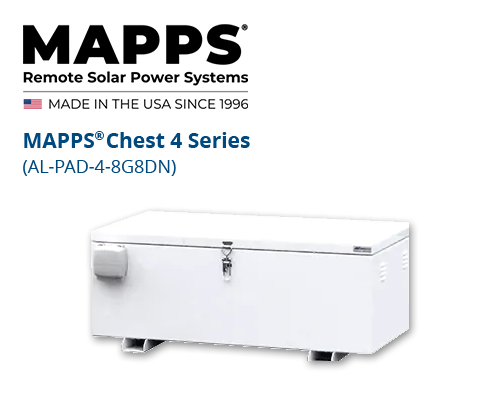

MAPPS AL-PAD-4-8G8DN Pad-Mounted NEMA 3R Battery Enclosure

large pad-mounted group 8D battery box
This pad-mounted battery box enclosure holds up to 4 Group 8D batteries.

Industrial Strength · Durable Pad-Mounted Design

The insulated chest style outdoor enclosure of the MAPPS AL-PAD-4-8G8DN NEMA 3R Battery & Control Enclosure features white polyester powder coated aluminum and filtered vents. A pedestal base is included for secure mounting.

This weatherproof battery box holds up to four Group 8D sealed 12 volt batteries. A charge controller may be mounted and pre-wired on a DIN rail with solar/battery/load breakers.

very large battery box

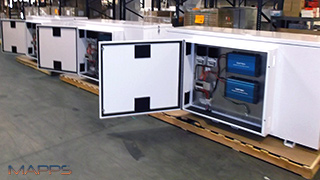

Larger enclosures available.

Solar Applications Powered Worldwide

No matter what extreme environment on Earth: arctic, desert, coastal or tropical, this energy storage environmental enclosure is ideal for countless solar battery powered applications.

Complete solar battery systems can power: weather stations, traffic signals, street lights, intelligent transportation systems, LED obstruction lighting, well site automation, environmental monitoring, UPS battery backup systems, emergency battery kits, process control and solar instrumentation.

AL-PAD-4-8G8DN Battery Enclosure Details

draw latch
enclosure box lockable latch
Two draw-latches are lockable for up to a 3/8" max shackle.
  • NEMA 3R design with filtered louver vents
  • White powder coated aluminum
  • Stainless steel hinged doors
  • 2 padlockable draw latches w/ 3/8" max. shackle
  • Pedestal concrete pad mount
  • Chest style top opening hinged lid
  • Heavy-duty, extra-thick Styrofoam insulation
  • Conduit knockouts for easy connections of grid, solar or loads
  • Can accommodate: 4X 8G8D, 4X 8G4D, 4X 8A8D, 4X 8A4D, 4X 12SC265 batteries.

MAPPS Battery Enclosure Options and Upgrades

pad mounted solar system contractor
  • DC to AC inverters pre-wired
  • DC to DC converters pre-wired
  • SunSaver or ProStar controllers pre-wired
  • Polyphaser surge protection for radios
  • DIN Rail for equipment loads
  • Additional DC load breakers
  • POE's pre-wired and installed on backplate
pole mounted wireless utility meter battery solar system

Over 20 Years of Remote Off-Grid Solar Experience

Solar Electric Supply's years of PV expertise allow us to offer a wide variety of time-tested heavy-duty aluminum outdoor rated battery enclosures for remote industrial applications including solar and UPS.

We offer enclosures for single and multiple batteries, solar controllers, DC to AC inverters, DC to DC Converters, POE's and customer supplied loads.

Contact us with your solar powered application today. OEM pricing available.

Contact us toll-free: (877) 297-0014

MAPPS AL-PAD-4-8G8DN Pad-Mounted Battery Box Enclosure Review

4 group 8D solar battery enclosure review

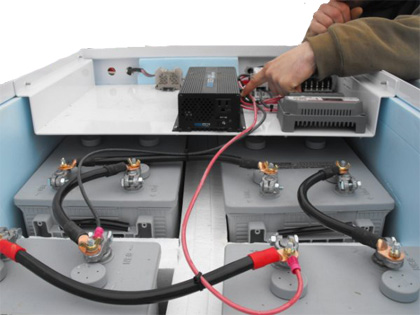

4 Group 8D batteries fit perfectly with 2 TriStar charge controllers wired to a load-center w/ breakers,

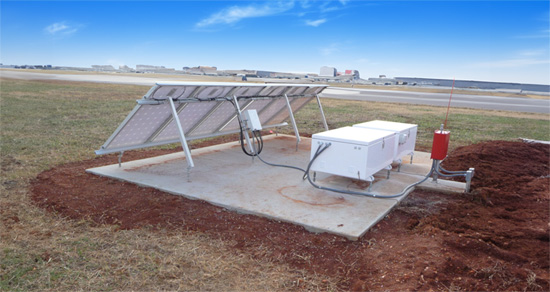

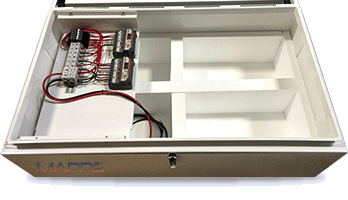

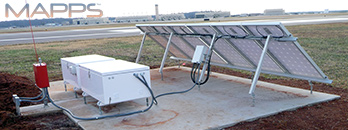

4 battery pad mount box with charge controllers only 4 battery pad mounted box for airfield
