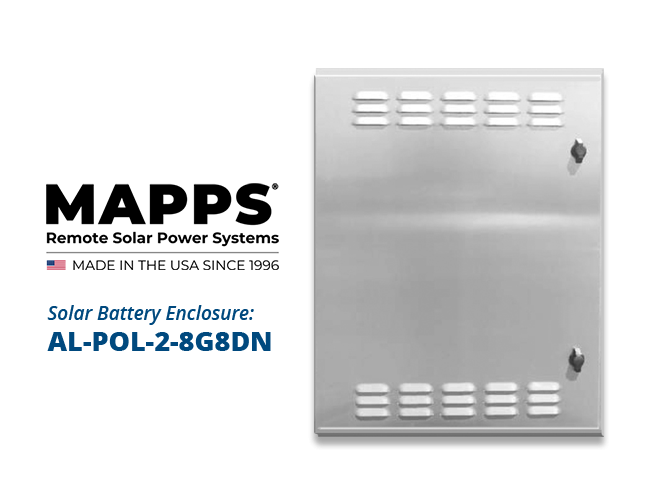

MAPPS AL-POL-2-8G8DN Solar Battery Box Enclosure

AL-POL-2-8G8DN Enclosure Specifications

Model	AL-POL-2-8G8DN
Battery Compatibility	1-2x 8G8D 1-2x 8G4D 3-6x 8G31 batteries
Optional NEMA Rating	UL NEMA 3R Certification
Construction	Milled aluminum with stainless steel hinges
Dimensions	30.2"H × 24.7"W × 14.5"D
Enclosure Weight	42 lbs
Mounting Method	Standard pole mount (up to 12") or wall flange
Ventilation	Filtered louver vents
Security	Dual compression latches, one lockable
Battery Chemistry	Sealed VRLA, gel, AGM, LiFePO4
Origin	USA manufactured
Warranty	1 Year Limited

MAPPS Remote Off-Grid Solar Power Systems

MAPPS^® Remote Solar Power Systems

SES MAPPS^® Remote Solar Systems deliver reliable off-grid power for critical applications like SCADA monitoring, emergency response, and telecommunications. These complete turnkey packages combine premium solar panels, sealed batteries, and protective enclosures for years of maintenance-free operation.

Learn More about SES MAPPS^®

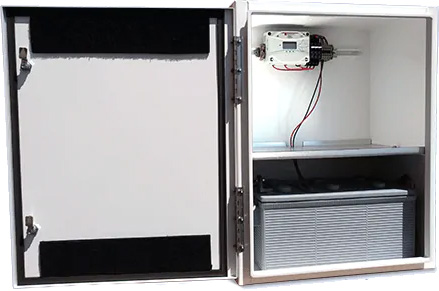

MAPPS AL-POL-2-8G8DN Large Pole Mounted Battery Enclosure

Name: MAPPS AL-POL-2-8G8DN Large Pole Mounted Battery Enclosure
SKU: AL-POL-2-8G8DN

SKU AL-POL-2-8G8DN

Pole Mounted Solar Battery Enclosures

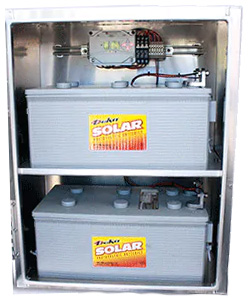

AL-POL-2-G31N NEMA 3R Battery & Control Enclosure Pole Mount

The MAPPS AL-POL-2-8G8DN is a large weatherproof battery enclosure designed for demanding outdoor applications requiring substantial battery capacity and system integration. This mill finish aluminum enclosure accommodates multiple battery configurations including up to two Group 8D batteries, six Group 31 batteries, or various advanced energy storage solutions including sealed VRLA lead acid gel, AGM, and lithium iron phosphate batteries.

Off-Grid Battery Powered Applications

The MAPPS^® AL-POL-2-8G8DN enclosure is designed for diverse remote power applications requiring reliable battery protection and system integration. These include: radio cabinets, remote water management, environmental monitoring, roadway signaling, mobile security, power over ethernet devices, and UPS battery backup systems.

MAPPS^® Enclosure AL-POL-2-8G8DN Features

Industrial Durability: Robust construction with milled aluminum and stainless steel components for long-term outdoor reliability
Large Battery Capacity: Accommodates multiple Group 8D or up to six Group 31 batteries for extended runtime applications
Heavy-Duty Pole Mounting: 2-piece pole clamps for up to 12" SCH40 pipe installations with optional wall mounting
Enhanced Security: Dual compression latches with lockable mechanism supporting standard padlock configurations
Optimal Ventilation: Filtered louver vents maintain proper battery operating temperatures while preventing debris ingress
Advanced Integration: Expanded backplate options and DIN rail systems for complex control and monitoring equipment

MAPPS^® AL-POL-2-8G8DN Options & Upgrades

Removable radio shelf available
Powder Coated Finish white or custom color

MAPPS Battery Enclosure Options & Upgrades

SunSaver or ProStar controllers pre-wired
DC to AC inverters pre-wired
DC to DC converters pre-wired
Removable shelf with larger 20.75" W X 15" H backplate
20.75" W X 4.25" H backplate
POE's pre-wired and installed on backplate
Battery insulation kit for extreme temperatures

Attachments Details

MAPPS^® AL-POL-2-8G8DN Solar Battery Enclosure Review

The MAPPS^® AL-POL-2-8G8DN represents a professional-grade solution for high-capacity remote power applications requiring substantial battery storage and advanced system integration. The large enclosure design accommodates multiple battery chemistries and configurations while providing weather protection through robust construction and filtered ventilation systems. The heavy-duty pole mounting system supports installations up to 12" pipe diameters commonly found in utility transmission towers and industrial monitoring stations.

Engineering details include corrosion-resistant aluminum construction with enhanced mounting hardware for larger battery loads and extended equipment integration. The expanded backplate options and DIN rail systems enable complex installations with surge protection, power conversion equipment, and monitoring systems. The dual compression latch system provides operational convenience with security options for critical infrastructure installations requiring substantial backup power capacity.
