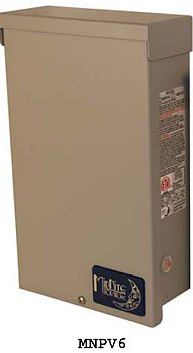

Midnite Solar MNPV6 PV Combiner Box
The MNPV6 busbar can combine up to 6 strings using MNPV breakers rated for 150VDC. It is designed for circuit breakers only. The MNPV6 can handle 120 amps total PV output by combining up to 4 strings using MNATM6, MNATM10 or MNATM15 touch safe fuse holders rated for 600VDC.
• Flip up cover that can stay in the open position during installation
• PV Negative bus bar with 14 useable openings (10 #14-6 and 4#1/0-14)
• Chassis ground bus bar with 14 useable openings (10 #14-6 and 4#1/0-14)
• Standard din rail to mount up to 6 breakers or 4 fuse holders
• Tin plated copper bus bar to combine breaker outputs (MNPV6 busbar may be split in two)
• Dead front cover snaps into place after wiring is complete for safety
• Knock outs for PV in and PV out on bottom and sides
• Top surface is available to bring conduit in from directly above the enclosure
Note: The plastic dead front fits very tight. You must first remove the lid in order to remove the dead front.
The installation of a PV combiner is fairly straight forward
Select the location to install your combiner first. Some systems have the PV modules located close to the inverters and or battery system. If this is the case, you can elect to mount the MNPV inside and run each PV string down to the MNPV inside the house. This is convenient for trouble shooting and upgrading. For longer runs the combiner will be mounted outdoors on the pole for pole mounted PV arrays or similar mounting for rack mounted arrays. The combiner can be mounted in the vertical position or slanted backwards to accommodate up to a 3/12 roof pitch. All unused holes should be blocked using RTV sealant or some similar goop in order to keep rain and bugs out of the enclosure.
Note the warning label on each side of the enclosure. Care must be taken to insure that no water will get on terminal busbars when mounted less than vertical. Removal of the labels are allowed if conditions are met. It is very common for critters to enter through an unused mounting hole and take up roost. They will eventually degrade the performance of your system to say nothing of the yuk factor upon discovery of their nest.
