Mission Solar Model Number	MSE345SX5T
Power Output	345.0 Watts
Module Efficiency	18.7
Tolerance	0˜+3%
Short Circuit Current (Isc)	10.92 Amps
Open Circuit Voltage	41.00
Rated Current	10.34
Rated Voltage	33.37
Fuse Rating	20
Area	19.83 ft²
Weight	44.8 lbs.
Length	68.8 in.
Width	41.50 in.
Height	1.6 in.

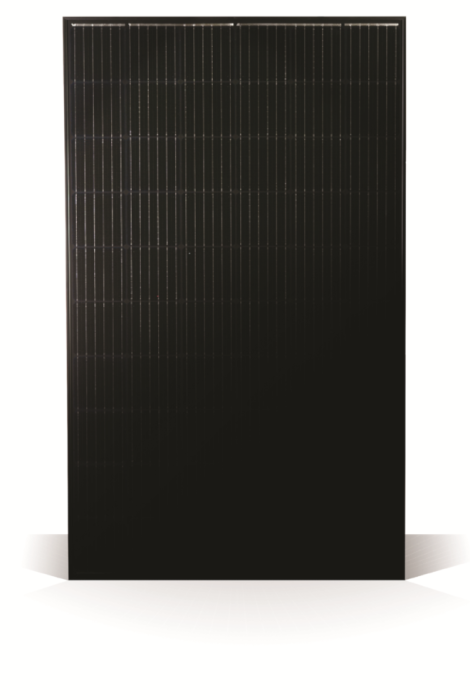

Mission Solar MSE345SX5T Black 345W Solar Panel

High-Power Output. Made in the USA.

The MSE345SX5T PERC 60 mono-crystalline solar panel is a 60 cell solar panel with the highest power output in its class. It's high efficiency and certified reliability make it ideal for utility grid-tied installations including ground-mounted and commercial rooftop solar panel systems.

Mission Solar Energy solar panels receive multiple quality checks throughout the manufacturing process and are subject to stringent quality and reliability testing. Each product is tested to 3X IEC standards and backed by an independent 25-year linear warranty.

Mission Solar MSE345SX5T Solar Panel Features

• High peak power output of 345 watts
• Resistance to salt mist corrosion
• Advanced technology including PERC and 6 busbars
• Anodized Black aluminum frame
• Suitable for PV systems up to 1,500 VDC
• Up to 5,600 Pa front load & 5,631 Pa back load
• Qualifies for the Buy American Act

Certified Reliability

Tested to UL61730 & IEC standards. PID Resistant.

PERC w/ 6-Busbar Technology

Passivated Emitter Rear Cell (PERC) technology provides excellent power output through advanced cell architecture. 6 Busbars across each PERC solar cell adds more improvement in efficiency than ever.

Extreme Weather Resilience

5631 Pa snow load (117 psf) tested load to UL1703. 185 mph wind rating.

Mission Solar Energy Warranty

Degradation guaranteed not to exceed 2%
in year one and 0.58% annually from years two to 30 with 84.08% capacity guaranteed in year 25.

MSE345SX5T Solar Panel Certifications

Product: IEC 61215/ IEC 61730/ IEC 61701 UL 61730
UL Fire Rating: Type 1
