Panasonic HIT N325 solar panel specifications
Model Number VBHN325SA16
STC Rating 325.0 Watts
PTC Rating 301.2
Open Circuit Voltage (Voc) 69.6 Volts
Short Circuit Current (Isc) 6.03 Amps
Frame Color Black
Origin Malaysia
Power Tolerance -0 / +10%
Module Efficiency 19.4%
Area 18.04 ft²
Weight 40.81 lbs.
Length 62.6 in.
Width 41.5 in.
Height 1.4 in.

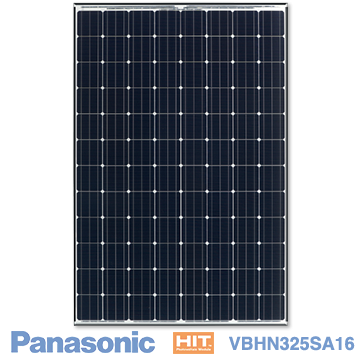

Panasonic HIT N325 VBHN325SA16 Solar Panel

Panasonic HIT

Panasonic HIT solar panel
Panasonic HIT solar panels use HIT heterojunction monocrystalline solar cells with record breaking efficiency.

Panasonic HIT N325 VBHN325SA16 Solar Panel

An excellent proven alternative to other high efficiency solar panels like LG & Sunpower.

  • 325 Watt solar panel using HIT heterojunction monocrystalline cells
  • The HIT 325 VBHN325SA16 features a sleek black frame
  • Excellent 19.4% efficiency
  • Panasonic has 40 years of photovoltaic research and development.

Panasonic HIT Warranty

15 Years Workmanship, 25 Years Power Output

  • Vertically integrated in-house manufacturing of wafer, cell, and module
  • State-of-the-art production facilities and manufacturing processes
  • Industry’s most stringent independent testing and quality control standards
  • IEC and 20+ internal tests

HIT N325 Solar Panel Dimensions

Panasonic HIT N325 review

HIT solar cell efficiency
The 19.4% efficiency of the HIT N325 enables a higher output and lower specific installation and balance-of-system costs.

Panasonic HIT N325 Solar Panel Review

100% Panasonic, 100% HIT

Proudly featuring Panasonic's original invention, the heterojunction solar cell. With over 1 billion cells produced commercially over 18 years, 25 years after the breakthrough in the development and looking back to over 40 years of experience in solar. Panasonic really offers you a 25-year guarantee you can trust.

Record Breaking HIT Solar Cell Efficiency

Panasonic photovoltaic modules HIT® feature an innovative hetero-junction cell structure made of mono-crystalline and amorphous silicon layers. Ultra-thin amorphous silicon layers prevent recombinations of electrons, keeping carrier loss to an absolute minimum. As a result, HIT® conversion efficiency ratings are among the highest available today.

Panasonic Proven Reliability

With HIT solar panels, Panasonic has proven its position among leading solar module manufacturers. These modules are shipped from the Panasonic's global manufacturing hub in Malaysia. The HIT-N325 boasts the highest quality and reliability: Panasonic employs strict materials selection and qualified manufacturing processes. A vertically integrated factory allows for exhaustive quality assessments at every step of production. Panasonic HIT solar panels are IEC certified by JET.

HIT solar panel efficiency

HIT N325: 15pcs x 325W = 4.825kW

Standard: 15pcs x 260W = 3.90kW
