|Open Circuit Voltage (V)||69.7|
|Short Circuit Current (A)||6.07|
|Area (sq. ft.)||18.04|
Panasonic HIT N330 VBHN330SA17 Solar PanelSKU VBHN330SA17
This Panasonic HIT solar panel is assembled in the USA.
Panasonic HIT N330 VBHN330SA17 Solar Panel
The 96-cell high-efficiency HIT N330 solar panel provides your home with a powerful combination of impub/mediate energy savings, long term performance, and sleek beauty at a low price. A remarkably low temperature coefficient of -0.258%/°C helps generate greater electricity output even on the hottest days. Panasonic home solar panels are backed by an industry-leading parts and performance warranty that guarantees minimum power output of 90.76% after 25 years.
HIT N330 Features
- Enhanced New Frame Design (40mm)
- Pyramid cell structure design for optimal sunlight capture
- Low temperature coefficient of -0.258%/°C produces higher power output at high temperatures
- Heterojunction technology with ultra-thin amorphous silicon layers reduce electron loss
- Water drainage frame design prevents rain accumulation, eliminates water stains from panel surface
- Complete 25-year warranty on linear power output, parts, and product workmanship
|High Efficiency at High Temperatures
As temperature increases, HIT continues to perform at high levels due to the industry leading temperature coefficient of -0.258% /°C. No other module even comes close to our temperature characteristics. That means more energy throughout the day.
|25 Year Product and Performance Warranty
Industry leading 2 year product workmanship and performance warranty is backed by a century old company- Panasonic. Power output is guaranteed to 90.76% after 25 years, far greater than other companies.
Quality and Reliability
|Higher Efficiency 19.7%
Enables higher power output and greater energy yields. HIT® provides maximum production for your limited roof space.
HIT “N-type” cells result in extremely Low Light Induced Degradation (LID) and zero Potential Induced Degradation (PID) which supports reliability and longevity. This technology reduces annual degradation to 0.26% compare to 0.70% in conventional panels, guaranteeing more power for the long haul.
|Enhanced Frame Design
A new 40mm frame increases durability and strength, being able to handle loads of up to 5400Pa. Also, the water drainage system gives rain water and snow melt a place to go, reducing water stains and soiling. Less dirt on the module means more sunlight getting through to generate power.
Panasonic HIT N330 VBHN330SA17 Warranty
25 Years Workmanship, 25 Years Power Output
Power output is guaranteed to 90.76% after 25 years.
Contact us toll-free: (877) 297-0014
Panasonic HIT N330 VBHN330SA17 Solar Panel Review
Panasonic’s unique heterojunction technology uses ultra-thin amorphous silicon layers. These thin dual layers reduce losses, resulting in higher energy output than conventional panels.

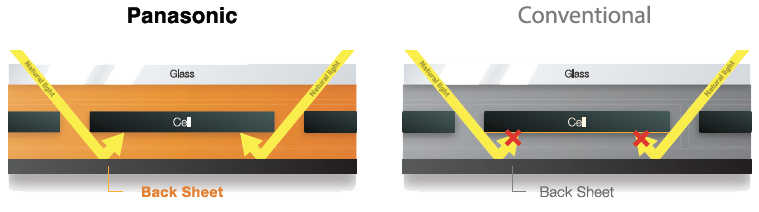

Advanced bifacial cell designed for increased energy output. The cell utilizes sunlight reflected back from the rear side material which captures more light and converted into energy.
100% Panasonic, 100% HIT
Proudly featuring Panasonic's original invention, the heterojunction solar cell. With over 1 billion cells produced commercially over 18 years, 25 years after the breakthrough in the development and looking back to over 40 years of experience in solar. Panasonic really offers you a 25-year guarantee you can trust.
- Vertically integrated in-house manufacturing of wafer, cell, and module
- State-of-the-art production facilities and manufacturing processes
- Industry’s most stringent independent testing and quality control standards
- IEC and 20+ internal tests
Record Breaking HIT Solar Cell Efficiency

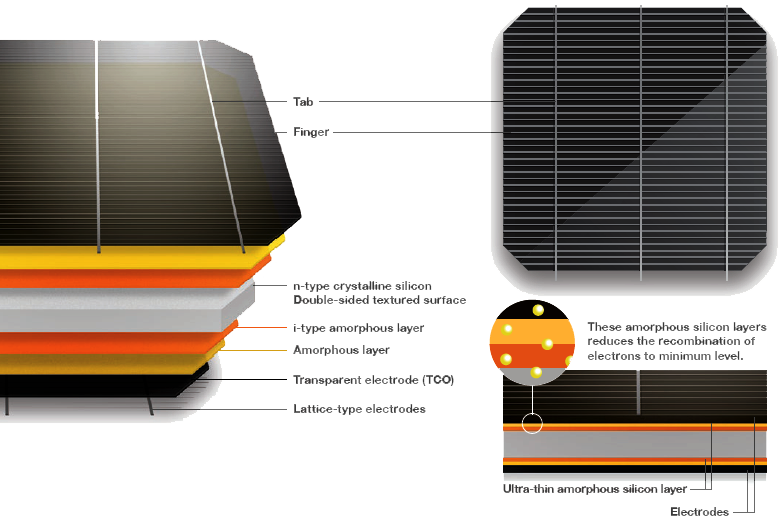

Panasonic photovoltaic modules HIT feature an innovative hetero-junction cell structure made of mono-crystalline and amorphous silicon layers. Ultra-thin amorphous silicon layers prevent recombinations of electrons, keeping carrier loss to an absolute minimum. As a result, HIT® conversion efficiency ratings are among the highest available today.
Panasonic Proven Reliability
With HIT solar panels, Panasonic has proven its position among leading solar module manufacturers. These modules are shipped from the Panasonic's global manufacturing hub in Malaysia. Panasonic employs strict materials selection and qualified manufacturing processes. A vertically integrated factory allows for exhaustive quality assessments at every step of production. Panasonic HIT solar panels are IEC certified by JET.
Quantity wholesale Panasonic HIT solar panels & complete systems available at a low price.
Contact us toll-free: (877) 297-0014
Contact us for sales, low prices and expert reviews for the Panasonic N330 VBHN330SA17 solar panel.
