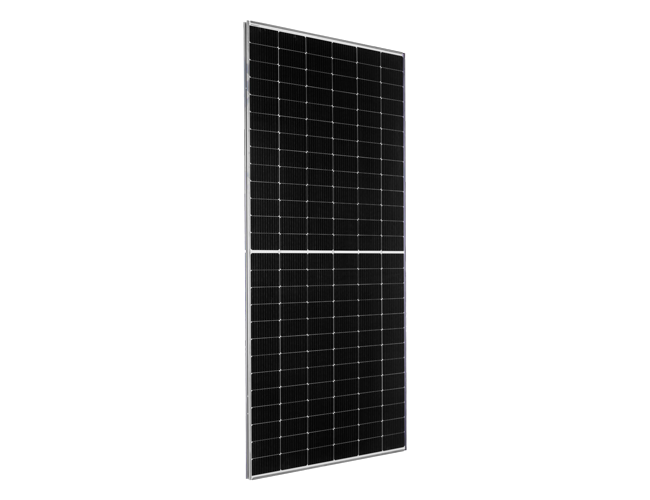

QCELLS Q.PEAK DUO XL-G11S.3/BFG Solar Module

Qcells Q.PEAK DUO RSF XL-G11S.3/BFG 595W

Model	Q.PEAK DUO XL-G11S.3/BFG
Power Output (STC)	595 W
Bifacial Output (BSTC)	up to 650.8 W
Module Efficiency	≥ 21.3 %
Cell Type	156 (6x26) monocrystalline Q.ANTUM DUO half cells
Voltage at Pmax (Vmp)	45.18 V
Current at Pmax (Imp)	13.17 A
Dimensions	96.9 x 44.6 x 1.38 in (2462 x 1134 x 35 mm)
Weight	76.9 lbs (34.9 kg)
Frame	Anodized aluminum (silver)
Bifaciality	70 % ±5 %
Warranty	12-Year Product / 30-Year Performance
Certifications	UL 61730, IEC 61215:2016, IEC 61730:2016, CE
Origin	Assembled in the USA (BAA eligibility, contact for documentation)

Explore current wholesale solar panel pallet specials from
Solar Electric Supply.

View Solar Panel Specials

QCELLS Q.PEAK DUO RSF XL-G11S.3/BFG 595W Solar Panel

Name: QCELLS Q.PEAK DUO RSF XL-G11S.3/BFG 595W Solar Panel
SKU: QCELLS

SKU QCELLS

Q.PEAK DUO XL-G11S.3/BFG 595W Module

The QCELLS Q.PEAK DUO XL-G11S.3/BFG is a 595-watt bifacial double-glass module that pairs Q.ANTUM DUO half-cell technology with a high-tech aluminum alloy frame. Bifacial Q.ANTUM cells make efficient use of light on the rear side for an energy-yield gain of up to 21%, while the 156-cell, zero-gap layout reaches ≥21.3% module efficiency (up to 21.7% across the series), an ideal solution for commercial and utility solar, ground-mounted power plants, and tracker installations.

The high-tech anodized aluminum alloy frame protects the module from damage and enables a wide range of mounting structures, certified per IEC for high snow loads (5400 Pa) and wind loads (3750 Pa). A double-glass laminate with Advanced Anti-PID, Advanced Anti-LID, and Hot-Spot Protect technology backs a 12-year product and improved 30-year performance warranty, and the module is proudly assembled in the USA.

QCELLS Q.PEAK DUO XL-G11S.3 Features

595W Bifacial Q.ANTUM DUO: 156 zero-gap half cells reach ≥21.3% efficiency with up to 21% bifacial energy-yield gain.
Aluminum Alloy Frame: High-tech anodized aluminum frame certified per IEC for high snow (5400 Pa) and wind (3750 Pa) loads with versatile mounting options.
All-Weather Technology: Excellent low-light and temperature behavior delivers optimal yields whatever the weather.
Assembled in the USA: USA-assembled and can contribute to domestic content bonus eligibility (BAA documentation on request).
30-Year Performance Warranty: Anti-LID and Anti-PID double-glass design guarantees at least 84.95% of rated power at 30 years.

Bifacial Q.ANTUM DUO Technology

Q.ANTUM DUO combines passivation, half-cell, and zero-gap cell interconnection with bifacial capability to maximize energy capture even in challenging light. Built-in Advanced Anti-LID, Advanced Anti-PID, and Hot-Spot Protect technologies preserve output over the module's life, and the USA-assembled design can contribute to domestic content bonus eligibility, contact your QCELLS representative for Buy American Act (BAA) documentation.

Attachments Details

QCELLS Q.PEAK DUO XL-G11S.3/BFG 595W Technical Review

The QCELLS Q.PEAK DUO XL-G11S.3/BFG 595W produces 595 W at STC from 156 monocrystalline Q.ANTUM DUO half cells, operating at 45.18 V Vmp / 13.17 A Imp with a 53.63 V Voc and 13.77 A Isc, and reaching ≥21.3% module efficiency (up to 21.7% across the 590 to 605 Wp series). Bifacial operation adds rear-side gain for up to 650.8 W (BSTC) at a 70% ±5% bifaciality factor. Its high-tech anodized aluminum alloy frame protects the module from damage and enables a wide range of mounting structures, certified per IEC for high snow (5400 Pa) and wind (3750 Pa) loads across commercial rooftops, ground mounts, and tracker systems. A double-glass laminate (2.0 mm AR front / 2.0 mm back), IP67 junction box, Stäubli MC4 connectors, 1500 V maximum system voltage, and 30 A series fuse rating round out the design. Listed to UL 61730 and IEC 61215/61730 with Advanced Anti-PID, Advanced Anti-LID, and Hot-Spot Protect, assembled in the USA, and backed by a 12-year product and 30-year performance warranty, it is purpose-built for commercial and utility solar.
