SES MAPPS Side of Pole Solar Panel Mount
Model Number SPM1-Multi
Solar Panel Compatibility Supports one 40-90W J series or VLS 40-90W
Tilt Range 30°-90°
Pole Size 2"-4" (custom sizes available)
Wind Speed Rating 90 MPH, (130 MPH available)
Weight 10 lbs.
Dimensions 11.5"H X 6.25"W X 2"
Warranty 1 year limited warranty
Origin USA

MAPPS SPM1-Multi Side of Pole Solar Panel Mount

SKU SPM1-Multi
remote solar pole mount sun
mounts for remote solar panel systems

MAPPS off-grid remote solar systems
Solar Panel Mounting Structures

MAPPS SPM1-Multi Side of Pole Solar Panel Mount

single solar panel side of pole mount

Solar Electric Supply offers industrial solar panel pole mounting structures for a wide variety of solar panels and client applications.

With heavy duty aluminum supports and stainless steel hardware this rugged side-of-pole PV mount is available with standard 90 MPH and optional 130 MPH wind ratings. Standard or custom hardware can be provided for attachment to the pole or tower structure

These are designed for our 40 watt - 90 watt PV modules and many manufactured by BP Solar and Ameresco like the: SX350J, SX365J & SX390J.

SPM1-Multi Side of Pole Mount Details

side of pole solar panel  mount side view
  • Series 5000 or 6000 mill finish aluminum
  • Anodized or powder coated available
  • TIG welded aluminum channel
  • Stainless Steel module mounting hardware
  • Stainless Steel band clamp
    (U-bolts available for most pole sizes)
  • Module specific design reduces parts and labor

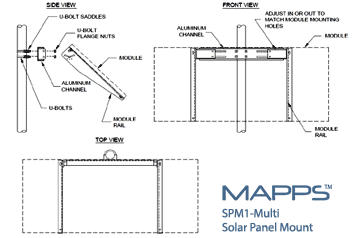

side of pole mount review
Array Tilt Angle Selection
Site Latitude
(in degrees)
Fixed Tilt Angle
0° to 15° 15°
15° to 25° Same as Latitude
25° to 30° Same as Latitude +5°
30° to 35° Same as Latitude +10°
35° to 40° Same as Latitude +15°
40° + Same as Latitude +20°

Selecting Your Solar Array Location

pole mount tilt angle

Locate array in an unshaded area facing the equator and tilted from the horizontal at the desired tilt angle (refer to table on right).

Solar arrays in the Northern Hemisphere face South for optimum energy production. Solar arrays in the Southern Hemisphere face North.

When choosing a site, avoid trees, overhead power lines, buildings or obstructions which could cast shadows on the solar modules. This is especially true during the winter months when the arc of the sun is lowest to the horizon.

Contact us toll-free: (877) 297-0014

Solar Electric Supply specializes in supplying dealer, contractor, government and industrial accounts worldwide with reliable, cost-effective solar electric power solutions.

Contractor Discounts Available  ·  Side of Pole Mounts


Contact us toll-free: (877) 297-0014 for expert assistance and wholesale prices for the SES MAPPS SPM1-Multi solar panel side of pole mount.
