SES MAPPS Side of Pole Solar Panel Mount
Model Number SPM3-190
Solar Panel Compatibility Supports three 190W-205W J series and other 72 cell modules
Tilt Range 30°-90°
Pole Size 3.5"-6" (custom sizes available)
Wind Speed Rating 90 MPH, (130 MPH available)
Weight 60 lbs.
Warranty 1 year limited warranty
Origin USA

MAPPS SPM3-190 Side of Pole Mount for 3 Solar Panels

SKU SPM3-190
remote solar pole mount sun
mounts for remote solar panel systems

MAPPS off-grid remote solar systems
Solar Panel Mounting Structures

MAPPS SPM3-190 Solar Panel Side of Pole Mount

3 solar panels mounted on pole

Solar Electric Supply offers industrial solar panel pole mounting structures for a wide variety of solar panels and client applications.

With heavy duty aluminum supports and stainless steel hardware this rugged side-of-pole PV mount is available with standard 90 MPH and optional 130 MPH wind ratings. Standard or custom hardware can be provided for attachment to the pole or tower structure

These are designed to mount three of our 190 watt - 205 watt PV modules and many manufactured by BP Solar and Ameresco like the: SX4190J, 4200J, SX4185, SX3175 & SX3185.

3 solar panel pole mount rear view

SPM3-190 Side of Pole Mount Details

  • Series 5000 or 6000 mill finish aluminum
  • Anodized or powder coated available
  • TIG welded aluminum channel
  • Stainless Steel module mounting hardware
  • Stainless Steel band clamp
    (U-bolts available for most pole sizes)
  • Module specific design reduces parts and labor
Array Tilt Angle Selection
Site Latitude
(in degrees)
Fixed Tilt Angle
0° to 15° 15°
15° to 25° Same as Latitude
25° to 30° Same as Latitude +5°
30° to 35° Same as Latitude +10°
35° to 40° Same as Latitude +15°
40° + Same as Latitude +20°

Selecting Your Solar Array Location

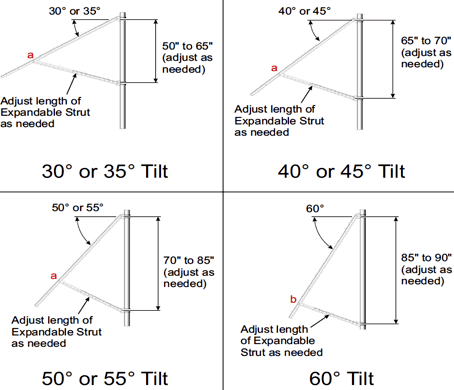

pole mount tilt angle


Locate array in an unshaded area facing the equator and tilted from the horizontal at the desired tilt angle (refer to table on right).

Solar arrays in the Northern Hemisphere face South for optimum energy production. Solar arrays in the Southern Hemisphere face North.

When choosing a site, avoid trees, overhead power lines, buildings or obstructions which could cast shadows on the solar modules. This is especially true during the winter months when the arc of the sun is lowest to the horizon.

Contact us toll-free: (877) 297-0014

MAPPS SPM3 3 Solar Panel Side of Pole Mount Review

3 panel SPM3-190 side of pole mount review
pole mount tilt angle

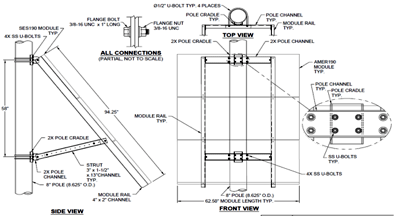

2 solar panel side of pole detail drawing
side of pole mount review
side of pole mount review

Solar Electric Supply specializes in supplying dealer, contractor, government and industrial accounts worldwide with reliable, cost-effective solar electric power solutions.

Contractor Discounts Available  ·  Side of Pole Mounts



Contact us toll-free: (877) 297-0014 for expert assistance and wholesale prices for the SES MAPPS SPM3-190 solar panel side of pole mount.
