S-Energy SN255P-10 Solar Panel - 255 Watt

Availability: Call For Availability



S-Energy SN255P-10 Solar Panel - 255 Watt

SN255P-10 multicrystalline solar panels feature advanced design, construction, and performance

Enhanced External Load / Impact
Snow Load : 5,400 Pa (30T) / 8,400 Pa (40T)
Wind Load : 2,400 Pa (30T) / 5,400 Pa (40T)
Enhanced External Hail Impact : 30.7 m/s (speed ball)

Resistant to Harsh Weather Environments
Suitable for extreme conditions
Resistant to high salt mist and ammonia
Corrosion (certified by TÜV Rheinland)

Reassuring Warranty
25-year, linear power warranty
97.5% nominal power during 1st year

Positive Power Tolerance
Positive tolerance up to +5 watts ensures return on investment

PID Resistance
Enhanced potential induced degradation with built-in state of the art SiNx encapsulant switches

Fire Safety
UL1703 Fire Classification : Type 1, Type 2

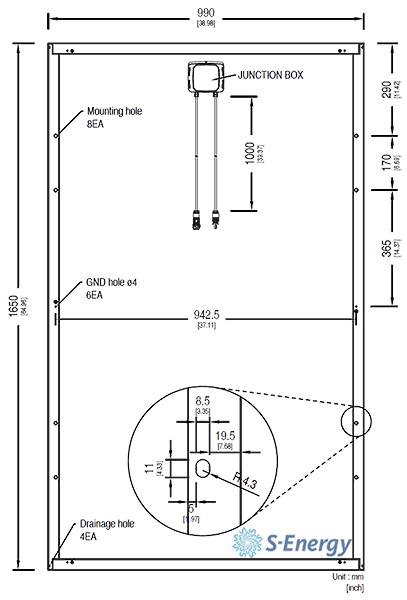

SN255P-10 Solar Panel Dimensions

S-Energy SN255P-10 review

S-Energy SN255P-10 Solar Panel - 255 Watt

Double click on above image to view full picture

Zoom Out
Zoom In


S-Energy SN255P-10 solar panel specifications
S-Energy Model Number SN255P-10
STC Rating 255.0 Watts
PTC Rating TBD
Solar Cell Type Polycrystalline
Module Efficiency 15.61%
Open Circuit Voltage (Voc) 37.6 Volts
Short Circuit Current (Isc) 8.93 Amps
Frame Color Black Anodized
Power Tolerance -0 / +5%
Area 17.6 ft²
Length 64.96 in.
Width 38.98 in.
Height 1.18 in. (30T)
1.58 in. (40T)

Quantity Discounts Available

Packing Configuration
Container 40' Dry
Modules per Pallet 25 pcs
Pallets per Container 26 pallets
Modules per Container 650 pcs

Contact us toll-free at (877) 297-0014
for today's low wholesale solar panel & system prices.

Manufacturer Specification Sheets

View FileS-Energy SN 60-Cell Series Solar Panel Datasheet    Size: (351.32 KB)


SN255P-10 solar panels certifications

S-Energy SN255P-10 Certifications

IEC 61215 & 61730, UL1703
ISO 9001, ISO 14001, OHSAS 18001

Hail impact test
(IEC Standard: 23m / s)

Ammonia corrosion
Installation possibilities farm and barn complete test

Salt mist corrosion test
Complete installation possibilities waterfront test

Standard tiered warranty
10 to 25 years limited warranty

Contact us for low wholesale pricing, solar system design or expert reviews for the S-Energy SN255P-10 solar panel.
