S-Energy SN305P-10 Solar Panel - 305 Watt

Availability: Call For Availability



S-Energy SN305P-10 Solar Panel - 305 Watt

The cutting-edge SN305P-10 solar panel for any solar system size

Enhanced External Load / Impact
Snow Load : 5,400 Pa
Wind Load : 2,400 Pa
Enhanced External Hail Impact : 30.7 m/s (speed ball)

Resistant to Harsh Weather Environments
Suitable for extreme conditions
Resistant to high salt mist and ammonia corrosion (certified by TÜV Rheinland)

Reassuring Warranty
25-year, linear power warranty
More than 97.5% nominal power during 1st year

Positive Power Tolerance
Positive tolerance up to +5 watts ensures return on investment

PID Resistance
Enhanced potential induced degradation with built-in state of the art SiNx encapsulant switches

Fire Safety
UL1703 Fire Classification : Type 1, Type 2

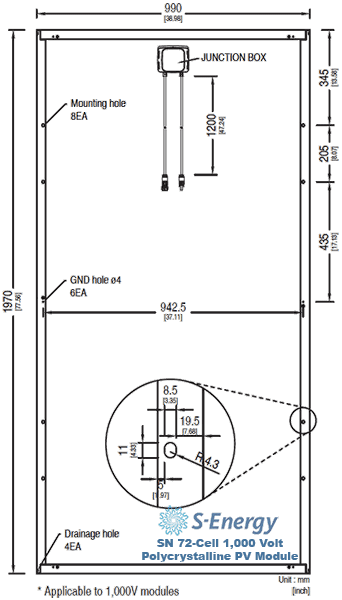

SN305P-10 Solar Module Dimensions

S-Energy SN305P-10 review

S-Energy SN305P-10 Solar Panel - 305 Watt

Double click on above image to view full picture

Zoom Out
Zoom In


S-Energy SN305P-10 solar panel specifications
S-Energy Model Number SN305P-10
STC Rating 305.0 Watts
PTC Rating TBD
Solar Cell Type Polycrystalline
Module Efficiency 15.64%
Open Circuit Voltage (Voc) 45.1 Volts
Short Circuit Current (Isc) 8.9 Amps
Max. System Voltage 1,000 Volts
Frame Color Anodized
Power Tolerance -0 / +5%
Area 21.0 ft²
Length 77.56 in.
Width 38.98 in.
Height 1.58 in.
Weight 44.09 lbs.

Quantity Discounts Available

Packing Configuration
Container 40' H/C
Modules per Pallet 25 pcs
Pallets per Container 22 pallets
Modules per Container 550 pcs

Contact us toll-free at (877) 297-0014
for today's low wholesale solar panel & system prices.

Manufacturer Specification Sheets

View FileS-Energy SN 72-Cell Series Solar Panel Datasheet    Size: (352.12 KB)


SN305P-10 solar panels certifications

S-Energy SN305P-10 Certifications

IEC 61215 & 61730, UL1703
ISO 9001, ISO 14001, OHSAS 18001

Hail impact test
30.7 m/s (speed ball)

Ammonia corrosion
Installation possibilities farm and barn complete test

Salt mist corrosion test
Complete installation possibilities waterfront test

Standard tiered warranty
10 to 25 years limited warranty

Contact us for low wholesale pricing, solar system design or expert reviews for the S-Energy SN305P-10 solar panel.
