S-Energy SN305P-15 Solar Panel - 305W - 1500V

Availability: Call For Availability

Features

S-Energy

S-Energy SN305P-15 Solar Panel - 305 Watt

Lower BOS costs with 1500 Volt SN305P-15 solar panels

UL Certified to 1,500 Volts DC system voltage
A higher system voltage improves efficiency, reduces necessary components and lowers balance of system cost.

Enhanced External Load / Impact
Snow Load : 5,400 Pa
Wind Load : 2,400 Pa
Enhanced External Hail Impact : 30.7 m/s (speed ball)

S-Energy commercial solar panel system
Commercial Solar Panel Systems

Resistant to Harsh Environments
Suitable for extreme conditions
Resistant to high salt mist and ammonia corrosion (certified by TÜV Rheinland)

Reassuring Warranty
25-year, linear power warranty
More than 97.5% nominal power during 1st year

Positive Power Tolerance
Positive tolerance up to +5 watts ensures return on investment

PID Resistance
Enhanced potential induced degradation with built-in state of the art SiNx encapsulant switches

Fire Safety
UL1703 Fire Classification : Type 1, Type 2

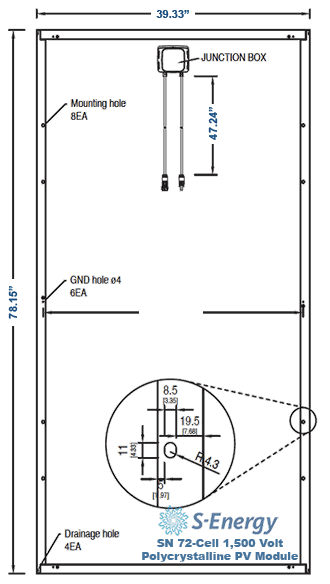

SN305P-15 Polycrystalline Solar Module Dimensions

S-Energy SN305P-15 review

S-Energy SN305P-15 305 Watt, 1500 Volt Solar PV Module

Double click on above image to view full picture

Zoom Out
Zoom In

Specifications

S-Energy SN305P-15 solar panel specifications
S-Energy Model Number SN305P-15
STC Rating 305.0 Watts
PTC Rating TBD
Solar Cell Type Polycrystalline
Module Efficiency 15.38%
Open Circuit Voltage (Voc) 45.1 Volts
Short Circuit Current (Isc) 8.9 Amps
Max. System Voltage 1,500 Volts
Frame Color Anodized
Power Tolerance -0 / +5%
Area 21.35 ft²
Length 78.15 in.
Width 39.33 in.
Height 1.58 in.
Weight 45.19 lbs.

Quantity Discounts Available

Packing Configuration
Container 40' H/C
Modules per Pallet 25 pcs
Pallets per Container 22 pallets
Modules per Container 550 pcs


Contact us toll-free at (877) 297-0014
for today's low wholesale solar panel & system prices.

Manufacturer Specification Sheets

View FileS-Energy SN 72-Cell Series Solar Panel Datasheet    Size: (352.12 KB)

Details

SN305P-15 solar panels certifications

S-Energy SN305P-15 Polycrystalline PV Module Certifications

IEC 61215 & 61730, UL1703
ISO 9001, ISO 14001, OHSAS 18001

Hail impact test
30.7 m/s (speed ball)

Ammonia corrosion
Installation possibilities farm and barn complete test

Salt mist corrosion test
Complete installation possibilities waterfront test

Standard tiered warranty
10 to 25 years limited warranty

Contact us for low wholesale pricing, solar system design or expert reviews for the S-Energy SN305P-15 solar panel.
