Physical characteristics
Cells per module 60
Cell type Mono-crystalline silicon
Module dimensions 1644x992x46mm (64.7x39.1x1.8 inches)
Module weight 20.2kg (44.5 lbs)
Front Glass Low iron tempered glass
Junction box Connecter type MC4
IP grade IP65
Output cables (-) 1000mm, (+) 1000mm
(-) 39.4 inches, (+) 39.4 inches

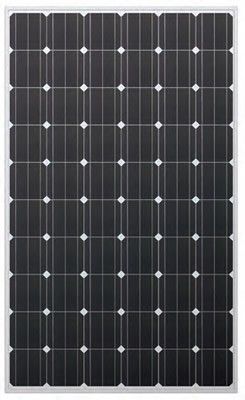

Samsung 247W/250W/255W MBA Series Black Frame Solar Panel

Samsung MBA Series Black Frame High Efficiency

High Efficiency

Samsung solar modules deliver high efficiency, requiring less installation space and lower BOS costs.

Samsung MBA Series Black Frame Proven Performance

Proven Performance

Samsung solar modules deliver more electricity under real world conditions thanks to superior temperature performance. (CEC conversion yield: 90.3% under PV USA test conditions)

Samsung MBA Series Black Frame Output Tollrence

Positive Power Output Tolerance

Samsung solar modules and cells avoid any power loss due to their positive output tolerance (0 / +2%) and narrow sorting range.

Samsung MBA Series Black Frame Low Mismatch Loss

Low Mismatch Loss

Narrow current band allows for sort-free field installation and optimized solar array performance.

Samsung MBA Series Black Frame Superior Durability

Superior Durability

Samsung solar modules are certified to withstand high pressure: wind loads (2,400Pa), snow loads (5,400Pa).

Samsung MBA Series Black Frame Strict Quality Testing

Strict Quality Testing

Samsung solar modules are best-in-class thanks to our quality assurance system following international standard IEC 61215.

Black frame PV-MBA1CG247 PV-MBA1CG250 PV-MBA1CG255
Measured at STC : Irradiance 1000W/m2, AM 1.5, and cell temperature 25°C
Maximum power Pmax (Wp) 247 250 255
Maximum power voltage Vmp (V) 30.5 30.7 31.1
Maximum power current Imp (A) 8.11 8.15 8.21
Open circuit voltage Voc (V) 37.6 37.8 38.1
Short circuit current Isc (A) 8.64 8.68 8.75
Module efficiency 15.15% 15.33% 15.64%
Measured at NOCT : Irradiance 800W/m2, ambient temperature 20°C, wind speed 1m/s
Maximum power Pmax (Wp) 180 182 187
Maximum power voltage Vmp (V) 27.7 28.0 28.2
Maximum power current Imp (A) 6.49 6.53 6.63
Open circuit voltage Voc (V) 34.9 35.0 35.3
Short circuit current Isc (A) 6.46 6.49 6.55

*Power output may vary by 0% / +2% and other electrical parameters by ±3%.

Safety ratings & Warranties
Fire Safety Classification Class C
Certifications IEC 61215, IEC 61730, UL 1703
Warranty 10 years limited product warranty
Performance guarantee 10 years limited warranty of 90% power output
25 years limited warranty of 80% power output
Qualification test
Temp cycling range -40°C to 85°C for 200cycles
Damp heat test 85°C and 85% relative humidity for 1000hr
Front load test (Snow) 5400Pa
Rear static load test (Wind) 2400Pa
Hailstone impact test 25mm hail at 23m/s from 1m distance
System integration parameters
Maximum system voltage (IEC) 1,000 V
Maximum system voltage (UL) 600 V
Maximum series fuse rating 15 A
Limiting reverse current 15 A
Temperature coefficients
NOCT 45 ± 2°C
TC Isc 0.034%/K
TC Voc -0.325%/K
TC Pmax -0.438%/K

(NOCT : Nominal Operating Cell Temperature)

Packing configuration
Container 40’HC
Pieces per pallet 20
Pallets per container 28
Samsung MBA Series Black Frame  IV Curves Samsung MBA Series Black Frame Dimensions
