Model Number HIT-N220A01
STC Rating 220.0
PTC Rating 204.4
Open Circuit Voltage (V) 52.3
Short Circuit Current (A) 5.65
Frame Color Black
Origin US/Mexico
Power % ± 0/10
(W/ft²) 16.22
Area (ft²) 13.6
Weight (lbs) 35.3
Length (in) 62.20
Width (in) 31.40
Height (in) 1.80

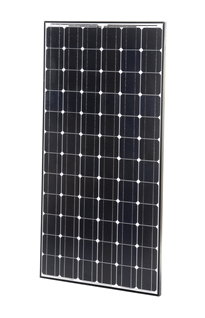

Sanyo Panasonic HIT-N220A01 Solar Panels

High Efficiency
Sanyo 220 watt solar panels using HIT Power technology have a higher sunlight conversion efficiency than other solar panels. Obtain maximum power within a fixed amount of space. Save money using fewer system attachments and racking materials, and reduce costs by spending less time installing per watt.

Power Guarantee
SANYO’s power ratings for HIT-N220A01 220 watt solar panels guarantee customers receive 100% of the nameplate rated power (or more) at the time of purchase, enabling owners to generate more kWh per rated watt, quicken investment returns, and help realize complete customer satisfaction.

Temperature Performance
As temperatures rise, HIT Power solar panels produce 10% or more electricity (kWh) than conventional crystalline silicon solar panels at the same temperature.

Proprietary Technology
HIT solar cells are hybrids of single crystalline silicon surrounded by ultra-thin amorphous silicon layers, and are available solely from SANYO. HIT Power models are ideal for grid-connected solar systems, areas with performance based incentives, and renewable energy credits.

Structural Strength
The HIT Power 220A power panel has a double-wall black anodized aluminum frame for extra strength. These modules are tested to 60PSF. All HIT Power panels come pre-equipped with a touchsafe junction box, USE-2 outdoor rated cables, MC4 locking connectors. All modules are UL 1703 safety rated for wind, hail, and fire.

Valuable Features
The HIT Power 220A solar panel operates silently, has no moving parts and is among the lightest per watt in the industry. Unique eco-packaging minimizes cardboard waste at the job site. The packing density of the panels reduces transportation, fuel, and storage costs per installed watt.

Quality Products
SANYO silicon wafers located inside HIT solar panels are made in California, USA, and the panels are assembled in an ISO 9001 (quality), 14001 (environment), and 18001 (safety) certified factory. The panels have a Limited 20-Year Power Output and 5-Year Product Workmanship Warranty.

  • 220 Watt Peak Output
  • Cell Efficiency: 18.4%
  • Module Efficiency: 16.3%
  • 5 Year Workmanship Warranty, 20 Year Power Output
  • Hybrid mono crystalline silicon with amorphous silicon layers
  • Perfect for high-power grid-tie and high-power battery charging
  • HIT Power 220A Solar Panel Technology
