Silevo Triex U305 Solar Panel

Availability: Call For Availability



Silevo Triex U305 305 Watt Solar Panel

  • 18.3% Module Efficiency
  • For high-performance commercial or residential PV systems
  • High CEC rating of 285.3
  • Hybrid Tunneling-Junction cell architecture
  • Anodized weatherproof frame
  • Compare to the LG 305 Mono-X

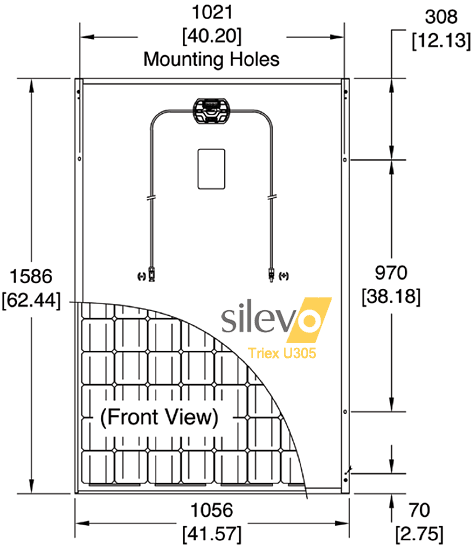

Silevo Triex U305 Dimensions

Triex U305 Review

Silevo U305 Solar Panel

Double click on above image to view full picture

Zoom Out
Zoom In


Silevo Triex
305 Watt Solar Module w/ Triex Hybrid Tunneling Junction Solar Cells
Silevo Model Number U305
STC Rating 305.0 Watts
PTC Rating 285.3
Open Circuit Voltage (Voc) 69.8 Volts
Short Circuit Current (Isc) 5.68 Amps
Frame Color Silver or Black
Power Tolerance 0/+5%
Module Efficiency 18.3 %
Area 18.02 ft²
Weight 41.9 lbs.
Length 62.44 in.
Width 41.57 in.
Height 1.6 in.

Manufacturer Specification Sheets

View FileSilevo Triex U-Series Datasheet    Size: (431.69 KB)
View FileSilevo Triex CSA Certificate of Compliance    Size: (92.66 KB)
View FileSilevo Triex TÜV Certification    Size: (1.86 MB)


Complete Silevo Triex U305 solar systems available!

Solar Electric Supply not only provides wholesale Silevo solar panels, we also provide complete systems using Triex solar modules at a wholesale system price.

Systems Include:

Silevo Triex U305 solar panels
Micro-inverters or stand-alone grid-tie inverter
Roof or ground mount
Schematic and installation support.

New low Silevo / SolarEdge Optimizer system pricing available for 2014. Possibly the most efficient system available today.

Contact us for the latest standard or custom grid-tie Silevo Triex solar panel systems at a wholesale price.

Silevo solar system


Silevo Triex U305 Hybrid Tunneling-Junction Solar Panel Efficiency

The California Energy Commission's PTC test is designed to simulate module performance closer to real-world conditions, primarily at elevated air temperature rates. CEC’s PTC/STC ratio for the Silevo Triex solar panel was 93.45%. The success comes from the inherent temperature coefficient superiority within the cell architecture. This architecture employs an amorphous silicon layer (hybrid) that provides improved higher open voltage in Silevo solar panels, compared to other conventional and advanced cell designs.

Silevo’s Triex® PV modules demonstrate one of the highest energy densities in the industry.

Triex modules recently passed stringent Potential Induced Degradation (PID) and extended Damp Heat (DH) testing, during which modules are biased at high voltages and also exposed to elevated temperatures and humidity levels. The PID and DH tests were conducted by Renewable Energy Test Center (RETC), a TÜV SÜD America’s partner for solar panel testing.

Silevo Triex U305 Solar Panel Certifications

triex module info

Contact us for low wholesale discount pricing, solar panel systems or reviews for the Silevo Triex U305 305 watt solar panel.
