SimpliPHI 19.95 Battery System Specifications
| Model | SPHI-19.8-LO |
| Total Capacity | 19.95 kWh (19,950 Wh) |
| Nominal Voltage | 51.2 VDC |
| Charge Power | 9.98 kW |
| Discharge Power | 13.98 kW |
| Surge Power (10s) | 17.5 kW |
| Continuous Discharge Current | 273 ADC |
| Operating Temperature | -20Ā°C to 55Ā°C (-4Ā°F to 131Ā°F) |
| Cycle Life | 4,500 cycles @ 100% DOD |
| Round-Trip Efficiency | ā„96% |
| IP Rating | IP65 (when installed) |
| Total Weight | 375 lbs (170.1 kg) |
Complete roof mounted solar systems engineered for durability and ease of installation. Our premium kits include IronRidge XR rail systems, compatible with all our solar panels and available for all roof types, with special options for tile, flat, and metal roofs at competitive wholesale pricing.
Briggs & Stratton SimpliPHI 19.95 kWh Home Battery System
SKU BAS-SIMPLIPHI-19.95-TRIPLE

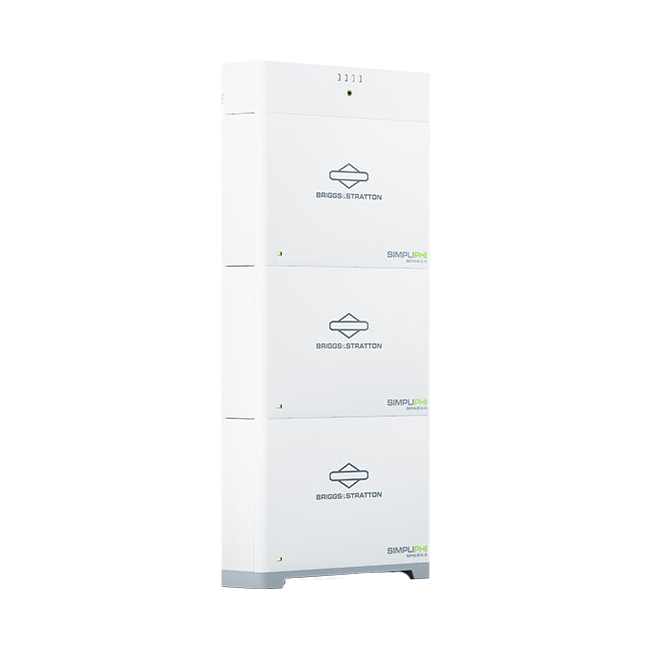

The SimpliPHI 19.95 kWh Battery System
The SimpliPHI 19.95 kWh battery system combines three 6.65 kWh modules in a maximum 3-stack configuration, delivering comprehensive energy storage capacity for larger residential installations. This configuration provides extended backup duration for whole-home power while supporting high-demand electrical loads including electric vehicle charging, pool equipment, and workshop machinery.
Built with triple lithium ferro phosphate (LFP) modules, this 3-stack configuration provides 13.98 kW of continuous discharge power and 9.98 kW of charge power, making it suitable for comprehensive backup power, solar energy storage, and time-of-use optimization for larger energy consumers. The system maintains full outdoor rating when properly installed, eliminating the need for additional protective enclosures while maximizing energy density in a compact vertical footprint.
SimpliPHI 19.95 kWh Battery System Features
- Maximum Stack Capacity: Three 6.65 kWh modules deliver 19.95 kWh total capacity with 13.98 kW continuous discharge for extended whole-home backup power.
- High-Power Applications: 273 ADC continuous current and 17.5 kW surge capability supports electric vehicle charging, pool equipment, and high-demand appliances.
- Maximum Stack Installation: Complete 3-module system installs in under 5 minutes using RapidStakā¢ connectors in the maximum allowable stack configuration.
- System Scalability: Multiple 3-stacks can be combined for up to 18 total modules system-wide, achieving 119.7 kWh of total energy storage.
- Triple Module Management: Individual battery management systems in each module provide comprehensive monitoring and safety control across all three units.
SimpliPHI's Seamless Inverter Integration
The SimpliPHI 19.95 kWh system integrates seamlessly with Sol-ArkĀ® 8K-2P, 12K-2P, and 15K-2P inverters through full closed-loop communication, providing advanced monitoring and optimization across all three modules simultaneously. The system also maintains broad compatibility with any 48V lithium-supporting inverter in non-communicating mode, ensuring flexibility with existing equipment preferences.
SimpliPHI 19.95 kWh Battery System Review
The SimpliPHI 19.95 kWh 3-stack configuration represents the maximum single-stack capacity in the SimpliPHI platform. The triple-module design delivers substantial backup duration for whole-home scenarios while supporting high-demand applications like electric vehicle charging and workshop equipment. The 273 ADC continuous discharge current provides exceptional power delivery capability, effectively managing multiple high-draw loads simultaneously during extended outages.
The IP65 outdoor rating proves essential for 3-stack installations where the increased physical footprint and weight (375 lbs) make outdoor placement preferable to indoor installations. The weatherproof design allows ground-mounting or wall-mounting without requiring structural modifications to accommodate triple-module weight in interior spaces. The 0.70 C-rate across the three modules optimizes power delivery while maintaining long-term cycle life, and the compact 60.4" vertical height maximizes energy density while minimizing ground footprint.
SimpliPHI 19.95 kWh Accessories
SimpliPHI 6.6 Floor Mount Base
Secure floor mounting solution designed specifically for the SimpliPHI 6.6 battery system. One floor mount base required per battery system for stable ground installation.
SimpliPHI 6.6 Wall Mount Base
Space-saving wall mounting solution for the SimpliPHI 6.6 battery system. One wall mount base required per battery system for secure vertical installation.
SimpliPHI Battery Controller
Essential battery management controller with 10-year warranty. One battery controller required per SimpliPHI 6.6 system for optimal performance and monitoring.
