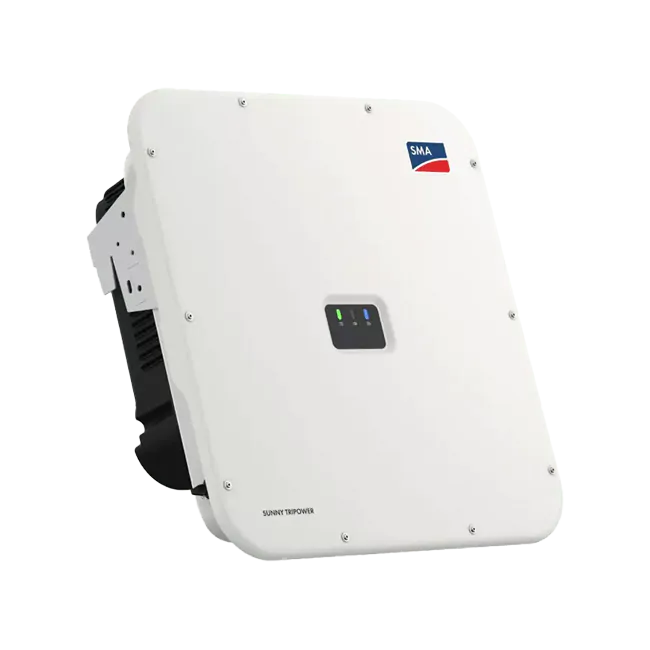

SMA Sunny Tripower X 13-US (208V)

Model	Sunny Tripower X 13-US (208V)
Inverter Type	3-Phase Commercial String Inverter (Transformerless)
Nominal Output Power	13,000 W (13,000 VA)
Maximum Array Power	26,000 Wp (200% DC:AC)
Nominal AC Voltage	208 V / 120 V, 3-Phase (3-(N)-PE)
Maximum Output Current	36 A
CEC Efficiency	97 %
Maximum System Voltage	800 V
MPPT Operating Voltage Range	150-800 V
MPP Trackers / Strings per MPPT	3 / 2
Max. Input Current per MPPT (Imp)	24 A
Dimensions (W x H x D)	28.7 x 30.0 x 10.5 in
Weight	77 lbs (35 kg)
Certifications	UL 62109-1, UL 1699B, UL 1741 SB, IEEE 1547:2018, UL 3741, CSA C22.2 No. 62109

Explore current wholesale solar panel pallet specials from
Solar Electric Supply.

View Solar Panel Specials

SMA Sunny Tripower X 13-US (208V) Commercial Inverter

Name: SMA Sunny Tripower X 13-US (208V) Commercial Inverter
SKU: SMA-TRIPOWER-X-13-US-208

SKU SMA-TRIPOWER-X-13-US-208

Sunny Tripower X 13-US (208V) Inverter

The SMA Sunny Tripower X 13-US (208V) is the centerpiece of the proven SMA Commercial Energy Solution, a 13 kW, 800 VDC three-phase inverter purpose-built for small to medium-sized commercial systems on 208 V grids. An integrated System Manager brings complete energy management together with state-of-the-art inverter technology in a single device, supporting applications such as banks, multi-tenant retail centers, educational campuses, and light industrial facilities.

Designed for versatility, the Sunny Tripower X delivers flexible system design and high-performance energy production. A wide 150-800 V DC operating window across three MPP trackers suits rooftops, carports, and repowering of aging PV systems, while 200% DC:AC oversizing (26,000 Wp max array) with 24 A Imp / 37.5 A Isc ratings and 97% CEC efficiency maximizes yield from today's high-wattage modules. Whether the objective is peak shaving, load shifting, or real-time monitoring, it helps businesses optimize energy use and long-term performance.

Sunny Tripower X 13-US (208V) Features

Integrated System Manager: Monitoring and control for up to 5 inverters (max. 150 kVA), with SMA Dynamic Power Control and remote access via Sunny Portal powered by ennexOS.
Three MPP Trackers: A wide 150-800 V DC operating window across three trackers enables flexible array design for rooftops, carports, and repowering projects.
200% DC:AC Oversizing: 24 A Imp / 37.5 A Isc ratings let you load the inverter with high-wattage modules to maximize energy harvest.
Enhanced Safety: Integrated SunSpec PLC signal for module-level shutdown, advanced DC AFCI arc-fault protection, and optional DC Type 2 / Type 1+2 surge protection.
Maximum Yields & Diagnostics: SMA ShadeFix string-level optimization and an integrated I-V curve diagnostic function support performance and faster service.

SMA Smart Connected & ennexOS

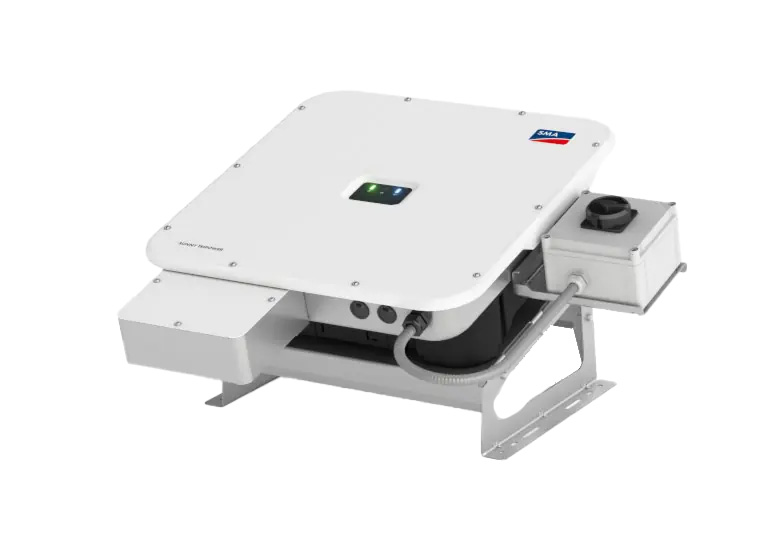

SMA Sunny Tripower X commercial inverter

The Sunny Tripower X is part of the SMA Energy System Business and uses the ennexOS cross-sector energy management platform for monitoring, control, and service from one interface. SMA Smart Connected adds proactive monitoring that detects issues early and streamlines service, helping commercial operators keep systems online and optimize long-term performance.

Attachments Details

SMA Sunny Tripower X 13-US (208V) Technical Review

The SMA Sunny Tripower X 13-US (208V) is a 13 kW three-phase commercial inverter purpose-built for small to medium-sized systems on 208 V grids. Its three MPP trackers operate across a wide 150-800 V DC window up to an 800 V maximum DC voltage, giving designers flexibility to lay out rooftops, carports, and repowering projects for aging PV systems, without compromising production. With 200% DC:AC oversizing (26,000 Wp maximum array power) and 24 A Imp / 37.5 A Isc input ratings, the inverter pairs well with today's high-wattage modules to maximize energy harvest for banks, multi-tenant retail centers, educational campuses, and light industrial facilities. It delivers 13,000 W (13,000 VA) of three-phase output at 208 V / 120 V with a 36 A maximum output current and a 97% CEC efficiency.
