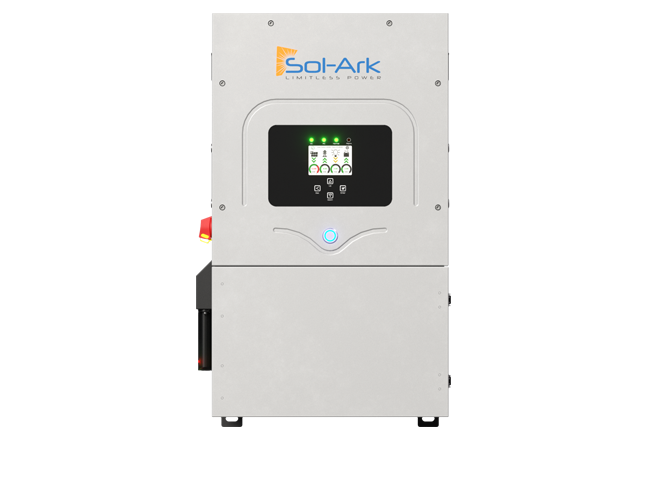

Sol-Ark 12K-2P-N Residential Inverter
Model Sol-Ark 12K-2P-N
Max PV Power (STC) 13,000W
Nominal AC Voltage 120/240V, 120/208V, 220V
Nominal DC Voltage 48V
Number of MPPT 2
MPPT Voltage Range 150 - 425V
Battery Technologies Lithium / Lead Acid
Ambient Temperature -25~55°C, > 45°C Derating
Standard Warranty 10 Years
Dimensions (H x W x D) 29.5 x 17.7 x 10 in
Weight 35.4 kg / 78 lb.
Enclosure IP65 / NEMA 3R
Certifications and Listings UL1741-2010/2018, IEEE1547a 2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H

Never Lose Power Again:
Upgrade Your Solar System Today!

Sol-Ark 8K-2P-N Residential Inverter

We offer top-tier battery backup solutions compatible with major brands like SolarEdge, Enphase, SMA, and Fronius.

Contact Us

Sol-Ark 12K-2P-N Residential Hybrid Solar Inverter

SKU SOL-ARK-12K-2P-N-HYBRID-INV
$5,299.00
SolarEdge

Sol-Ark 12K-2P Residential Hybrid Solar Inverter

Introducing the Sol-Ark 12K-2P-N Residential Hybrid Inverter, a powerful and versatile solution for your solar energy needs. This inverter is designed to maximize your solar power production while providing reliable backup power during grid outages.

With its advanced features like SmartSensor™ and AI-powered smart load management, the Sol-Ark 12K-2P-N optimizes your energy output and helps you save on electric bills.

Sol-Ark 12K-2P Hybrid Inverter Features

13 KW Solar Input Power

Features x2 built-in MPPT for a maximum DC coupled power of 13,000 W, a max AC coupled solar input of 9,600 W, and a max combined solar input of 16,000 W.

9 KW Output Power Off-Grid

Delivers a continuous AC power output of 9,000 W and supports 120/240/208V connections for off-grid applications.

Battery Agnostic

Supports both lead acid and lithium battery chemistries with a 48V nominal battery voltage and a 185A continuous battery charging output.

Inverter-Integrated Transmitter

The Sol-Ark 12K-2P-N inverter comes with an integrated transmitter that provides the necessary "heartbeat signal" for Rapid Shutdown Device (RSD) functionality. TX-12K-A Specification Sheet.

Sol-Ark 12K-2P Monitoring Technolgies

The Sol-Ark 12K-2P-N comes equipped with advanced monitoring technologies to keep you informed about your solar system's performance. The included Wi-Fi, Ethernet and local monitoring allow for easy remote monitoring and control. Additionally, the inverter supports generator start communication for whole-home backup.

Sol-Ark 12K-2P-N Protections & Certifications

This inverter is certified to meet the latest industry standards, including UL1741-2010/2018, IEEE1547a 2003/2014, FCC 15 Class B, UL1741SA, CA Rule 21, and HECO Rule 14H. It also features integrated protection mechanisms and closed loop communication with most high-end lithium batteries.

  • PV DC Disconnect Switch — NEC 240.15
  • Ground Fault Detection — NEC 690.5
  • PV Rapid Shutdown Control — NEC 690.12
  • PV Arc Fault Detection — NEC 690.11
  • PV input lightning protection
  • PV string input reverse polarity protection
  • AC output breaker (63A)
  • 250A battery breaker/disconnect
  • DC Type II and AC Type II surge protection

Sol-Ark 12K-2P-N Residential Hybrid Inverter Review

The Sol-Ark 12K-2P-N Residential Hybrid Inverter is a transformerless DC device that can convert up to 13,000W of solar power into 9,000W of continuous AC power. It features two MPPT trackers, enabling it to handle multiple PV strings with a wide voltage range (175-425V). The inverter has a 48V lithium or lead-acid battery input with a capacity range of 50-9900Ah and a 3-stage charging controller with equalization. It supports both grid-tied and off-grid operation, with a backup transfer time of 4ms, and includes various communication options like Wi-Fi, Ethernet, and local monitoring. The inverter complies with UL, IEEE, FCC, and NEC standards and offers comprehensive protection features, including lightning protection, reverse polarity protection, and arc fault detection. Additionally, it supports generator start communication for whole-home backup.

Sol-Ark 12K-2P-N Residential Hybrid Inverter

Sol-Ark Inverters and Batteries: The Perfect Solution for NEM 3.0

As NEM 3.0 reshapes the solar energy landscape in California, Sol-Ark inverters and batteries emerge as the perfect solution for homeowners seeking to optimize their solar investments. With their battery agnostic design, time-of-use optimization, grid export control, and reliable performance, Sol-Ark inverters empower users to maximize solar savings, reduce electric bills, and achieve greater energy independence.

Utility Bill Offset Graph
Battery Agnostic

Battery Agnostic

One of the key advantages of Sol-Ark inverters is their battery agnostic design. This means that homeowners can choose from a wide range of 48V battery chemistries, including both lead-acid and lithium-ion options. This flexibility allows customers to select a battery that aligns with their specific needs, preferences, and budget.

NEM 3.0 TOU Monitoring capabnilities

Time-of-Use Optimized

Sol-Ark inverters come equipped with advanced time-of-use (TOU) metering capabilities, enabling homeowners to track and optimize their energy usage in real-time. By leveraging TOU rates, users can strategically charge their batteries during off-peak hours when electricity prices are lower and discharge stored energy during peak hours when rates are higher.

Grid Export Control

Grid Export Control

Under NEM 3.0 regulations, managing grid export is crucial to avoid exceeding export limits and incurring additional charges. Sol-Ark inverters tackle this challenge head-on with their built-in grid export control feature. By precisely regulating the amount of power exported to the grid, Sol-Ark inverters help homeowners stay within the NEM 3.0 guidelines.
