Pad-Mounted Outdoor Four Group 8D Battery Enclosure

AL-PAD-4-8G8DN Enclosure Specifications

Model	MAPPS^® Chest 4 Series (AL-PAD-4-8G8DN)
Battery Compatibility	Supports 4 Group 8D batteries 4x 8G8D 4x 8A8D 4x 8G4D
Optional NEMA Rating	UL NEMA 3R Certification
Construction	White powder-coated aluminum with stainless steel hinges
Dimensions	24"H × 49.25"W × 29.25"D
Enclosure Weight	127 lbs
Mounting Method	Pedestal base for pad mounting
Ventilation	Filtered louver vents
Insulation	Heavy-duty Styrofoam insulation
Security	2 padlockable draw latches (3/8" max shackle)
Origin	USA manufactured
Warranty	1 Year Limited

MAPPS Remote Off-Grid Solar Power Systems

MAPPS^® Remote Solar Power Systems

SES MAPPS^® Remote Solar Systems deliver reliable off-grid power for critical applications like SCADA monitoring, emergency response, and telecommunications. These complete turnkey packages combine premium solar panels, sealed batteries, and protective enclosures for years of maintenance-free operation.

Learn More about SES MAPPS^®

MAPPS Chest 4 Series (AL-PAD-4-G8DN) Solar Battery Enclosure

Name: MAPPS Chest 4 Series (AL-PAD-4-G8DN) Solar Battery Enclosure
SKU: AL-PAD-4-G8DN

SKU AL-PAD-4-G8DN

Pad Mounted Solar Battery Enclosures

The MAPPS^® Chest 4 Series (AL-PAD-4-8G8DN) is a large pad-mounted weatherproof battery enclosure designed for permanent ground installations requiring substantial battery capacity and system integration. This white powder-coated aluminum enclosure accommodates up to four Group 8D batteries with a chest-style top-opening design and pedestal base for secure concrete pad mounting.

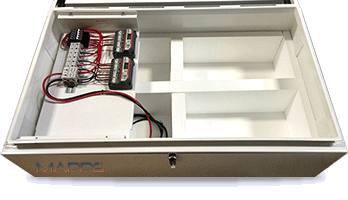

AL-PAD-4-8G8DN Battery & Control Enclosure Pad Mount

Built for extreme environmental conditions, the MAPPS^® Chest 4 Series features heavy-duty Styrofoam insulation for temperature control, stainless steel hinged doors, and filtered louver vents for optimal battery ventilation.

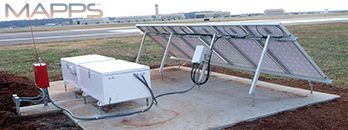

Off-Grid Battery Powered Applications

No matter what extreme environment on Earth: arctic, desert, coastal or tropical, the MAPPS^® AL-PAD-4-8G8DN is built to handle it. Our complete solar battery systems can power: weather stations, traffic signals, street lights, intelligent transportation systems, LED obstruction lighting, well site automation, environmental monitoring, UPS battery backup systems, emergency battery kits, process control and solar instrumentation.

MAPPS^® Chest 4 Series Features

Extreme Weather Protection: Heavy-duty Styrofoam insulation and weatherproof construction for arctic, desert, coastal, and tropical environments
Maximum Battery Capacity: Accommodates four Group 8D batteries providing substantial energy storage for extended runtime applications
Permanent Installation: Pedestal base design for secure concrete pad mounting with chest-style top access for maintenance
Enhanced Security: Dual padlockable draw latches supporting up to 3/8" shackle diameters for maximum theft protection
Climate Control: Heavy-duty insulation maintains optimal battery temperatures while filtered vents prevent debris ingress

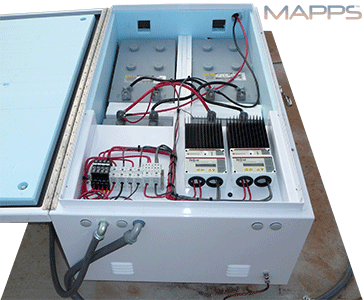

Professional Integration: Multiple conduit knockouts and DIN rail mounting for complex control and monitoring systems

MAPPS^® Chest 4 Series Options & Upgrades

Removable radio shelf available
DIN Rail for equipment loads

MAPPS Battery Enclosure Options & Upgrades

SunSaver or ProStar controllers pre-wired
DC to AC inverters pre-wired
DC to DC converters pre-wired
Polyphaser surge protection for radios
POE's pre-wired and installed on backplate
Additional DC load breakers

Details

MAPPS^® Chest 4 Series Solar Battery Enclosure Review

The MAPPS^® Chest 4 Series (AL-PAD-4-8G8DN) represents a professional-grade solution for permanent ground-mounted battery installations requiring maximum capacity and extreme weather protection. The chest-style design with heavy-duty insulation enables operation in the harshest global environments while the pedestal mounting system provides secure installation on concrete pads. The four Group 8D battery capacity delivers substantial energy storage for critical infrastructure applications.

Engineering details include white powder-coated aluminum construction for UV resistance and aesthetic integration, with stainless steel hinges for long-term durability. The insulated design maintains optimal battery temperatures across extreme temperature ranges while filtered louver vents provide necessary ventilation. The dual padlockable draw latch system offers maximum security for high-value installations, with multiple conduit knockouts enabling professional integration of control systems, monitoring equipment, and power conversion devices.
