MAPPS AL-POL-2-8G8DN NEMA 3R Large Battery Enclosure

Availability: Call For Availability


remote solar battery box sun
battery enclosures for remote off-grid solar panel systems

MAPPS off-grid solar system battery enclosures logo
Solar System Battery Enclosures

MAPPS AL-POL-2-8G8DN NEMA 3R Large Battery Enclosure

two group 8D battery box
Enclosure shown with optional white powder coat.

Industrial Strength · Durable NEMA 3R Design

Designed for long-life outdoors, the MAPPS AL-POL-2-G8DN NEMA 3R Battery & Control Enclosure features mill finish aluminum and filtered vents (white polyester powder coating available).

This corrosion-resistant weatherproof battery box holds up to two Group 8D sealed 12 volt batteries. A charge controller may be mounted and pre-wired on a 12" DIN rail with solar/battery/load breakers. Unistrut brackets for a pole/wall mount is included.

Solar Battery Powered Applications

A wide variety of possible applications include: radio cabinets, remote water management, environmental monitoring, roadway signaling, mobile security, power over ethernet devices, and UPS battery backup systems.

Large NEMA 3R Battery Enclosure Details

enclosure box lockable latch
The compression latch for locking includes a 5/16" and 1/4" shackle.
  • NEMA 3R design with filtered louver vents
  • Mill finish aluminum w/ color powder coat available
  • Stainless steel hinged doors
  • Dual compression latches, one for locking
  • 2-piece pole clamps up to 12" SCH40
  • Conduit knockouts for easy connections of grid, solar or loads
  • Flexible mounting options include a wall mounting flange bracket
  • Can accommodate: 2X 8G8D, 2X 8G4D, 2X 8G31, 3X 8G31, 4X 8G31, 6X 8G31, 2X 12SC265 batteries.

MAPPS Battery Box Enclosure Options and Upgrades

inside Group 8D battery box enclosure
Opening the battery enclosure reveals the filters, battery shelf and DIN rail.
  • Removable radio shelf available
  • Powder Coated Finish white or custom color
  • DC to AC inverters pre-wired
  • DC to DC converters pre-wired
  • SunSaver or ProStar controllers pre-wired
  • Polyphaser surge protection for radios
  • 20.75" W X 4.25" H backplate
  • Removable shelf with larger 20.75" W X 15" H backplate
  • DIN Rail for equipment loads
  • POE's pre-wired and installed on backplate
  • Battery insulation kit for extreme temperatures

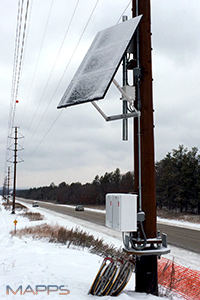

pole mounted wireless utility meter battery solar system

Over 20 Years of Remote Off-Grid Solar Experience

Solar Electric Supply's years of PV expertise allow us to offer a wide variety of time-tested heavy-duty aluminum outdoor rated battery enclosures for remote industrial applications including solar and UPS.

We offer enclosures for single and multiple batteries, solar controllers, DC to AC inverters, DC to DC converters, POE's and customer supplied loads.

Contact us with your solar powered application today. OEM pricing available.

Contact us toll-free: (877) 297-0014

MAPPS NEMA 3R Two Group 8D Battery Enclosure

Double click on above image to view full picture

Zoom Out
Zoom In


remote off-grid solar battery enclosures header
SES MAPPS Battery Box Enclosure
Model Number AL-POL-2-8G8DN
Battery Compatibility


  • 1-2x 8G8D
  • 1-2x 8G4D
  • 3-6x 8G31
  • Designed For:
    Sealed VRLA Lead Acid Gel and AGM Batteries, Advanced Energy Storage Lithium Iron Phosphate, LiFePO4, Li-ion

    Mounting Method Standard pole mount (up to 12") or optional wall mounting flange bracket
    Enclosure Construction NEMA 3R milled aluminum w/ stainless steel hinges and louvered vents
    Dimensions 30.2"H, x 24.7"W x 14.5"D
    Enclosure Weight 42 lbs.
    Warranty 1 year limited warranty
    Origin USA
    List Price $1,052.00
    $1,214.00 w/ white powder coat

    Manufacturer Specification Sheets

    View FileSES MAPPS AL-POL-2-8G8DN-Battery Enclosure Dimensions    Size: (93.43 KB)
    View FileMAPPS AL-POL-2-8G8DN Battery Component layout    Size: (93.71 KB)


    MAPPS AL-POL-2-8G8DN Large Solar NEMA 3R Battery Box Enclosure Review

    group 8D solar battery boxes on utility power pole
    2 enclosures may be used instead of one larger box for more battery capacity.

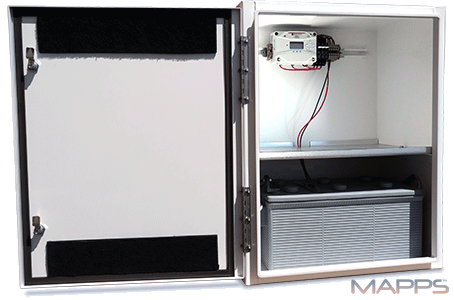

    ProStar controller with load center and Group 8D Gel battery
    ProStar charge controller, load center with breakers and one Group 8D gel battery leaves plenty of room for radio and monitoring equipment.
    group 8D solar battery boxes on utility power pole

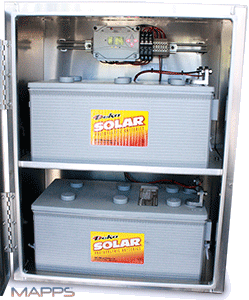

    2 Deka Solar 8G8D gel cell batteries with ProStar charge controller and load center with breakers.
    ProStar controller with load center and Group 8D Gel battery
    6 Deka Solar 8G31 gel cell batteries with ProStar charge controller and load center with breakers.

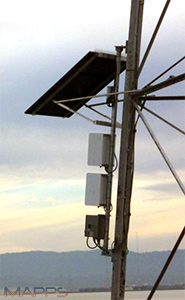

    utility power tower solar system
    Solar panel system for remote power on a utility transmission tower.
