VLS-50-T 50 watt Off-Grid Solar Panel

Availability: Call For Availability

Features

VLS-T Value Line Series off-grid solar panel logo

VLS-50-T Solar Panel

50 watt off-grid solar panel

The 50 watt VLS-50-T Value Line Solar Panel is a high quality industrial solar PV module that is engineered to be reliable. It has been designed for off-grid solar applications. This rugged PV module features a 3.2mm tempered glass front that is impact resistant and has excellent light transmission. The sturdy frame is silver anodized aluminum for corrosion resistance, strength and durability.

Pre-drilled holes allow for easy mounting to mounting frame. The white polyester backing insures long performance life under the most demanding environmental conditions. The solar cells are encapsulated in EVA and bonded to the polyester backsheet. The 36 solar cells are connected in series for maximum battery charging performance. A weather proof junction box allows for connection with a waterproof strain relief connector and conduit or weather resistant output cable for easy connection to a controller.

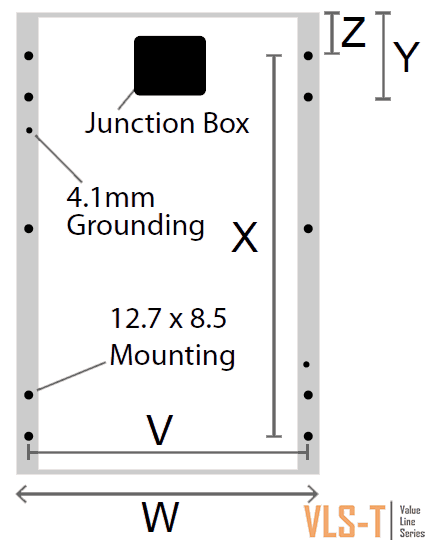

VLS-50-T Solar Panel Dimensions

Dimensions (LxWxT) 32.9 in. x 21.1 in. x 2 in.
Mounting Holes
Z 2.2 in.
Y 5 in.
X 22.9 in.
V 19.8 in.

VLS-T 50 watt solar panel review

Wholesale VLS-50-T 50 Watt Off-Grid Solar Panel for 12 Volt DC

Double click on above image to view full picture

Zoom Out
Zoom In

Specifications

Quality off-grid battery charging PV modules.
VLS-T Value Line Series Solar Panels
SES Model Number VLS-50-T
STC Rating 50.0 Watts
Max. Operating Voltage (Voc) 17.9 Volts
Short Circuit Current (Isc) 2.9 Amps
Frame Color Silver
Cell Arrangement 36 (4x9)
Weight 13.2 lbs.

off-grid junction box
The junction box included on all VLS-T off-grid solar panels is
IP65 rated weatherproof with terminal strips and knockouts.

Outdoor Off-Grid Solar Panel System

Off-Grid Solar Panel Systems

We supply and design complete off-grid solar panel systems for a wide variety of solar PV powered industrial applications.


Contact Us toll-free at:
(877) 297-0014 for expert assistance.

Details

Off-Grid Solar Panel Applications Include:

Quantity Discounts Available
Contact Us

Off-Grid Solar Panel Pricing

  • OEM Field Instrumentation/RTU’s
  • RV/Marine battery charging
  • Remote Instrumentation
  • Remote Monitoring
  • RTU/SCADA
  • LED Area & Sign Lighting
  • Tank Farm Monitoring
  • Irrigation Control
  • WiFi and WiMax Repeaters
  • Wireless Communications

Contact us toll-free at (877) 297-0014 for low wholesale discount pricing, solar panel systems or reviews for the SES VLS-50-T 50 watt solar panel.
