VLS Value Line Solar VLS-5W Solar Panels

Availability: Call For Availability

Quick Overview

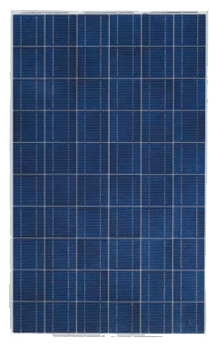

The VLS Value Line VLS-5W are high quality industrial solar modules that include a low iron tempered glass front that is impact resistant and has excellent light transmission. The sturdy frame is clear anodized extruded aluminum for corrosion resistance, strength and durability. Pre-drilled holes allow for easy mounting to mounting frame. The TPT/TPE Tedlar backing insures long performance life under the most demanding environmental conditions. The solar cells are encapsulated in EVA and bonded to the Tedlar backsheet. The 36 solar cells are connected in series for maximum battery charging performance. A weather proof potted junction box with a 15’, #18/2 weather resistant output cable allows for easy connection to a controller.

Double click on above image to view full picture

More Views

Specifications

Model Number	VLS-5W
STC Rating	5.0
PTC Rating	0.0
Open Circuit Voltage (V)	21.4
Short Circuit Current (A)	0.32
Frame Color	Silver
Origin	Taiwan
Power % ±	10/10
(W/ft²)	8.14
Area (ft²)	0.6
Weight (lbs)	1.5
Length (in)	11.80
Width (in)	7.50
Height (in)	1.38

Manufacturer Specification Sheets

VLS-5W Data Sheet Size: (73.64 KB)

Details

Applications include:

Battery Maintenance
OEM Field Instrumentation/RTU's
RV/Marine battery maintenance
Fleet vehicle battery maintenance
Remote field equipment
Expeditions
