Morningstar TriStar TS-MPPT-30 Charge Controller

Availability: Call For Availability

Features

Morningstar Charge Controllers

Morningstar TriStar TS-MPPT-30 Charge Controller

trakstar
  • Maximizes solar battery system energy harvest
  • Extremely high reliability
  • Very high efficiency
  • Extensive networking and communication capabilities
  • Metering and data Logging
  • Certified to IEC 62093

TrakStar MPPT Charging

TriStar MPPT 30
TriStar MPPT 30 w/ optional meter.

The TS-MPPT-30 charge controller uses TrakStar technology for efficient and reliable solar battery charging.

The Morningstar TriStar MPPT 30 charge controller provides 30 amps charge current with up to 150 volts open circuit input. This TriStar MPPT solar charge controller with TrakStar technology is an advanced maximum power point tracking (MPPT) solar battery charger for off-grid solar systems well over 2 kW.

The Morningstar TriStar MPPT solar charge controller provides the industry’s highest peak efficiency of 99% and significantly less power loss compared to other MPPT controllers.

The TriStar MPPT features a smart tracking algorithm that maximizes the energy harvest from the PV by rapidly finding the solar array peak power point with extremely fast sweeping of the entire I-V curve. This product is the first PV controller to include on-board Ethernet for a fully web-enabled interface and includes up to 200 days of data logging.

TriStar MPPT Maximizes Energy Harvest



TrakStar MPPT Technolgy features:

• Better peak power point tracking than other MPPT controllers
• Very fast sweeping of the entire I-V curve
• Recognition of multiple power points during shading or mixed PV arrays
• Excellent performance at sunrise and low solar insolation levels

Solar system enclosure with TriStar MPPT

Extremely High Reliability
• Robust thermal design and no cooling fans
• Parallel circuit design provides less stress and longer life for electronic components
• No mechanical relays
• Extensive electronic protections incl. PV short circuit protection
• Epoxy encapsulated inductors and conformally coated printed circuit boards

Very High Efficiency
• Peak efficiency of 99%
• Proprietary tracking algorithm minimizes power losses
• Low self-consumption
• Continuous operation at full power to 45°C without need to de-rate
• Selected electronic devices with higher ratings to minimize losses from heating



TriStar MPPT charge controllers available with our complete wholesale systems.
Contact us toll-free: (877) 297-0014

Read more about Morningstar TriStar charge controllers.

Morningstar TriStar TS-MPPT-30 Charge Controller

Double click on above image to view full picture

Zoom Out
Zoom In

Specifications

Morningstar TriStar MPPT logo
Power (DC)
Morningstar Model Number TS-MPPT-30
System Voltage 12, 24,36 or 48VDC
Maximum Battery Current 30A
Minimum Operating Voltage 8V
Max. Solar Voltage 150V
Short-Circuit Protection Yes
Over Current Protection Protected
Weight 9.2 lb / 1.6 kg
Meter Optional
Self Power Consumption
w/o meter
<2.7 Watts

Manufacturer Specification Sheets

View FileMorningstar ProStar MPPT Charge Controller Datasheet    Size: (553.08 KB)
View FileMorningstar Warranty    Size: (100.14 KB)

Details

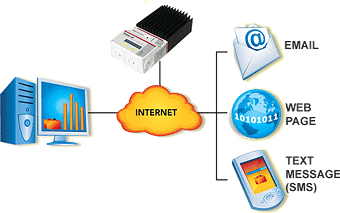

Tristar-Mppt-Web
TriStar MPPT charge controllers can monitor your
solar battery system on your internet connected device.


Extensive Networking and Communications Capabilities

Enables system monitoring, data logging and adjustability. Uses open standard MODBUS™ protocol and
Morningstar’s MS View software.

• Meterbus: communications between compatible Morningstar products
• Serial RS-232: connection to a personal computer
• EIA-485: communications between multiple devices on a bus
• Ethernet: fully web-enabled interface to a local network or internet; view from a web browser or send email/text messages

Metering and Data Logging

• Optional TriStar meter and remote meter provides detailed operating data, alarms and faults
• Three LED’s display system status
• Up to 200 days of data logging via meters or communications ports

TriStar MPPT Certifications

TriStar MPPT certifications

• CE and RoHS Compliant
• ETL Listed (UL1741)
• cETL (CSA C22.2 No. 107.1-01)
• FCC Class B Part 15 Compliant
• U.S. National Electrical Code (NEC) 690.5 Compliant
• Manufactured in a certified ISO 9001 facility

Morningstar Warranty

All of Morningstar’s TriStar charge controllers are warranted to be free from defects in material and workmanship for a period of FIVE (5) years from the date of shipment to the original end user. Morningstar will, at its option, repair or replace any such defective products.



Morningstar TriStar MPPT 30 Charge Controller Options

morningstar mppt options

Morningstar TriStar MPPT charge controllers available with our complete systems.

Contact us toll-free: (877) 297-0014
