Enphase IQ8AC-72-M-US Specifications
| Enphase Model # | IQ8AC-72-M-US |
| Peak Output Power | 366 VA @ 240 VAC 350 VA @ 208 VAC |
| Max. Continuous Output Power | 349 VA @ 240 VAC 345 VA @ 208 VAC |
| Nominal Output Voltage/Range (L-L) | 240 V / 211–264 V 208 V / 183–229 V |
| Max. Continuous Output Current | 1.45 A @ 240 VAC 1.66 A @ 208 VAC |
| CEC Weighted Efficiency | 97.0% @ 240 VAC 96.5% @ 208 VAC |
| Max. Units per 20 A Branch Circuit | 11 @ 240 VAC 9 @ 208 VAC |
| Nominal Frequency | 60 Hz |
| Commonly Used Module Pairings | 295 W – 500 W+ |
| MPPT Voltage Range | 28 V – 45 V |
| Max. Input DC Voltage | 60 V |
| Max. Input Short Circuit Current (Module Isc) | 20 A |

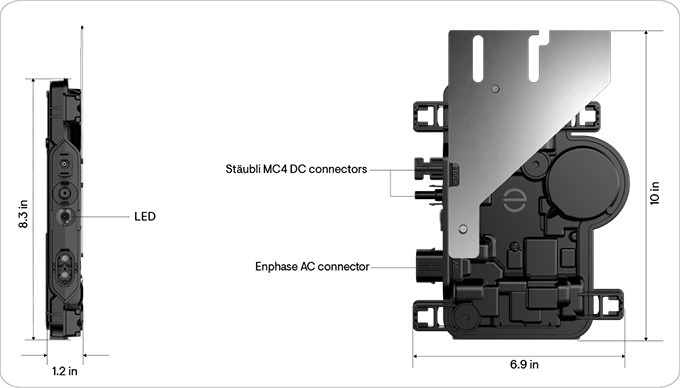

| Dimensions (H × W × D) | 8.3" × 6.9" × 1.2" |
| Weight | 2.43 lbs |
Complete roof mounted solar systems engineered for durability and ease of installation. Our premium kits include IronRidge XR rail systems, compatible with all our solar panels and available for all roof types, with special options for tile, flat, and metal roofs at competitive wholesale pricing.
Enphase IQ8AC-72-M-US Microinverter
SKU ENPH-IQ8AC-72-US-MINV

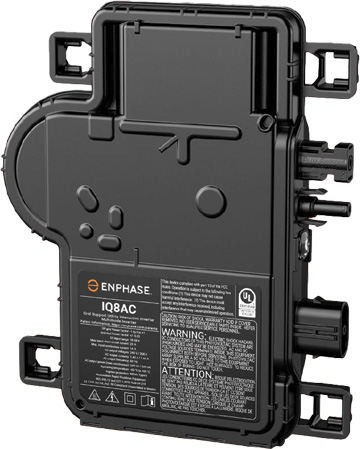

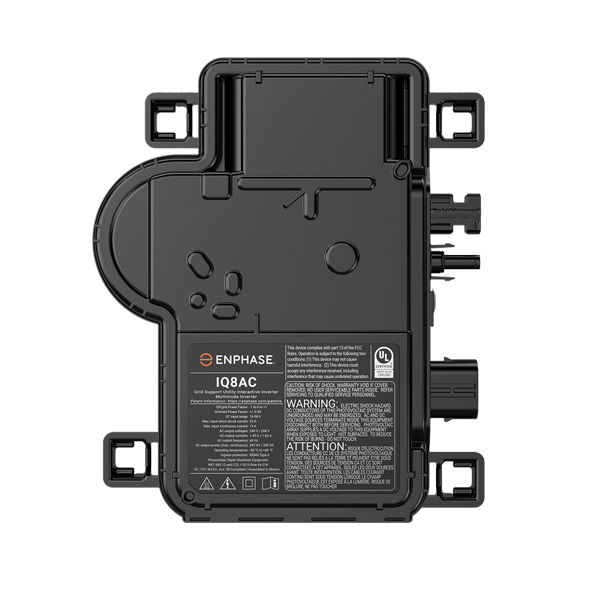

The IQ8AC Microinverter (IQ8AC-72-M-US)
Introducing the Enphase IQ8AC, a high-performance model within the advanced IQ8 Series, the industry’s first microgrid-forming, software-defined microinverters. Featuring efficient split-phase power conversion, the IQ8AC expertly transforms DC power from your solar modules into grid-compliant AC power. Central to its design is Enphase's proprietary application-specific integrated circuit (ASIC), enabling seamless operation in both grid-tied and off-grid modes (when installed with an IQ System Controller 2 or 3), providing outstanding adaptability for modern energy needs.
As a key component of the Enphase Energy System, the IQ8AC Microinverter integrates flawlessly with the IQ Battery, IQ Gateway, and the Enphase App monitoring software. This synergy delivers sophisticated energy management and complete system visibility. Built using advanced 55nm technology, the IQ8AC offers rapid response times to grid fluctuations and changing loads.
IQ8AC-72-M-US Microinverter Features
- Microgrid-Forming Capable: Industry-first technology enables the microinverter to form a microgrid during outages, providing backup power when installed with an IQ System Controller.
- Proven Reliability: Backed by over a million hours of testing and a Class II double-insulated enclosure for long-term performance.
- Optimized for High Power: Designed to work efficiently with the latest high-powered PV modules (up to 460W+).
- Easy Installation: Features lightweight design, plug-and-play MC4 connectors, and simple two-wire cabling for faster setup.
- Advanced Grid Support: Complies with the latest grid requirements, including CA Rule 21 and IEEE 1547:2018, with remote update capability.
Enphase IQ8 Series Warranty
Enphase IQ8 Series Microinverters set new standards for reliability, supported by extensive testing. This confidence allows Enphase to offer an industry-leading limited warranty of up to 25 years, ensuring long-term peace of mind for your solar investment.
Enphase IQ8AC-72-M-US Micro Inverter Review
The Enphase IQ8AC Microinverter, available from Solar Electric Supply, is an excellent choice for customers seeking higher power output paired with cutting-edge microgrid capabilities. Its ability to form a backup power system during grid failures (with the IQ System Controller) provides invaluable energy security. Like all microinverters, the IQ8AC optimizes energy production at the panel level, ensuring maximum yield even if some panels experience shading or obstructions, making it ideal for various roof layouts.
Integrating the IQ8AC into the Enphase Energy System offers a powerful, cohesive smart home solution. When combined with the IQ Battery and IQ Gateway, and managed through the Enphase App, users gain detailed control and monitoring of their energy landscape. For those prioritizing high performance, reliability, and the potential for energy independence, the IQ8AC stands out as a top-tier microinverter option.
Contact Us for the Latest Wholesale Pricing!
Different solar panels, PV mounts, storage, & inverter systems available at low wholesale prices
Contact Us Today for sales, quantity discounts and expert reviews for the Enphase IQ8AC-72-M-US Micro Inverter
