NuSolar PV Ground Mounts

Sleek, rugged solar panel ground mounting structures by NuSolar Technologies.

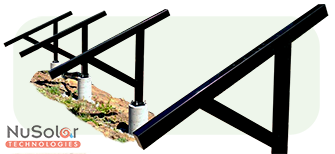

heavy-duty ground mount racking

Sturdy and sleek design

Rugged yet handsome, the NuSolar PV Ground Mount is made with sturdy 4” x 6” square tube steel truss posts and 2” x 2” galvanized steel railing. These ground mount structures are designed and made in the USA to withstand harsh weather conditions like gusty wind and heavy snow.

It's sleek non-obtrusive design fits into residential and commercial environments. Its pleasant aesthetics and robust weatherproof construction make it a primary option for many ground mount PV applications.

Flexible configurations

NuSolar solar panel ground mounts are designed for a variety of system sizes ranging from 4.6 kW to 9.3 kW.

The NuSolar PV Ground Mount is a Complete Kit

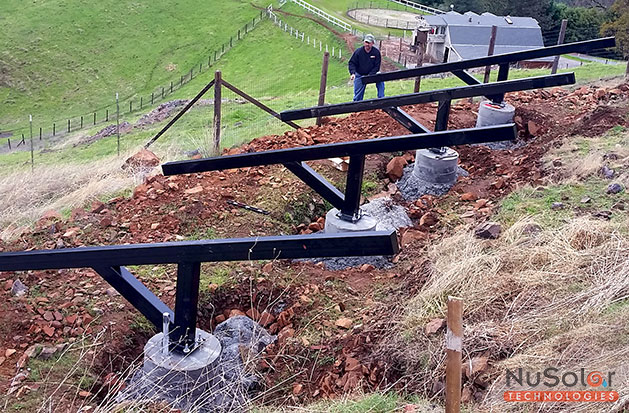

ground mounted PV array under construction
PV Ground Mount construction starts with a level pad and piers made with Sonotube concrete forms.
completed ground mounted solar panel system
The completed PV mounting system is engineered to outlast the solar module array mounted to it.

Features

  • Sleek Design
  • Sturdy Construction
  • Easy Assembly
  • Simple Module & Inverter Mounting
  • Suitable for Multiple System Sizes
  • Made in the USA
  • Engineered to Last
  • Every NuSolar PV Ground Mount Kit ships with:

  • 4” X 6” Square Tube Truss Posts w/ Black Industrial Epoxy
  • 2” X 2” Square Tube Galvanized Steel Rails
  • 2” X 2” Plastic End Caps
  • Pier Foundation Bolt Templates
  • ¾” Dia. 14” J Bolts
  • Box of #14 x 3” Self-Drilling Screws
  • Box of #14 x 2” Self-Drilling Screws
  • ¾” Nuts & Washers
  • User supplied components not included in kit:

  • 24” Dia. Sonotube Concrete Form
  • Concrete
  • #4 Rebar
  •
    NuSolar

    NuSolar PV Ground Mount Layout

    Model
    # of Modules
    Orientation
    PV System Size
    Mount Example
    3P20-9
    18
    3x6 Portrait
    4,680 - 5,580 watts
    3P20-9 mount
    3P20-10
    21
    3x7 Portrait
    5,460 - 6,510 watts
    3P20-10 mount
    4P20-9
    27
    3x9 Portrait
    7,020 - 8,370 watts
    4P20-9 mount
    4P20-10
    30
    3x10 Portrait
    7,800 - 9,300 watts
    4P20-10 mount
    NuSolar

    Ground Mount Pier Footing

    NuSolar Ground Mount installation

    NuSolar ground mount concrete pier


    NuSolar
