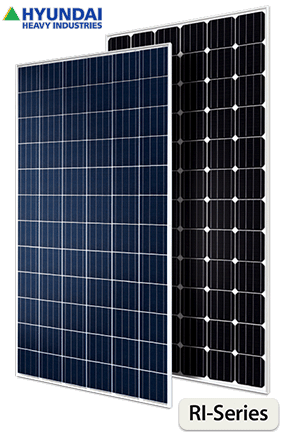

Hyundai Green Energy HiS-S345RI 345W Solar Panel

Availability: Call For Availability

Features

Hyundai Heavy Industries

Hyundai Green Energy HiS-S345RI 345W Solar Panel

Hyundai RI solar panel reliability at a low price
  • 72 Hyundai monocrystalline solar cells in series
  • Anti-reflection coated glass
  • Sturdy aluminum alloy type 6063 frame
  • 4mm² (12AWG) cables with weatherproof connectors
  • IP67 weatherproof junction box (UL Listed)
  • 3 bypass diodes to prevent power decrease by partial shade
  • The HiSS345RI features a clear anodized aluminum frame
  • Fast and inexpensive mounting, delivered ready for connection
  • Made in Hyundai Heavy Industries' Factory in Korea
  • 17.6% module efficiency.

Hyundai HiS RI 4-wire busbar solar cell
Hyundai 4-busbar solar cells use Local Back Surface Field (LBSF) technology on the back side.

Construction
Front : High transmission low-iron tempered glass
Encapsulant : EVA
Back Sheet : Weatherproof film
Frame: Black anodized aluminum alloy type 6063

Hyundai Solar Cell Technology

Hyundai PERL cells are high-efficient monocrystalline cells which adopt LBSF (Local Back Surface Field) technology on the back side. PERL technology provides ultra-high efficiency with better performance in low sunlight. This higher efficiency allows installation capacity in more limited space.

Front Shallow Emitter Structure
Enhanced short wavelength response

Passivation and Back Reflect Layer
Enhanced long wavelength response

Local Back Surface Field Structure
Minimization of back contact area

Low LID / PID
Both LID (Light Induced Degradation) and PID (Potential Induced Degradation) are strictly eliminated to ensure higher actual yield during lifetime.

Hyundai Heavy Industries HiS-S345RI Solar Panel Warranty

Hyundai made in Korea
Hyundai Solar Cells
Made in Korea
10-Year Product Warranty

· 10 years for product defect

25-Year Performance Warranty

• 10 years for 90 % of warranted min. power
• 25 years for 80 % of warranted min. power

Hyundai HiS RI Series Solar Panel Certifications

Hyundai HiS RI certifications

• IEC 61215 (Ed.2) and IEC 61730 by VDE
• UL listed (UL 1703), Type 1 for Class A Fire Rating
• Output power tolerance +3/-0 %
• ISO 9001:2000 and ISO 14001:2004 Certified
• OHSAS 18001:2007 Certified
• Advanced Mechanical Test (5,400 Pa)
/ Mechanical Load Test (40 lbs/ft2) Passed (UL)
• IEC 62716 (Ammonia Corrosion Resistance Test) Passed
• IEC 61701 (Salt Mist Corrosion Test) Passed
• Potential-Induced Degradation (PID) Test Passed
(85˚C / 85 % / 600 hr-PVEL)

Accredited Test Lab
• VDE (Test Data Acceptance Program)
• UL (Witness Test Data Program)

Contact us toll-free: (877) 297-0014

Hyundai Green Energy HiS-S345RI 345W Solar Panel

Double click on above image to view full picture

Zoom Out
Zoom In

Specifications

Hyundai HISS345RI 345W solar module specifications
Model Number HiS-S345RI
STC Rating 345.0 Watts
PTC Rating 313.0
Open Circuit Voltage (Voc) 46.9 Volts
Short Circuit Current (Isc) 9.6 Amps
Frame Color Clear Anodized Aluminum
Cell Type Monocrystalline
Origin Korea
Power Tolerance -0 / +3%
Module Efficiency 17.6%
Area 21.05 ft²
Weight 50.5 lbs.
Length 77.17 in.
Width 39.29 in.
Height 1.57 in.

Low Hyundai Green Energy System Prices

Hyundai solar panel system
Residential Solar System Prices

(877) 297-0014

Manufacturer Specification Sheets

View FileHyundai RI Series 4BB 72-cell Solar Panel Datasheet    Size: (697.84 KB)

Details

Hyundai Green Energy

Hyundai Green Energy Solar Panel Reliability Testing

Hyundai's High Reliability Test Standards

Reliability Test IEC Standards Hyundai Standards
UV Exposure Test 15kWh/m² Long Term: 1,250kWh/m²
Desert Condition: 3,250kWh/m²
Thermal Cycling Test TC 200 Cycles /
HF 10 Cycles
TC 600 Cycles /
HF 30 Cycles
Damp Heat Test 1,000 hours 3,000 hours

Hyundai RI Series solar panels



Contact us toll-free: (877) 297-0014



Thoroughly Tested by Hyundai

Hyundai solar panel field installation test
Hyundai Field Installation Test

Performance Test
Hyundai Heavy Industries (HHI) conducts a maximum power, temperature coefficient, low irradiation, NOCT, field test in order to evaluate performance of Hyundai's solar panels.

  • Solar Simulator Test
  • Maximum Power Test
  • EL Test
  • Field Installation Test
  • NOCT
  • Field Test for Roof
HHI solar panel field performance test
Hyundai Field Performance Test

Field Performance Test
Hyundai conducts field performance tests at their factory in South Korea.

  • Module Aging Test / Inverter Motion Test
  • Generation Test Per Racking
  • Web Monitoring Test / Tracking System (Double Axis)
  • Tracking System / Fixed System
  • PV Tower System / Fixed System
HiS solar Thermal cycling test
Thermal Cycling Chamber

Reliability Test
HHI conducts UV exposure, thermal cycling, humidity freeze, damp heat and pressure cooker tests to evaluate the reliability of their solar panels.

  • UV Exposure Test
  • Thermal Cycling Test
  • Thermal Cycling Chamber
  • Accelerated Aging Test
  • Damp Heat Test
HHI mechanical load test
Mechanical Load Test

Safety Test
HHI Conducts insulation, wet leakage current, mechanical load, hail and hot spot endurance tests to evaluate the safety of their solar panels.

  • Wet Leakage Current Test
  • Hail Test
  • Hot Spot Endurance Test
  • Mechanical Load Test
