LG380N1C-A6 specifications
Model Number LG380N1C-A6
STC Rating 380 Watts
NMOT Rating 285 Watts
Open Circuit Voltage (Voc) 39.4 Volts
Short Circuit Current (Isc) 9.16 Amps
Frame Color Anodized Aluminium
Origin Korea
Power Tolerance -0 / +3%
Module Efficiency 21.0%
Area 19.5 ft²
Weight 41.0 lbs.
Length 68.5 in.
Width 41.0 in.
Height 1.57 in.

Low LG Solar System Prices

View the latest low prices on residential solar systems.
Perfect for the solar contractor or handy homeowner.

Residential Solar System Prices

(877) 297-0014

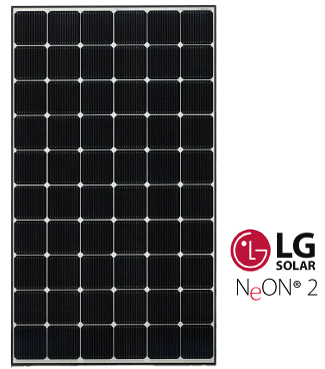

LG NeON 2 LG380N1C-A6 Solar Panel

SKU lg380n1c-a6-neon-2
LG Solar NeON 2
NeoN 2 solar panel cell
Double-Sided Cells
By absorbing light from the rear, the LG NeON™ 2 solar cells increase efficiency over conventional cells in mornings and evenings when the sun's incident angle is lower.

LG NeON 2 LG380N1C-A6 Solar Panel

The LG NeON 2 LG380N1C-A6 is one of the most powerful and best selling solar modules on the market today. Featuring LG’s Cello Technology, the LG NeON 2 increases power output. New updates include an extended performance warranty for higher performance and reliability.

LG NeON® 2 has been designed with aesthetics in mind using thinner wires that appear all black at a distance. The LG NeON® 2 can increase the aesthetic value of your home with a more modern design.

Aesthetically Pleasing Black Solar Panel

LG NeON® 2 has been designed with aesthetics in mind using thinner wires that appear all black at a distance. The LG NeON® 2 can increase the aesthetic value of your home with a more modern design.

NeON 2 LG380N1C-A6 Benefits

LG NeoN 2 25 year warrranty
  • Solar module using high-efficiency NeON 2 monocrystalline cells
  • Enhanced performance warranty
  • Aesthetically pleasing on any roof
  • Very-high power output per square foot
  • 25 year product warranty
Q.ANTUM

Enhanced Performance Warranty
LG NeON® 2 has an enhanced performance warranty. After 25 years, LG NeON® 2 is guaranteed at least 90.6% of initial performance.

All Weather

Solid Performance on Hot Days
LG NeON® 2 Black performs well on hot days due to its low temperature coefficient.

LG Design

Roof Aesthetics
LG NeON® 2 has been designed with aesthetics in mind using thinner wires that appear all black at a distance. The LG NeON® 2 can increase the aesthetic value of your home with a more modern design.

extreme weather rating

25-Year Limited Product Warranty
The NeON® 2 Black is covered by a 25-year limited product warranty. In addition, up to $450 of labor costs will be covered in the rare case that a module needs to be repaired or replaced.

LG NeON 2 certifications

LG380N1C-A6 Certifications

  • EC 61215-1/-1-1/2 : 2016, IEC 61730-1/2 :2016
  • UL 61730-1 : 2017, UL 61730-2 : 2017
  • IEC 62701 : 2012 Severity 6 (Salt mist corrosion test)
  • IEC 62716 : 2013 (Ammonia corrosion test)
  • ISO 9001, ISO 14001, ISO 50001
  • Module Fire Performance Type 1 (UL 61730)
  • Fire Rating Class C (UL 790, ULC/ORD C 1703)

LG NeON 2 Solar Panel Warranty

25 Year Product Warranty

25 Year Limited Power Output Warranty
Linear warranty of 98.5% in the first year. From 2-24th year: 0.33%/year down, 90.6% at year 25.

LG NeON 2 LG380N1C-A6 Solar Panel Review

LG Life's Good

LG NeON 2™ Solar Panel Quality Assurance
Quality-assurance of LG Solar NeON 2 solar panels is a top priority, that's why their solar panels are created using the most technologically advanced processes available. LG's state-of-the-art manufacturing facilities are designed to produce high quality, high performance cell panels that come ready to perform.

About LG and NeON 2 Technology
LG embarked on a solar energy source research program in 1985. This research leading to modern LG solar panel technology was supported by LG Group's rich experience in the semi-conductor, LCD, chemistry and materials industry. LG released the first Mono X series solar panels to the market in 2010. LG Mono X solar panels were exported to 32 countries in the following 2 years thereafter. In 2013, LG NeON (previously known as Mono X NeON) won the "Intersolar Award", which proved LG is the leader of innovation in the industry. With the LG NeON 2 series, small yet significant refinements have been made to be able to provide some of the most efficient, reliable and easy to install solar panels on the photovolaic market today.

NeON 2 Cello solar cell technology
Cello technology used in the LG NeON 2 LG380N1C-A6 solar panel has 12 wires instead of 3 ribbons. This reduces electrical loss by increasing the number of electrical paths in the cell. In addition, the distance between wires is shortened for greater power output and improved aesthetics.

LG Cello Technology™
LG has introduced newly developed Cello Technology™ used in the NeON 2 solar panels (Cell connection with Electrically Low loss, Low stress and Optical absorption enhancement)’ which increases power output and improves reliability.

Cello helps reduce power generation loss by reducing imperfections over time. When a micro crack or finger electrode erosion occurs naturally by mechanisms in the outskirts of the solar cell, the tight layout of wires featured in LG NeON™ 2 Cello technology prevents power reduction from the otherwise blocked electrical path. Cello Technology also improves the absorption of light with circular-shaped wires that scatter light energy more effectively.

Extremely Low LID Cells
The boron (B) and oxygen (O) pair within the p-type cell removes the electrons removes to generate energy. But inside the LG NeON™ 2, there are almost no B-O pairs, eliminating Light Induced Degradation (LID).

Higher Efficiency Installation Savings
Compared to a conventional multi module with 72 cells, LG NeON 2 achieves higher power output with 60 cells, making it easy to manage space when installing large scale systems. Also, with lower Voc than the 72 Cell module, LG NeON 2 increases module quantity per ‘1 string’ decreasing the total number of strings and leading to lower costs.

Enhanced Physical Durability
With its newly reinforced frame design, LG NeON 2 modules are designed to endure a front load up to 6000 Pa, and a rear load up to 5400 Pa.
* Hurricane Katrina (2005. Aug) Max speed : 75m/s

Space-efficient Solar Panel
LG NeON 2 reduces the space needed for installation due to its high module efficiency. The size and efficiency of the modules lets users consider the shadow of physical objects, such as trees or a chimney, resulting in the most optimal system deployment.

High Performance - More Power Generation
The LG NeON 2 maximizes solar power system capacity, producing increased electricity and greater customer savings.

High Performance at Weak Sunlight
LG NeON 2 offers solid performance even on cloudy days due to its low energy reduction in weak sunlight.
