Shell ST20

Availability: Call For Availability


Shell ST20 Solar Module


Shell ST20 Reliable 20 Watt solar module

  • The Shell ST20 module is composed of a monolithic structure of series connected Copper Indium Diselenide (CIS) based solar cells.
  • The Shell ST20 can generate a peak power of 20 watts at 15.6 volts.
  • This is perfect for battery charging applications, especially when used with a charge controller. Applications include industrial, rural home and recreational vehicles where reliable battery charging is needed.

Shell ST20

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Manufacturer Specification Sheets

View FileShell ST20 specifications    Size: (202.11 KB)


All monolithic CIS based Shell solar modules are backed by a 10 year peak power warranty.

Qualifications and Certificates

The Shell ST-20 20 watt solar module meets the following requirements:
· UL - Listing 1703
· All Shell Solar modules are produced in EN-ISO 9001 certified factories.

Limited Warranties

· Peak Power for 10 years
· Product workmanship for 2 years

Easy to Install "Pigtail" Cable

The included two conductor, 5 foot cable with UV resistant jacket is easy to install on any battery charging system. This cable facilitates a variety of mounting schemes and permits easy field wiring. This cable is terminated in a low-profile weatherproof box on the module. The two leads are easily connected to any charge controller or other battery charging application.


· Exceptional performance under low light conditions, shade and high temperature tolerance that offers reliable power in adverse or changeable conditions.
· Class leading efficiency and stable output power delivering reliable high performance for many years.
· Highly transparent tempered glass delivering more power and ensuring high impact resistance and protection against hail, snow, ice and storms.
· Uniform appearance ideal for applications where aesthetics are an important factor.
· 10 years research and over 3 years commercial manufacturing experience has been applied to the development of our CIS thin-film range to ensure that our products have a long and reliable service life backed by a 10 year warranty.

Mechanical Specifications

A torsion and corrosion-resisitant anodised aluminum frame ensures dependable performance, even under harsh weather conditions. Pre-drilled mounting holes are provided for ease of installation.

Outside dimensions: 328mm x 748mm (approx. 12.92" x 29.45")
Thickness (inc. junction box): 35mm (approx. 1.38")
Thickness (exc. junction box): 35mm (approx. 1.38")
Weight: 4.1kg (approx. 9.03 lbs)

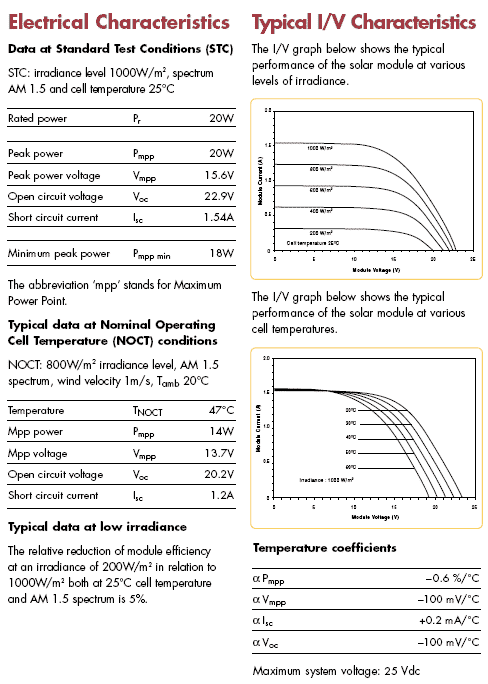

Shell ST20 Electrical & Typical I/V Characteristics
