Trina Solar TSM-240PA05 Solar Panels

Availability: Call For Availability

Features

Trina TSM-240PA05 240 Watt Solar Panel

Great Bang for the Buck

  • 14.7% max efficiency
  • 240W max power output
  • 218.2 PTC Rating
  • 10 Year product warranty
  • 25 Year linear power warranty

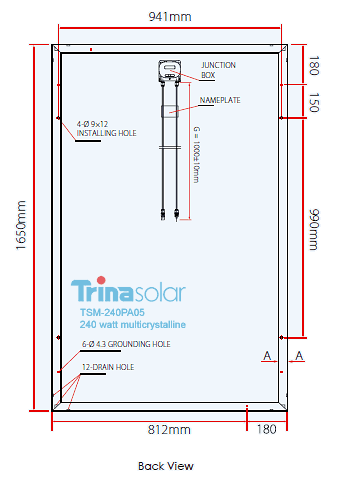

TSM-240PA05 Dimensions

TSM-240PA05

Complete Trina Solar Systems available.

Trina TSM-240PA05 Solar Panel

Double click on above image to view full picture

Zoom Out
Zoom In

Specifications

Trina Solar

Electrical Data TSM-240PA05
Peak Power 240W
PTC Rating 218.2
Power Output Tolerance 0/+3%
Maximum Power Voltage 29.7V
Maximum Power Current 8.10A
Open Circuit Voltage 37.3V
Short Circuit Current 8.62
Module Efficiency 14.7%
Values at Standard Test Conditions STC (air Mass aM1.5, irradiance 1000W/m²,
Cell Temperature 25°C). Power measurement tolerance: ±3%

Manufacturer Specification Sheets

View FileTrina TSM-PA05 US Data Sheet    Size: (668.33 KB)

Details

High Efficiency The Trina TSM-240PA05 solar panel can bear snow loads up to 5400Pa
Wind loads up to 2400Pa
Proven Performance Guaranteed power output
0~+3%
Output Tollrence High performance under low light conditions cloudy days, mornings and evenings
Low Mismatch_loss Manufactured according to international Quality and Environment Management System Standards ISO9001, ISO14001
Superior Durability MC4 photovoltaic connectors increase system reliability

Mechanical Data
Solar cells Multicrystalline 156 × 156mm (6 inches)
Cell orientation 60 cells (6 × 10)
Module dimensions 1650 × 992 × 35mm (64.95 × 39.05 × 1.37 inches)
Weight 18.6kg (41.0 lb)
Glass High transparency solar glass 3.2mm (0.13 inches)
Frame Anodized aluminium alloy
J-Box iP 65 rated
Cables Photovoltaic Technology cable 4.0mm² (0.006 inches²),
  1000mm (39.4 inches)
Connector Original MC4

panel performance
Trina Solar Panel Linear Performance Warranty

About Trina Solar

Founded in 1997, Trina Solar (NYSE: TSL) has established itself as a leader in the solar community with its vertically integrated business model. Our modules and system solutions provide clean solar power in on-grid and off-grid residential, commercial, industrial and utility-scale systems.

With more than 22 offices worldwide, Trina Solar has partnerships with leading installers, distributors, utilities and developers in all major PV markets. Trina Solar is committed to driving smarter energy choices.

Contact us for the latest wholesale discount sale price or to buy a system using the Trina TSM-240PA05 solar panel.
