TrinaSolar TSM-245PA05.05 Solar Panels

Availability: Call For Availability

Quick Overview

Product Highlights:

  • Module can bear snow loads up to 5400Pa and wind loads up to 2400Pa

  • Guaranteed power output 0~+3%

  • high performance under low light conditions cloudy days, mornings and evenings

  • Manufactured according to international Quality and Environment Management System Standards ISO9001, ISO14001

  • Black frame improves aesthetics

  • High Transmission, Low Iron Tempered Glass

  • MC4 photovoltaic connectors increase system


Product Features:

  • 15.0% max efficiency
  • 245W max power output
  • 10 year product warranty
  • 25 Year linear power warranty
  • Black frame provide aesthetic module appearance.
  • Manufactured according to International Quality and Environment Management System (ISO9001, ISO14001)
  • ISO and UL certifications

TrinaSolar TSM-245PA05.05 Solar Panels

Double click on above image to view full picture

Zoom Out
Zoom In

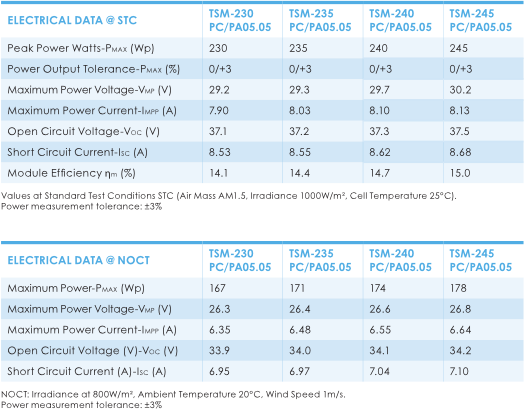

Model Number TSM-245PA05.05
STC Rating 245.0
PTC Rating 222.9
Open Circuit Voltage (V) 37.5
Short Circuit Current (A) 8.68
Frame Color Black
Origin Asia
Power % ± 0/3
(W/ft²) 13.40
Area (ft²) 17.6
Weight (lbs) 41.0

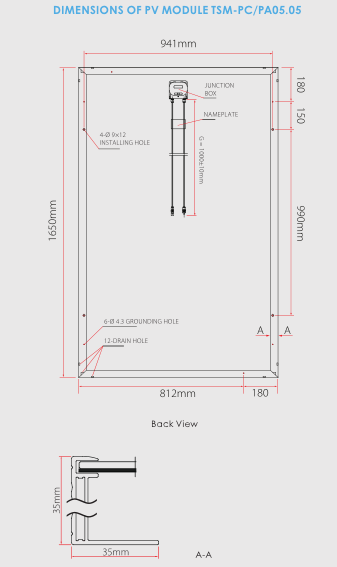

Length (in) 64.95
Width (in) 39.05
Height (in) 1.37

Manufacturer Specification Sheets

View FileTSM-PA05.05 Data Sheet    Size: (588.39 KB)


Founded in 1997, Trina Solar (NYSE: TSL) has established itself as a leader in the solar community with its vertically integrated business model. Our modules and system solutions provide clean solar power in on-grid and off-grid residential, commercial, industrial and utility-scale systems. With more than 22 offices worldwide, Trina Solar has partnerships with leading installers, distributors, utilities and developers in all major PV markets. Trina Solar is committed to driving smarter energy choices.
