SolarWorld Sunmodule Plus SW 275 Mono Solar Panel

Availability: Call For Availability




REC Solar Panels


SolarWorld Sunmodule Plus SW 275 Mono Solar Panel - 275 Watt Monocrystalline

Plus SW 275 Mono

The SolarWorld Plus SW 275 Mono solar panel is known for its reliable positive power performance and high-efficiency. The American craftmanship is apparent when you see the dark monocrystalline cells encased in their aluminum frame.

This solar panel features a 25-year guarantee for performance.

  • 16.40% Module Efficiency
  • For high-performance commercial or residential grid-tie systems
  • CEC rating of 247
  • Monocrystalline cell structure
  • Stable aluminum frame for easy mounting
  • Made in the USA

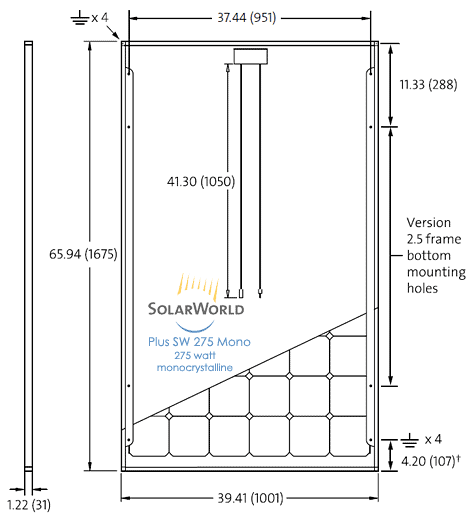

Plus SW 275 Mono Solar Panel Dimensions

Plus SW 275 Mono Dimensions

SolarWorld Sunmodule Plus SW 275 Mono Solar Panel

Double click on above image to view full picture

Zoom Out
Zoom In


Plus SW 275 Mono - 275 Watt Solar Module w/ monocrystalline cell structure
SolarWorld Model Number Plus SW 275 Mono
STC Rating 275.0 Watts
PTC Rating 247
Open Circuit Voltage (Voc) 39.4 Volts
Short Circuit Current (Isc) 9.58 Amps
Frame Color Clear Aluminum
Origin USA
Power Tolerance 0/+5%
Module Efficiency 16.40 %
Area 18.06 ft²
Weight 46.7 lbs.
Length 65.94 in.
Width 39.41 in.
Height 1.22 in.
Solarworld Sunmodule Plus solar system

SolarWorld Sunmodule Plus Mono Solar Systems

Complete residential grid-tie SolarWorld solar systems w/ inverter, mount, MC cables, design schematics and our friendly expert support. click here

Manufacturer Specification Sheets

View FileSolarWorld Sunmodule Plus SW 275 Mono Solar Panel Datasheet    Size: (864.93 KB)
View FileSolarWorld Sunmodule Plus & Protect Installation Manual    Size: (1.26 MB)




REC Solar Panels

Made in the USA
SolarWorld manufactures and produces every cell and assembles every panel their state-of-the-art facility in Hillsboro, Oregon.

SolarWorld Sunmodule Plus SW 275 Mono Solar Panel Review

  • TUV Power controlled: Lowest measuring tolerance in industry.
  • Monocrystalline solar cells: are very efficient for less space per watt
  • Reliable: Every component is tested to meet 3 times IEC requirements
  • Rugged: Designed to withstand heavy accumulations of snow and ice
  • Sunmodule Plus: +5% Positive performance tolerance
  • High-transmissive glass: Glass with anti-reflective coating

World-class quality

Fully-automated production lines and seamless monitoring of the process and material ensure the quality that the company sets as its benchmark for its sites worldwide. Innovative glass technologies make extremely weather-resistant and robust solar modules possible. The Sunmodule Protect offers higher mechanical resilience and a longer service life, and still weighs the same as the Sunmodule Plus.

Positive Power Tolerance

The positive power tolerance guarantees utmost system efficiency. Only modules achieving or exceeding the designated nominal power in performance tests are dispatched. The power tolerance ranges between -0 Wp and +5 Wp.

Sunmodule Plus Mono Warranty

25 years linear performance guarantee and extension of product warranty to 10 years
SolarWorld guarantees a maximum performance degression of 0.7% p.a. in the course of 25 years, a significant added value compared to the two-phase warranties common in the industry. In addition, SolarWorld is offering a product warranty, which has been extended to 10 years.

Contact us for the latest standard or custom grid-tie SolarWorld solar panel systems at a wholesale price.

SolarWorld Plus SW275 Mono Certifications

Plus SW 275 Mono certifications

Contact us for low wholesale discount pricing, solar panel systems or SolarWorld Plus SW 275 Mono reviews.
