Solis 7.6kW Plus Inverter Specifications
| Model | Solis-1P7.6K-4G-US |
| Application | Residential |
| Rated Output Power | 7.6 kW |
| Max Efficiency | 97.8% (CEC: 97.5%) |
| MPPT Channels | 3 independent MPPTs |
| Max Input Current | 14A per string |
| Max Short Circuit Current | 22A per string |
| MPPT Voltage Range | 100-500V |
| Max Input Voltage | 600V DC |
| Rated Input Voltage | 330V |
| Max Output Current (240V) | 31.7A |
| Max Output Current (208V) | 36.5A |
| Operating Temperature | -13°F to 140°F |
| Dimensions | 13.1×28.8×9.8 in |
| Weight | 20.5 kg (45.2 lb) |
| Warranty | 10 Years Standard |
Complete roof mounted solar systems engineered for durability and ease of installation. Our premium kits include IronRidge XR rail systems, compatible with all our solar panels and available for all roof types, with special options for tile, flat, and metal roofs at competitive wholesale pricing.
Solis 1P7.6K-4G-US-PLUS 7.6kW Single Phase Solar Inverter
SKU SOLIS-1P7.6K-4G-US-PLUS-RES

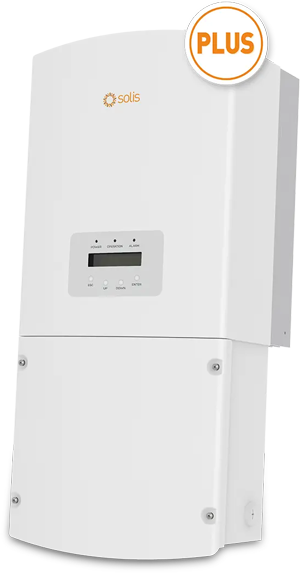

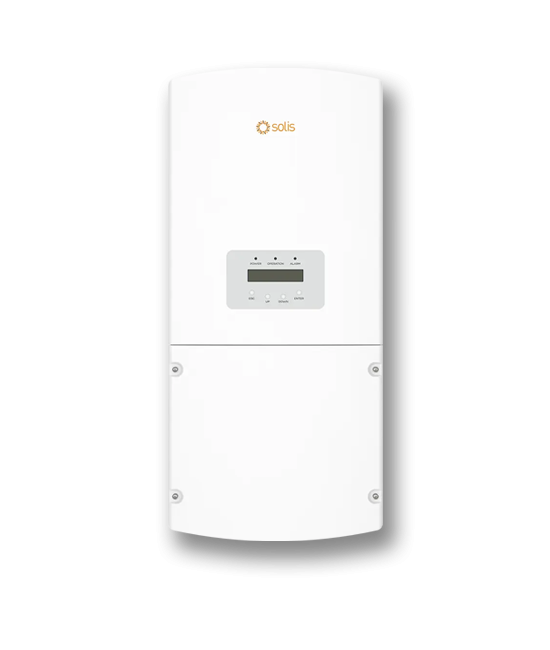

Solis 7.6kW Single Phase Grid-Tied Inverter
The Solis 1P7.6K-4G-US-PLUSrepresents proven single-phase string inverter technology with over a decade of field deployment in North American markets. This 7.6kW unit features four independent MPPT channels with 14A string current capability, enabling compatibility with high-power and bifacial PV modules while maximizing design flexibility in complex installations. The inverter achieves 97.8% maximum efficiency with 97.5% CEC efficiency ratings.
Advanced safety features include integrated AFCI protection and built-in module-level rapid shutdown transmitters compatible with APS and Tigo MLRSD systems. UL3741 and PVRSS compliance enables simplified installation procedures when paired with appropriate racking systems and array-level shutdown devices.
Solis-1P7.6K-4G-US-PLUS Inverter Features
- Superior Efficiency: 97.8% maximum efficiency with 97.5% CEC efficiency delivers optimal energy conversion and reduced system losses
- Advanced MPPT Design: Four independent MPPT channels with 100-500V range enable complex array configurations and shadow mitigation
- Integrated Safety Protection: Built-in AFCI protection and DC arc-fault detection proactively reduce fire risk in residential installations
- Professional Monitoring: RS485 communication with optional cellular/WiFi connectivity and module-level monitoring capabilities
- Climate Resilient: -25°C to 60°C operating range with natural cooling design for reliable performance in diverse conditions
Solis-1P7.6K-4G-US-PLUS Certifications
The Solis-1P7.6K-4G-US-PLUS meets comprehensive safety and performance standards for residential and commercial installations across North America.
- UL1741SB - Inverters, Converters, Controllers and Interconnection System Equipment for Use With Distributed Energy Resources
- IEEE 1547-2018 - Standard for Interconnection and Interoperability of Distributed Energy Resources
- UL1699B - Arc-Fault Circuit-Interrupters
- UL1998 - Software in Medical Devices
- California Rule 21 - Smart Inverter Requirements for Distributed Energy Resources
- HECO Rule 14H - Hawaiian Electric Company Interconnection Standards
- NEC 690.12-2020 - Rapid Shutdown of PV Systems Requirements
- CAN/CSA C22.2 107.1-1 - General Use Power Supplies Canadian Standards
- FCC Part 15 Class B - Radio frequency emission compliance for residential use
Solis-1P7.6K-4G-US-PLUS Single Phase Residential Inverter Review
The Solis-1P7.6K-4G-US-PLUS delivers professional-grade performance with transformerless topology and advanced MPPT algorithms optimized for North American grid conditions. The four independent MPPT channels with 14A string current capability accommodate modern high-power modules including bifacial technologies, while the 100-500V MPPT range provides excellent design flexibility for various roof configurations and shading conditions.
The built-in module-level rapid shutdown transmitter supports both APS and Tigo MLRSD ecosystems, enabling UL3741 compliance for simplified installations. Professional features include optional revenue-grade metering with ANSI C12.20-2010 compliance, comprehensive communication protocols, and robust TYPE 4X environmental protection suitable for outdoor installations in challenging climates.
