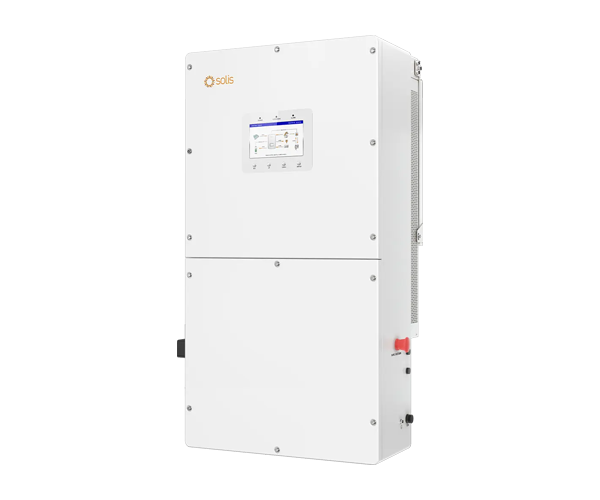

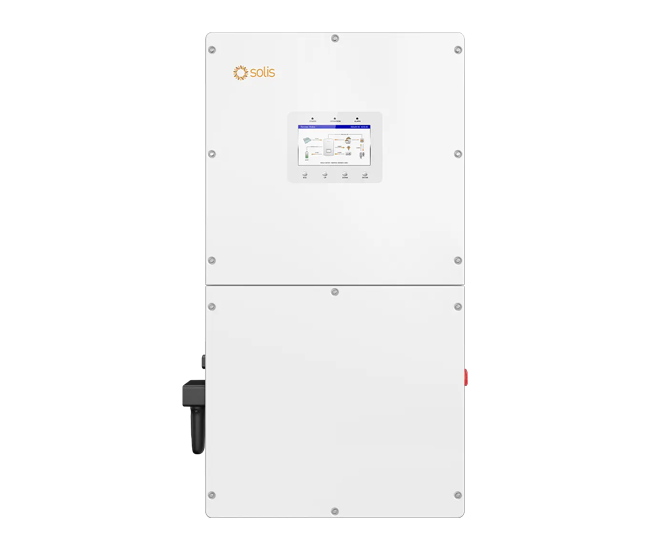

Solis S6-EH3P30K03-LV-YD-H-US 30kW Three Phase Inverter

Solis S6-EH3P30K03-LV-YD-H-US-APST 30kW 208V Hybrid Inverter

The Solis S6-EH3P30K03-LV-YD-H-US-APST is a 30 kW three-phase hybrid energy storage inverter from the Solis Solarator commercial series, purpose-built for low-voltage 208 V services common to light-commercial and multi-tenant buildings. It delivers 26 kW / 27.5 kW / 30 kW of rated output at 120/208 V, 127/220 V, or 139/240 V, accepts up to 60 kW of PV across 3 MPPTs, and supports 21 A string input current for today’s high-power modules. The APST version ships with an integrated APsmart SunSpec-certified rapid shutdown transmitter for NEC 690.12-2020 compliance.

Storage and generator integration are built in: two independent battery ports handle high-voltage Li-ion batteries from 150-800 V (100-314 Ah modules) with 80 A charge/discharge per port, 160 A total. A dedicated generator interface, battery reserve management, and intelligent load prioritization keep critical loads running through grid instability, with on/off-grid transitions in under 10 ms and 160% overload for 2 seconds to start heavy loads off-grid.

Solis S6-EH3P30K03-LV-YD-H-US-APST Features

• Built for 208 V Grids: Rated 26-30 kW three-phase output on 120/208 V, 127/220 V, and 139/240 V low-voltage services, with up to 60 kW of PV input.
• Dual HV Battery Ports: Two independent 150-800 V Li-ion battery ports, 80 A each (160 A total fast charging), compatible with 100-314 Ah battery modules.
• Generator Ready: Dedicated genset interface with three-in-one integration of on-grid PV, wind, and diesel generators, plus sub-10 ms on/off-grid transfer.
• APsmart Rapid Shutdown: Integrated SunSpec-certified APST transmitter meets NEC 690.12-2020 module-level rapid shutdown requirements out of the box.
• AFCI 2.0 + Type 4X: Integrated arc-fault protection, DC Type II / AC Type II surge protection, and a Type 4X enclosure rated -13°F to 140°F.
• SolisCloud Monitoring: 7-inch LCD with Bluetooth app plus SolisCloud remote control, AI optimization, and instant troubleshooting from one platform.

Solarator: Solar, Storage, and Generator in One

The Solarator platform supports both DC and AC coupling for flexible retrofits and system expansions, peak shaving and demand management, anti-reverse-flow control, and dynamic reactive power compensation to reduce reactive power charges. Multiple units parallel up to 300 kW for growing sites. Every unit is backed by a 10-year standard Solis warranty, with extended warranty options available through Solar Electric Supply.
