Solis S6-EH3P60K04-NV-YD-H-US-APST

Model	S6-EH3P60K04-NV-YD-H-US (21A) - APST
Inverter Type	Three-Phase Hybrid Energy Storage Inverter (Transformerless)
Rated Output Power	60 kW (60 kVA)
Recommended Max. PV Array	100 kW
MPPTs / Strings	4 / 8
Max. Input Current	4 x 42 A (21 A per string)
Battery Type / Voltage	Li-ion, 150-800 V (100-314 Ah modules)
Battery Charge / Discharge	84 A x 2 ports (168 A total)
Backup Transfer Time	< 10 ms (160% overload for 2 s off-grid)
Generator Input	60 kW dedicated port, 72.2 A
Max. Efficiency / CEC Efficiency	97.49% / 97.27%
Rapid Shutdown	Integrated APsmart SunSpec-certified transmitter (APST)
Communication	Wi-Fi + LAN + Bluetooth, 2 x CAN-BMS, RS485, DRM; Optional: 4G
Dimensions (W x H x D)	22.05 x 41.34 x 13.64 in
Weight	195.77 lbs
Enclosure	Type 4X, intelligent redundant fan cooling
Compliance	UL 1741 SB, IEEE 1547-2018, UL 1699B, UL 1998, FCC Part 15 Class B, CA Rule 21, HECO Rule 14H, NEC 690.12-2020, CAN/CSA C22.2 107.1-1
Warranty	10-Year Standard

MAPPS^® Industrial Off-Grid Solar Systems

We supply complete stand-alone solar power + storage systems engineered for remote commercial and industrial applications. Pre-packaged systems include photovoltaic modules, sealed batteries, rugged outdoor enclosures, charge controllers, and lightning protection. ETL certified Class I Div II systems available.

Remote / Industrial Solar Systems | Class 1 Division 2 Solar Systems

Solis S6-EH3P60K04-NV-YD-H-US-APST 60kW 3-Phase Inverter

Name: Solis S6-EH3P60K04-NV-YD-H-US-APST 60kW 3-Phase Inverter
SKU: SOLIS-S6-EH3P60K04-NV-YD-H-US-APST-COM

SKU SOLIS-S6-EH3P60K04-NV-YD-H-US-APST-COM

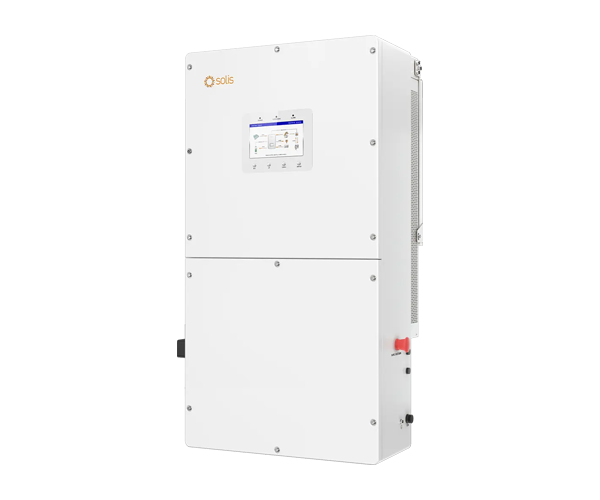

Solis S6-EH3P60K04-NV-YD-H-US-APST 60kW 480V Hybrid 3-Phase Inverter

The Solis S6-EH3P60K04-NV-YD-H-US-APST is the flagship 60 kW three-phase hybrid energy storage inverter of the Solis Solarator commercial series, built for 277/480 V services. It accepts up to 100 kW of PV across 4 MPPTs with 21 A string input current, charges high-voltage Li-ion batteries at up to 168 A through two independent 84 A battery ports, and integrates a dedicated generator interface, a complete solar + storage + genset platform for commercial and industrial facilities. The APST version includes an integrated APsmart SunSpec-certified rapid shutdown transmitter for NEC 690.12-2020 compliance.

With 97.49% max efficiency (97.27% CEC), sub-10 ms on/off-grid transitions, 160% overload for 2 seconds in off-grid mode, and multi-unit parallel operation up to 600 kW, the Solarator 60K anchors everything from single-building backup to campus microgrids and genset-hybrid installations in weak-grid areas.

Solis S6-EH3P60K04-NV-YD-H-US-APST Features

60 kW, 100 kW PV Input: Rated 60 kW / 60 kVA three-phase output at 72.2 A with up to 100 kW of PV across 4 MPPTs and 8 strings, maximizing solar utilization.
168 A Fast Battery Charging: Two independent 150-800 V Li-ion battery ports at 84 A each support fast charging and flexible capacity expansion with 100-314 Ah modules.
Generator Ready: Dedicated 60 kW genset interface with three-in-one integration of on-grid PV, wind, and diesel generators for weak-grid and hybrid scenarios.
Parallel to 600 kW: Multi-unit parallel operation up to 600 kW, with the Solis STS cabinet recommended for systems over 6 units.
APsmart Rapid Shutdown: Integrated SunSpec-certified APST transmitter meets NEC 690.12-2020 module-level rapid shutdown requirements out of the box.

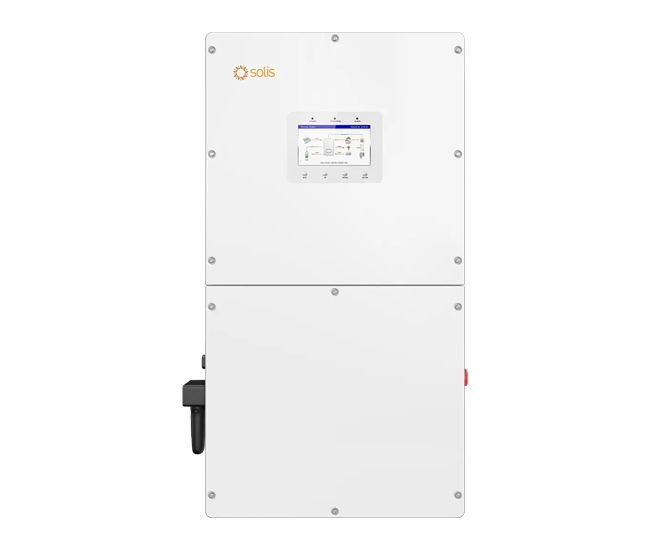

SolisCloud Monitoring: 7-inch LCD with Bluetooth app plus SolisCloud remote control, AI optimization, and instant troubleshooting from one platform.

Solarator: Solar, Storage, and Generator in One

The Solarator platform supports both DC and AC coupling for flexible retrofits and system expansions, battery reserve management, intelligent load prioritization, peak shaving and demand management, anti-reverse-flow control, and dynamic reactive power compensation to reduce reactive power charges. AFCI 2.0 and DC/AC Type II surge protection are integrated. Every unit is backed by a 10-year standard Solis warranty, with extended warranty options available through Solar Electric Supply.

Attachments Details

Solis S6-EH3P60K04-NV-YD-H-US-APST Technical Review

The Solis S6-EH3P60K04-NV-YD-H-US-APST delivers 60 kW / 60 kVA of three-phase output at 277/480 V with a 72.2 A rated current while accepting up to 100 kW of PV, a 1.67x DC/AC ratio, through 4 MPPTs and 8 strings rated for 21 A string current. Its two independent battery ports charge 150-800 V Li-ion banks at 84 A each, 168 A combined, the fastest battery charging in the Solarator lineup, and a dedicated 60 kW generator port with battery reserve management and intelligent load prioritization carries critical loads through outages with sub-10 ms on/off-grid transfer and 160% / 2 s overload capacity. Efficiency reaches 97.49% max (97.27% CEC), protection includes AFCI 2.0, DC/AC Type II surge protection, and an integrated APsmart SunSpec rapid shutdown transmitter (NEC 690.12-2020), all in a Type 4X fan-cooled enclosure at 195.77 lbs, parallel-capable to 600 kW and backed by a 10-year standard warranty.

Comparing commercial hybrid options? See the Sol-Ark 60K-3P 480V hybrid inverter, or the smaller Solis Solarator 30 kW 480 V model.
