Enphase Combiner 6C Specifications

Model Number	X-IQ-AM1-240-6C
System Voltage	120/240 VAC, 60 Hz
Voltage Range	240 VAC~/±20% Split-phase
Internal DER Busbar Rating	200 A
Internal PV Busbar Rating	100 A
Max Continuous DER Current	160 A
Max Continuous PV Current	80 A
Max Continuous Battery Current	2 × 59 A
Max Backfeed Protection	125 A
Operating Temperature	-40°F to 115°F (-40°C to 46°C)
Dimensions (H × W × D)	26.8" × 18.1" × 8.7" (680 × 460 × 220 mm)
Warranty	15 years (5 years cellular modem)

Residential Enphase Roof Mount Kit Prices

Complete roof mounted solar systems engineered for durability and ease of installation. Our premium kits include IronRidge XR rail systems, compatible with all our solar panels and available for all roof types, with special options for tile, flat, and metal roofs at competitive wholesale pricing.

View Latest Roof Mount System Prices

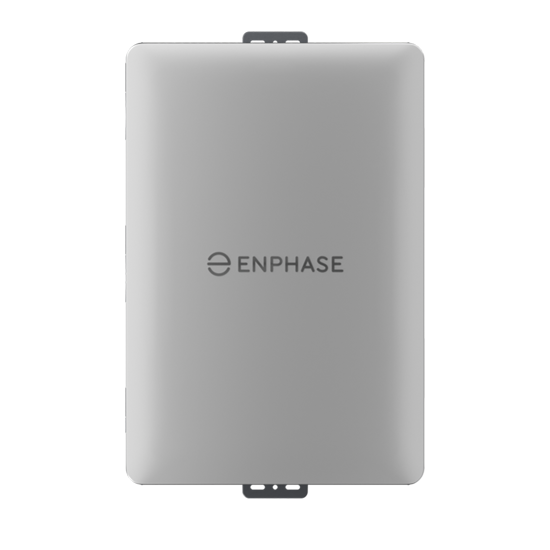

Enphase IQ Combiner 6C

Name: Enphase IQ Combiner 6C
SKU: ENPHASE-IQCOM-6C-BOX

SKU ENPHASE-IQCOM-6C-BOX

The Enphase IQ Combiner 6C

The Enphase IQ Combiner 6C is a smart interconnection solution that consolidates PV, battery, and EV charging equipment into a single NEMA 3R enclosure for residential solar installations. With a 200A DER busbar supporting up to 160A continuous current and integrated spaces for four PV breakers, two 80A battery breakers, and one EV charger breaker, it streamlines electrical connections while providing revenue-grade metering accuracy of ±0.5% through pre-installed current transformers.

Designed for installation simplicity and system reliability, the IQ Combiner 6C features single-stud mounting, pre-wired rapid shutdown compliance, and integrated load control capabilities for managing heavy loads during backup operations. The built-in IQ Gateway with Enphase Mobile Connect cellular modem ensures consistent cloud connectivity and remote monitoring.

IQ Combiner 6C Features

Integrated IQ Gateway & Controller: Built-in gateway provides revenue-grade production and storage metering with cellular connectivity through Enphase Mobile Connect.
Pre-Installed Rapid Shutdown Device: UL 489 certified breaker pre-installed for NEC 690.12 rapid shutdown compliance, eliminating the need for additional external disconnect switches.
Single Stud Installation: Mounts with just two screws on a single stud with multiple conduit entry options for flexible installation configurations.
Built-In Load Controller: Integrated load controller with 80A breaker space enables monitoring and control of heavy loads such as water heaters and HVAC systems with automatic load management during backup operations.

Part of the Enphase Energy System

The IQ Combiner 6C integrates seamlessly with the complete Enphase Energy ecosystem to deliver backup-capable residential solar power systems.

Compatible With:

Attachments Details

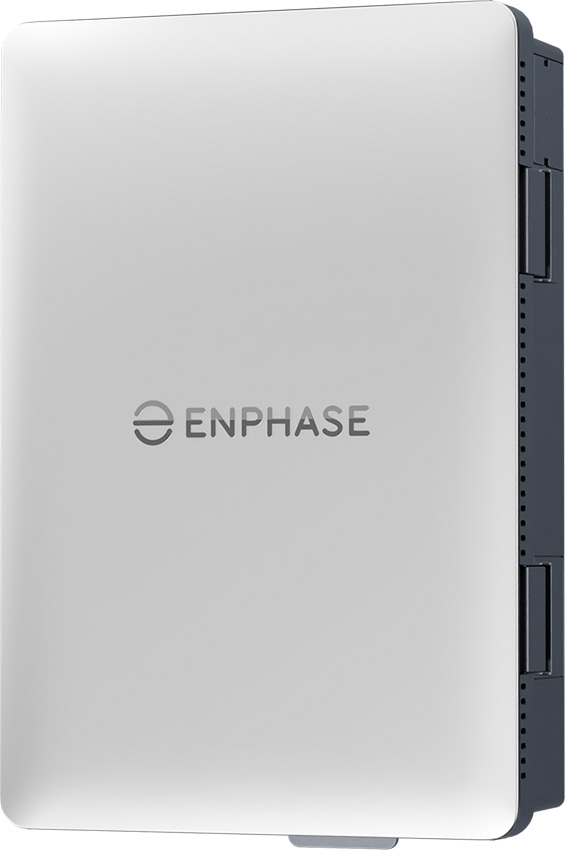

Enphase IQ Combiner 6C Review

The IQ Combiner 6C delivers comprehensive system integration with its 200A DER busbar supporting up to 160A continuous current and 100A PV busbar handling 80A continuous PV current. The unit accommodates up to four 20A microinverter breakers, two 80A battery breakers, and one 60A EV charger breaker, providing complete electrical consolidation for residential installations.

Installation advantages include single-stud mounting with two-screw attachment, multiple conduit entry points, and pre-installed UL 489 rapid shutdown device eliminating external disconnect requirements in accessible outdoor locations. The NEMA 3R enclosure with solar shield and active cooling operates reliably in temperatures from -40°F to 115°F, while integrated cellular connectivity through Mobile Connect ensures consistent cloud communication.
