LG LG305N1C-B3 NeON Solar Panel
Skip to the beginning of the images gallery
LG305N1C-B3 specifications
Model Number LG305N1C-B3
STC Rating 305.0 Watts
PTC Rating 276.9
Open Circuit Voltage (Voc) 40.0 Volts
Short Circuit Current (Isc) 10.1 Amps
Frame Color Black
Origin Korea
Power Tolerance -0 / +3%
Module Efficiency 18.6 %
Area 17.8 ft²
Weight 37 lbs.
Length 64.57 in.
Width 39.37 in.
Height 1.38 in.

LG LG305N1C-B3 Solar Panel

SKU LG305N1C-B3

This LG Product is Discontinued

Please note: This LG product is no longer available. For help finding a suitable replacement, please contact us or browse our current wholesale solar panel specials for current stock availability.

LG Solar Mono X NeoN
NeoN solar panel
Double-Sided Cells
The rear of the cell used in the premium quality Mono X® NeON LG305N1C-B3 is designed so the light beam reflected from the rear of the module is reabsorbed to generate a great amount of additional power.

LG Solar LG305N1C-B3 Solar Panel

  • Solar module using Mono X™ NeoN monocrystalline cells
  • The LG305N1C-B3 is very efficient and has an attractive black frame.
  • The LG N1C Series has the world's most rigorous product assurance.
    Nominal power starts at 0%.
  • LG has 25 years of thorough research and development. LG has developed a solar cell that is aesthetically pleasing, efficient and reliable.

lg solar cell technology

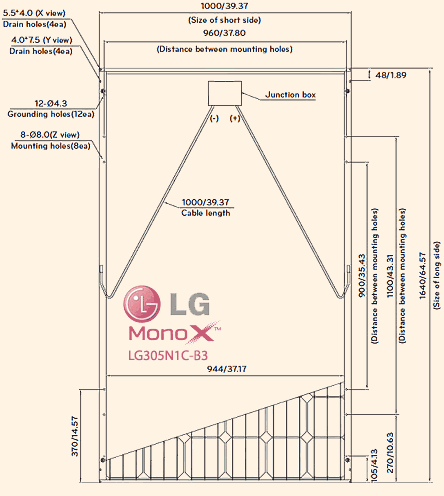

LG305N1C-B3 Dimensions

LG LG305N1C dimensions

Attachments Details

Solar Electric Supply supplies wholesale commercial solar systems and discount residential solar systems.

 NeoN solar panels

LG’s High Efficient Cell Technology
Driven by LG’s own N-type technology, LG’s high-efficiency Mono X NeoN solar panels will provide customers with high economic benefits. Mono X® NeON uses the Nano-level process control predominant in semiconductor processing process, which ensures less electric loss from internal defects.

Light and Robust
With a weight of just 16.8 kg, LG305N1C-B3 solar modules are proven to demonstrate outstanding durability against external pressure up to 5400 Pa.

Reliable Warranties
LG stands by its products with the strength of a global corporation and sterling warranty policies. LG offers a 10 year product limited warranty and a 25 year limited linear output warranty.

Convenient Installation
LG modules are carefully designed to benefit installers by allowing quick and easy installations throughout the carrying, grounding, and connecting stages of modules.

100% EL Test Completed
All LG modules pass Electroluminescence inspection. This EL inspection detects cracks and other imperfections unseen by the naked eye.

Positive Power Tolerance
LG provides rigorous quality testing to solar modules to assure customers of the stated power outputs of all modules, with a positive nominal tolerance starting at 0%.

 warranty



Certifications

Certified Laboratory

LG developed the core standard specifications for a solar module and became an official test laboratory certified by TÜV Rheinland and Underwriters Laboratories.

lg module info

No Longer Available
