LG NeON H+ Black Review
Model Number LG405N3K-V6
STC Rating 405.0 Watts
PTC Rating 376.6
Open Circuit Voltage (Voc) 45.3 Volts
Short Circuit Current (Isc) 11.20 Amps
Frame Color Black
Origin USA
Power Tolerance -0 / +3%
Module Efficiency 20.7%
Area 21.2 ft²
Weight 38.6 lbs.
Length 74.0 in.
Width 41.0 in.
Height 1.57 in.

Low LG Solar System Prices

View the latest low prices on residential solar systems.
Perfect for the solar contractor or handy homeowner.

LG Solar Panel System Prices

(877) 297-0014

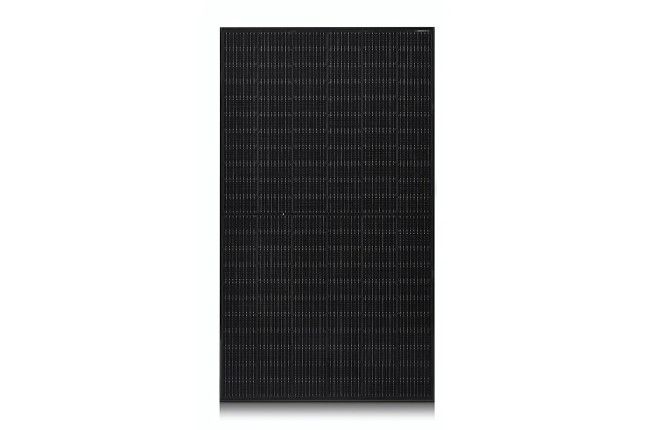

LG NeON H+ Black LG405N3K-V6

SKU LG405N3K-V6
NeON H+ Black

LG NeON H+ Black LG405N3K-V6 405W Solar Panel

NeON H+ Black solar panel frame
Enhanced Performance
LG's Gap-free design allows for more cells to fit in a given space for even more efficiency, performance and power-delivery stability.

The LG NeON H+ Black LG405N3K-V6 brings together two innovative technologies into one innovative solar panel. LG NeON® H+ Black premium solar panels are LG’s first to feature cells with gapfree technology as well as LG’s award-winning Cello Technology—which means they look good and perform even better.

NeON H+ Black is designed with cells that overlap by 0.5 millimeters, eliminating the gap altogether which allows more cells to fit in the same amount of space. This innovation also protects the wiring connecting the cells from impact.

Superior Durability and Efficiency

Compared to other gapless solar panels on the market, NeON H+ Black is differentiated by the superior durability and efficiency offered by LG’s unique N-type half-cut cells. With an exceptional temperature coefficient of -0.33 percent per degree Celsius, the N-type half-cut cells are less adversely affected by hot temperatures than other gapless solar panels on the market.

NeON H+ Black Features

NeOn H+ Performance

Enhanced Performance Warranty
After 25 years of use, the LG NeON® H+ Black is guaranteed to provide at least 90.6% of initial performance.

NeOn H+ Quality

Reliable Quality
Reliable and proven quality through rigorous testing.

NeOn H+ Design

Sleek Rooftop Design
Designed to make the entire module look black, providing a sleek, modern design that blends in seamlessly with the rooftop.

NeOn H+ Warranty

Industry-Leading Product Warranty
LG offers an industry-leading, 25-year limited product warranty.

LG NeON H+ Black certifications

LG405N3K-V6 Certifications

  • IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016
  • UL 61730-1:2017, UL 61730-2:2017
  • IEC 61701 : 2011 Severity 6 (Salt mist corrosion test)
  • IEC 62716 : 2013 (Ammonia corrosion test)
  • ISO 9001, ISO 14001, ISO 50001
  • Module Fire Performance Type 2 (UL 1703)
  • Fire Rating Class C (UL 790, ULC/ORD C 1703)
LG 25 year solar panel warranty

LG NeON H+ Black Solar Panel Warranty

25 Year Product Warranty

25 Year Limited Power Output Warranty
Linear warranty of 98.5% in the first year. After 1st year: 0.33% annual degration. 90.6% for 25 years.

LG NeON H+ Black LG405N3K-V6 405W Solar Panel Review

NeON H solar cell technology

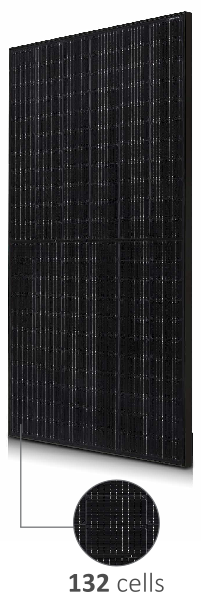

The high-efficiency cell structure used in the LG NeON H+ Black LG405N3K-V6 generates a best-in-class output of 405W from its 132 cells and can help meet a household’s power needs even in low-light winter conditions.

High Performance More Power Generation
LG NeON H+ Black solar panel generates a best-in-class output of 405W from its 132 cells and can help meet a household’s power needs even in low-light winter conditions.

Newly Developed Gap Free Technology
Performance is further boosted by the Gap-free design which reduces the distance energy must travel by eliminating the empty space between cells.

More Cells better Protection
NeON H+ Black is designed with cells that overlap by 0.5 millimeters, eliminating the gap altogether which allows more cells to fit in the same amount of space. This innovation also protects the wiring connecting the cells from impact.

Guaranteed Performance
Like other LG NeON H products from LG, NeON H+ Black panels are guaranteed to operate at 90.6 percent of their original performance even after 25 years of continuous use.

NeON H+ solar panel frame durability
With a reinforced frame design, all LG NeON H+ modules are designed to endure a front load of up to 6000 Pa, and a rear load of up to 5400 Pa.

LG Life's Good

LG NeON H+ Solar Panel Quality Assurance

Quality-assurance of LG Solar NeON H+ Prime solar panels is a top priority, that's why their solar panels are created using the most technologically advanced processes available. LG's state-of-the-art manufacturing facilities are designed to produce high quality, high performance cell panels that come ready to perform.

LG embarked on a solar energy source research program in 1985. This research leading to modern LG solar panel technology was supported by LG Group's rich experience in the semi-conductor, LCD, chemistry and materials industry. LG released the first Mono X series solar panels to the market in 2010. LG Mono X solar panels were exported to 32 countries in the following 2 years thereafter. In 2013, LG NeON (previously known as Mono X NeON) won the "Intersolar Award", which proved LG is the leader of innovation in the industry. With the LG NeON H+ Black Series, many significant refinements have been made to be able to provide some of the most efficient, reliable and easy to install solar panels on the photovoltaic market today.
