SOLAR POWER FOR REMOTE APPLICATIONS
|Nominal System Voltage||12 VDC|
|Solar PV Module||2X SES 490J 12 Vdc 90 Watts each|
|Solar Module Certifications||UL 1703, Class C Fire Rating|
|PV Module Mount||SPM2-Multi side of pole mount|
|Battery Type||2X Deka Solar 8G30-HFL-DEKA Gel Cell|
|Battery Bank Capacity||12V 216 Ahr at 100 hour discharge rate|
|Enclosure Rating||NEMA 3R|
|Charge Controller||SunSaver SS-20L-12|
|Controller Certifications||ETL Listed to UL 1741 & CSA C22.2 No. 107.1-01|
|MAPPS System Weight w/ Batteries||229 lbs.|
MAPPS 180 Watt 12VDC 216Ahr Pole-Mounted Solar Battery SystemSKU MAPPS-180-216-12
Reliable Power Anywhere with Our 180W 216Ahr Pole-Mounted System
Designed for long life in
harsh weather climates.
When it comes to selecting a solar power system, MAPPS® is a standout choice with its robust features, superior reliability, and proven performance. Designed to deliver a sustainable power supply for any remote off-grid location, these systems are pre-wired, easy to install, and adaptable to an array of outdoor applications. MAPPS® systems are renowned for their reliability, cost-effectiveness, and low maintenance, providing a seamless solution to your diverse outdoor power needs.
MAPPS® systems are built tough, capable of withstanding the harshest weather conditions, from the cold of the North Slope of Alaska to the heat of the Arabian Desert. The photovoltaic modules used in these systems exceed Jet Propulsion Laboratory Block V durability tests, are UL listed, and rated for Class I Division II hazardous areas, ensuring a design life of 25 to 40 years.

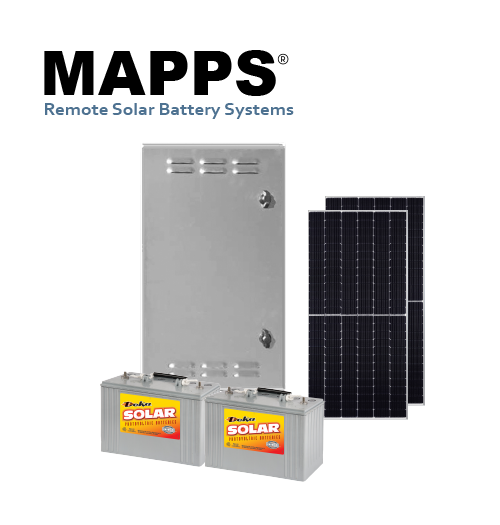

MAPPS-180-216-12 Solar Battery Systems Include
- 2x 90W SES 490J Solar Panel w/ mount
- 1X NEMA 3R Outdoor Battery & Control Enclosure
- 2x Deka Solar 8G30-HFL-DEKA Gel Cell Battery
- 1x SPM2-Multi side of pole mount
- Charge control load center with
pre-cut color coded wiring harness included.
- Locking Compression Latches w/ 5/16" + 1/4" Shackles
- DC to DC converters for 12, 24, 48 VDC loads
- DC to AC inverter for 120 VAC loads
- Pre-wired PoE Power over Ethernet injectors
- Radio shelf for additional load equipment
- We can custom prewire many designs, CONTACT US today for details
MAPPS System Benefits
Engineered with the industry's finest components, each element within the MAPPS® system undergoes thorough testing, ensuring reliability in even the harshest environments.
By eliminating the need for generators and trenching, the MAPPS® system offers a cost-effective solution for your power needs.
The system comes pre-wired, making the installation process a breeze. Even the most remote off-grid sites can benefit from this user-friendly design.
UL Listed components
MAPPS® systems contain components that are UL listed, assuring safety and performance to the highest standards.
MAPPS® systems are made in the USA and qualify for Buy America programs
