SES MAPPS Off-Grid Solar Panel System

Model Number MAPPS-380-265-24
Nominal System Voltage 24 VDC
Solar PV Module

2X SES 4200J 24 Vdc 200 Watts ea.

Solar Module Certifications UL 1703, Class 1 Division 2, Group A, B, C, D, Class C Fire Rating
PV Module Mount SPM2-190 side of pole mount
Battery Type 2X Deka Solar 8G8D Gel Cell
Battery Bank Capacity 24V 265 Ahr at 100 hour discharge rate
Enclosure Model AL-POL-2-8G8DN
Enclosure Design NEMA 3R
Charge Controller SunSaver SS-20L-24
Controller Certifications ETL Listed to UL 1741 & CSA C22.2 No. 107.1-01
MAPPS System Weight w/ Batteries 469 lbs.
Origin USA
List Price $6,242.00

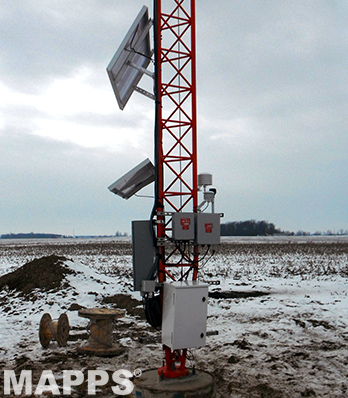

tower-mounted enclosure solar system
Pole Mounted Solar Systems

Skip to the beginning of the images gallery

400 Watt 24VDC 265Ahr Off-Grid Enclosure Solar System

In stock
SKU
MAPPS-380-265-24
remote off-grid battery enclosure solar system
remote off-grid solar panel systems
MAPPS off-grid enclosure solar system logo

Pole Mounted Enclosure Solar Systems

400 Watt 24VDC 265Ahr Off-Grid Enclosure Solar System

2 solar panel system
Enclosure solar system designed for long life in harsh weather climates.

Reliable Weatherproof Off-Grid Solar System

This highly reliable, durable, and rugged 380W two-battery system is designed to require minimal maintenance with a 20 year design life (with battery replacements approximately every five to seven years). Our systems are assembled and tested following strict QA/QC procedures, and are designed to IEEE Standard 1562: Guide for Array and Battery Sizing in Stand-Alone Photovoltaic (PV) Systems.

MAPPS off-grid enclosure solar systems include components with the highest quality standards and qualify for Made in USA, Buy America and ARRA. MAPPS systems are also available with UL Listing or Class I Div 2 approval.

400W 24V Off-Grid Enclosure Solar System

200W 24V solar panel200W 24V solar panel
2x 200W 24V Solar Panels w/ mount
two 8G8D solar gel batteries
2x 256Ahr Sealed Gel Cell Batteries
charge controller Charge control load center with pre-cut color coded wiring harness included.
lock for battery box
enclosure box lockable latch
The compression latch for locking includes a 5/16" and 1/4" shackle.
custom pre-wired AC-DC charger option
We can pre-wire many options.

Solar Panel

  • High efficiency crystalline silicon
  • Meets JPL Block V durability criteria
  • Tempered glass and aluminum frame
  • Conduit ready junction box or MC 4 connectors

Gel Cell Sealed Batteries

  • Sealed maintenance-free
  • Excellent deep-cycling performance
  • Immobilized electrolyte, non-spillable
  • Transports easily and safely

System Enclosure

  • Mill finish Aluminum construction
  • Powder coated enamel white option
  • Filtered louvered vents
  • Insulation Kit for battery optional
  • Controller mounted on DIN rail with array/battery/load breakers

Balance of System Components

  • Heavy duty aluminum mounting structure
  • Controller with low voltage battery protection
  • Optional 130 and 170 MPH available
  • Color-coded, pre-cut wiring harness
  • Easy-to-follow manual/system schematics

Optional Components

  • DC to DC converters for 12, 24, 48 VDC loads
  • DC to AC inverter for 120 VAC loads
  • Radio shelf for additional load equipment
  • Pre-wired PoE Power over Ethernet injectors
solar contractors on utility transmission tower

MAPPS Off-Grid Solar Power System Applications

No matter what extreme environment on Earth: arctic, desert, coastal or tropical, this corrosion-resistant solar power system is ideal for your next remote off-grid solar project.

Solar battery powered examples can include:

  • MDS SS9 radio
  • RR Crossing LED flashing sign
  • DNGP Positioner (in-use)
  • Fan (Phannenberg cooling)
  • Radio (Aprisa SR+) (Transmit)
  • ScadaPack 32 (in-use)
  • 4G LTE ruggedized gateways
  • Digi Transport WR31 (Xmt/Rcv)
  • UPS battery backup systems
  • Westlock (limit switches)
  • Contact us with your solar powered application today! OEM, Distributor, System Integrator, Government, VAR, Dealer, Contractor, MWBE, International, and Reseller discounts available.

    Call toll-free: (877) 297-0014

    Contact us for availability, pricing and freight quote

    Contractor and commercial discounts available

    Specials and multi-pallet/container discounts

    Complete residential and commercial grid-tie Solar kits

    Design assistance, Permit submittals, Schematics

    Details

    MAPPS 400W 256AHr Off-Grid Pole-Mounted Solar System Review

    pole mounted 2 battery enclosure solar system
    off-grid solar panel system
    Pole-Mounted Off-Grid Solar Systems

    Solar Electric Supply specializes in supplying dealer, contractor, government and industrial accounts worldwide with reliable, cost-effective Class 1 Division 2 solar electric power solutions.

    Pole Mounted Solar Systems  ·  Contractor Discounts Available



    Contact us toll-free: (877) 297-0014 for expert assistance and wholesale prices for the SES MAPPS 400W 24 Volt Off-Grid Solar System.
